Electrical Component Locator: Grounds
GROUNDS
| Component | Component Location |
|---|---|
| BH | Under left center pillar. |
| BI | Under right center pillar. |
| BJ | At left side of back door. |

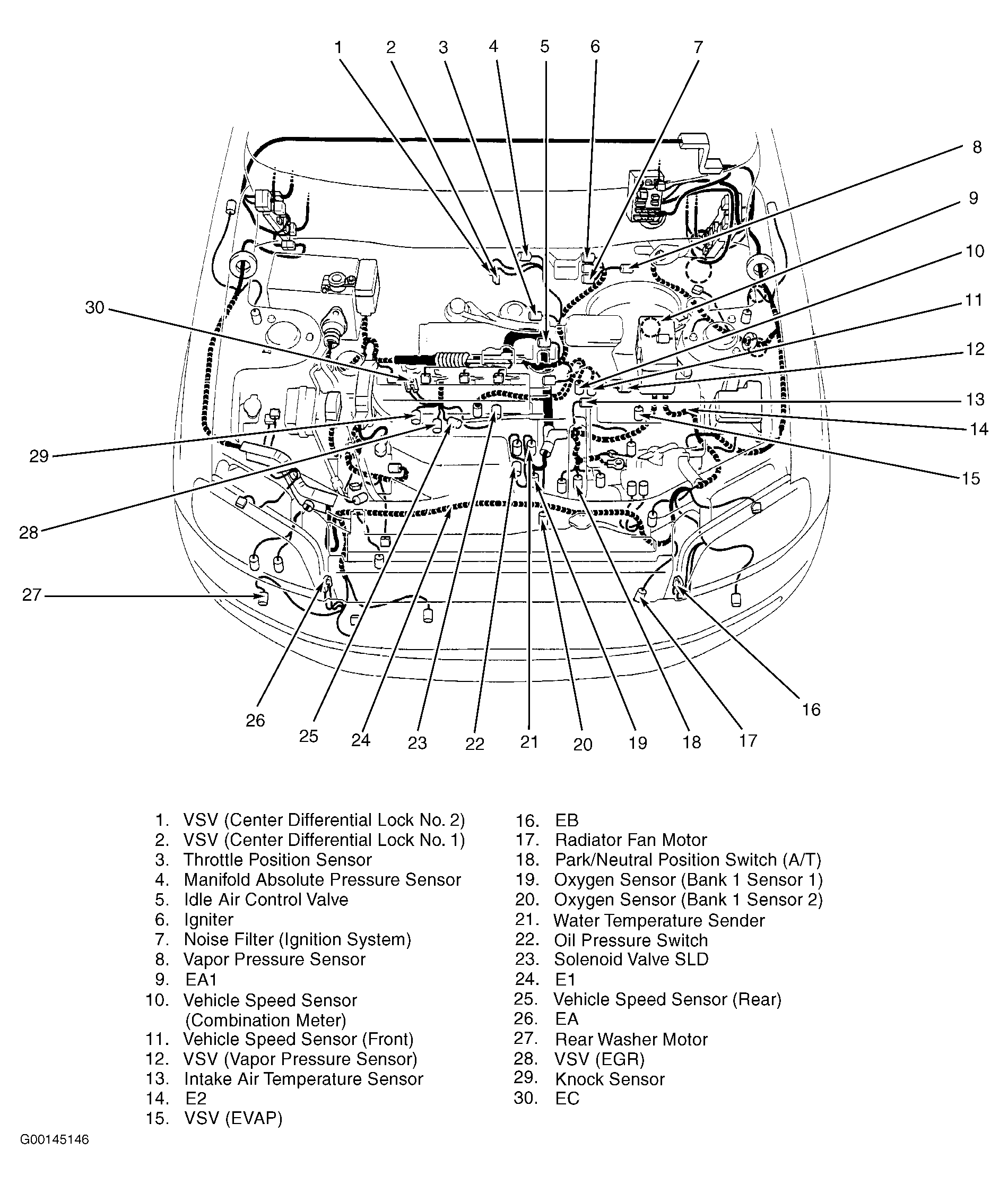

| EA | At right side of radiator. See Figure. |
| EB | At left side of radiator. See Figure. |
| EC | At intake manifold. See Figure. |

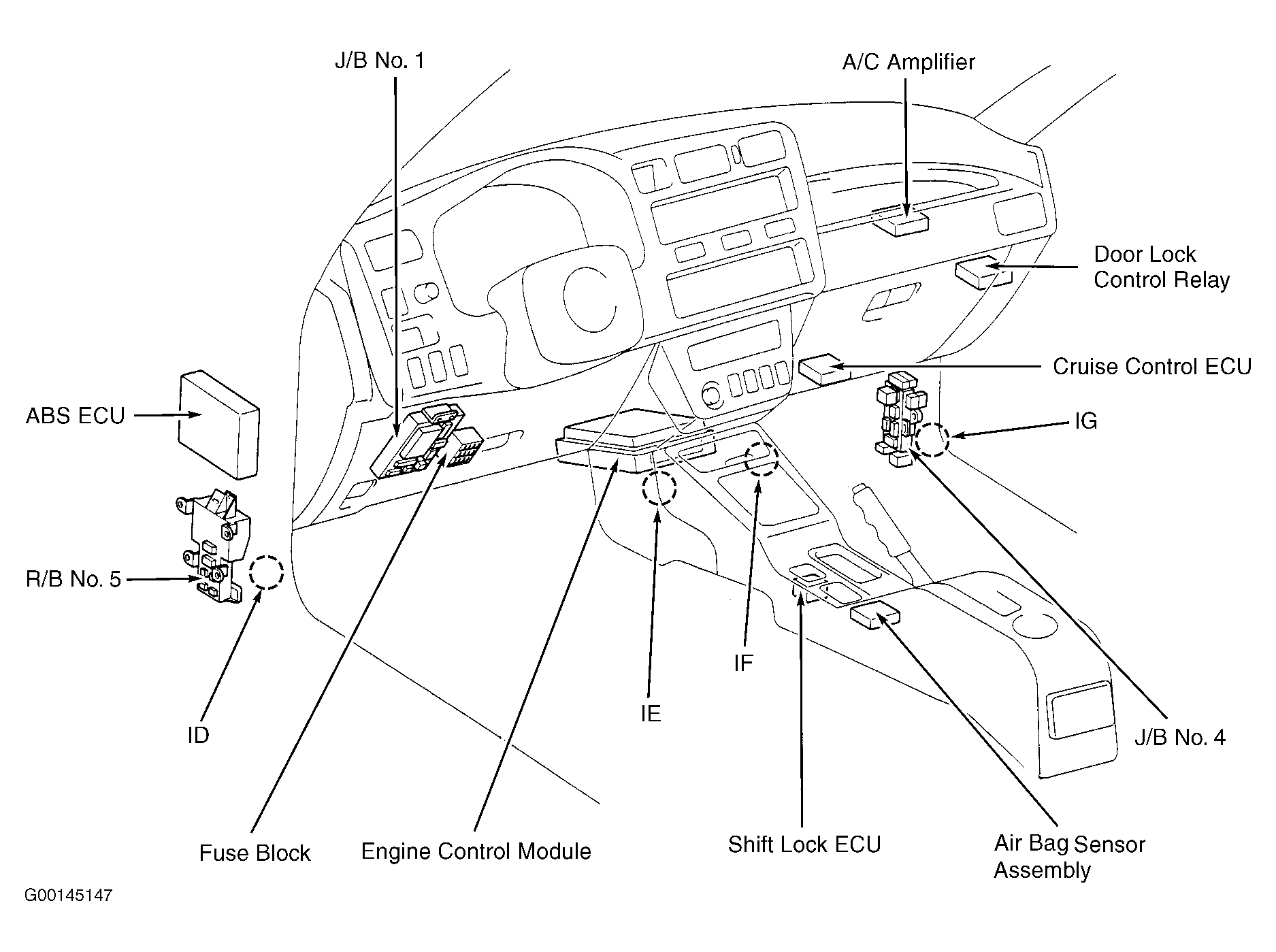

| ID | At left kick panel. See Figure. |
| IE | Below center of dash, at left dash brace. See Figure. |
| IF | Below center of dash, at right dash brace. See Figure. |
| IG | At right kick panel. See Figure. |
