Fuse Box Identification: Notes

Fuse box is located below instrument panel to left of steering column on all vehicles. An additional fuse and relay box located in the engine compartment.

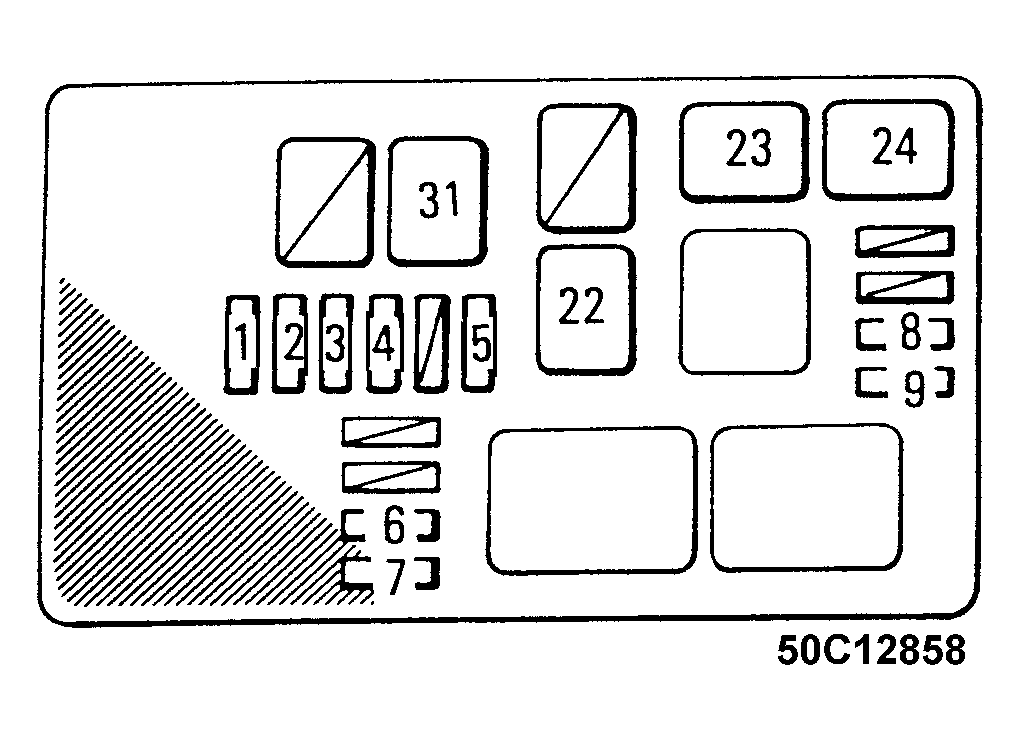

Fig 1: Engine Compartment Fuse Box ID (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Engine Compartment Fuse Box ID (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Instrument Panel Fuse Box ID (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Instrument Panel Fuse Box ID (2 Of 2)

Fig 5: Passenger's Side Kick Panel Fuse Box ID
