Component Testing

For component testing, see CIRCUIT TESTS . ABS ECU values can be measured using Toyota Hand-Held Tester and Break-Out Box. ABS circuits and harness can also be tested by backprobing ABS ECU connectors and comparing measured voltages with ABS ECU standard values chart. See Fig 1 or Fig 2 .

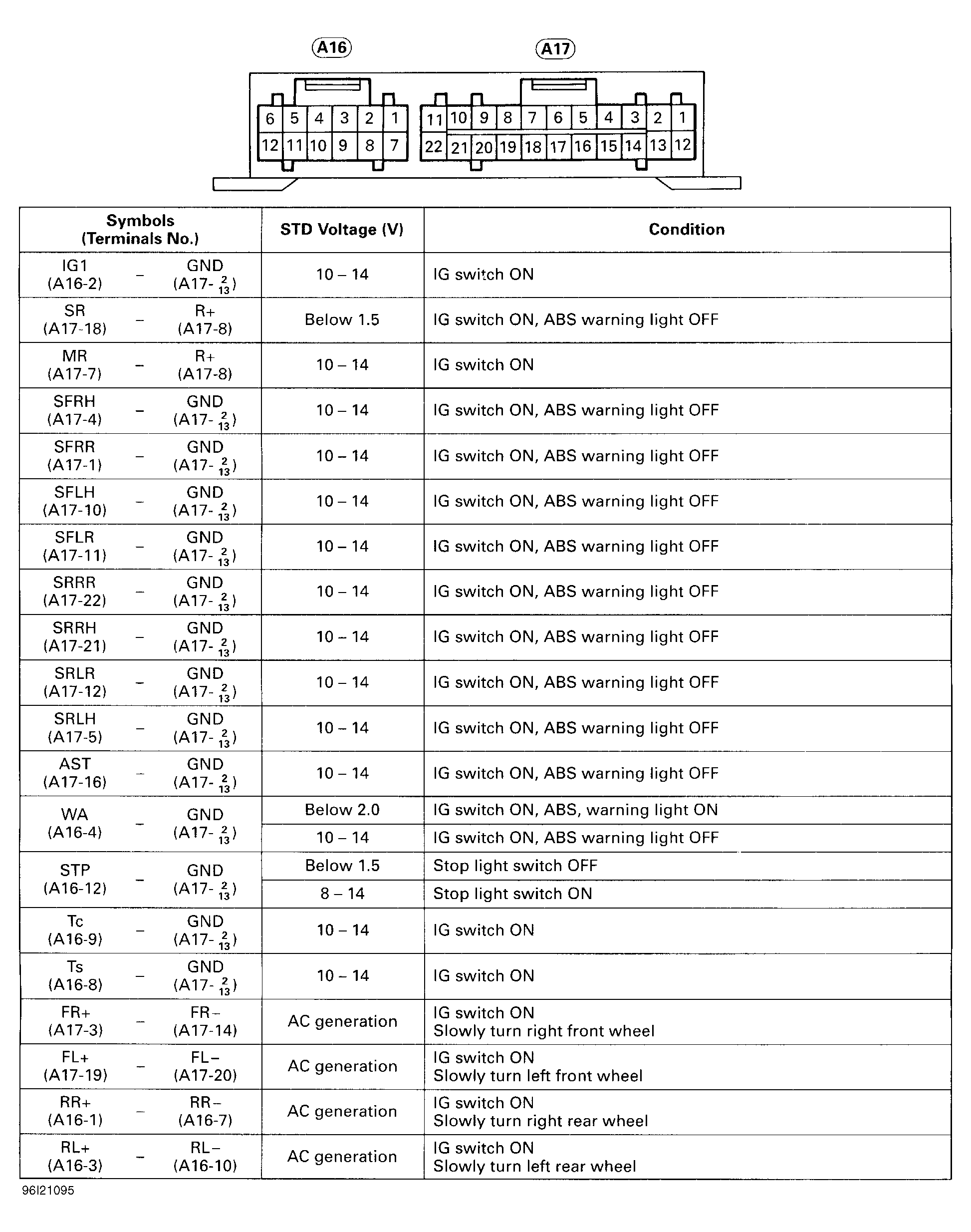

Fig 1: ABS ECU Standard Values Chart (2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

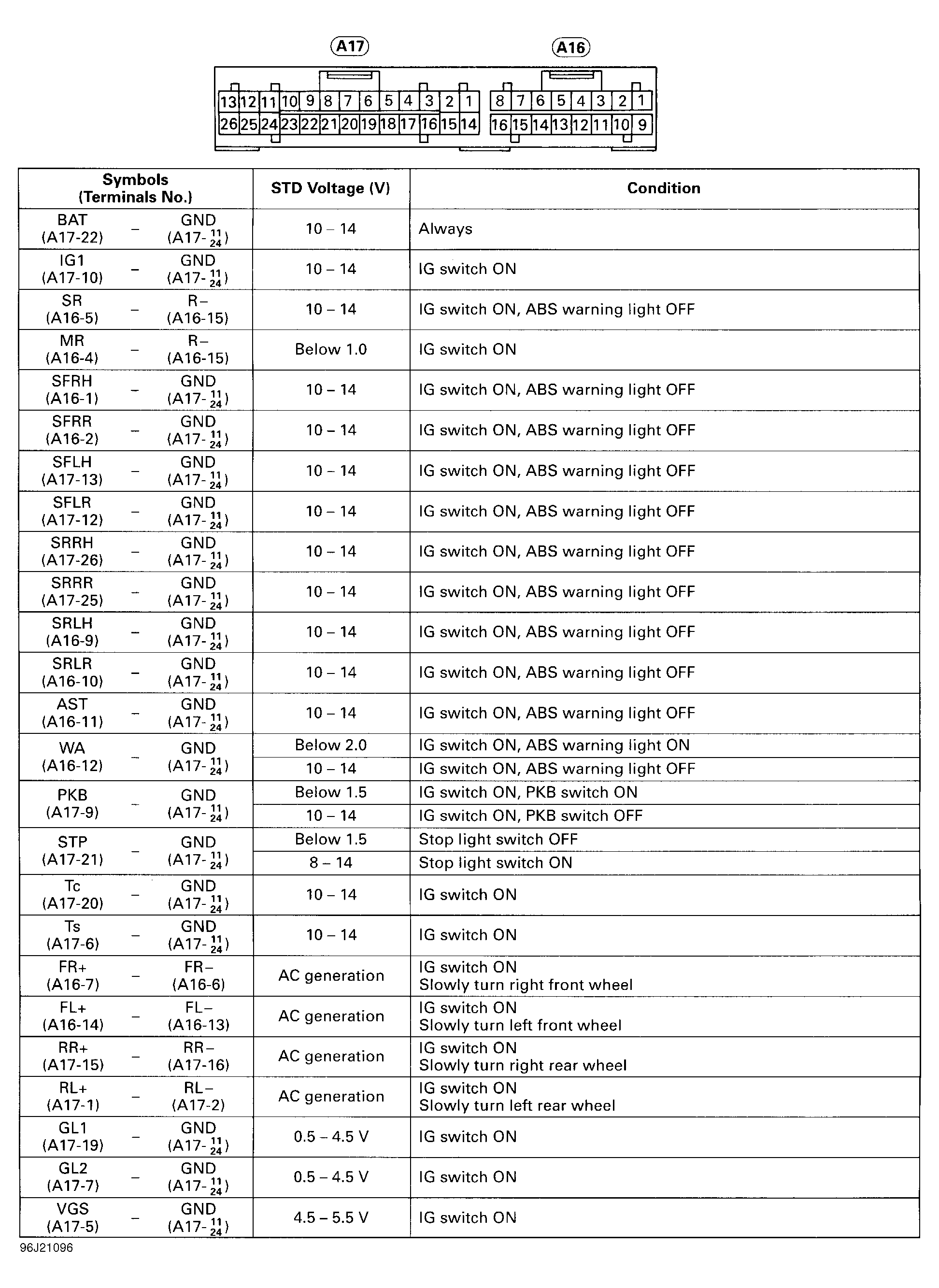

Fig 2: ABS ECU Standard Values Chart (4WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
