Stoplight Switch Circuit

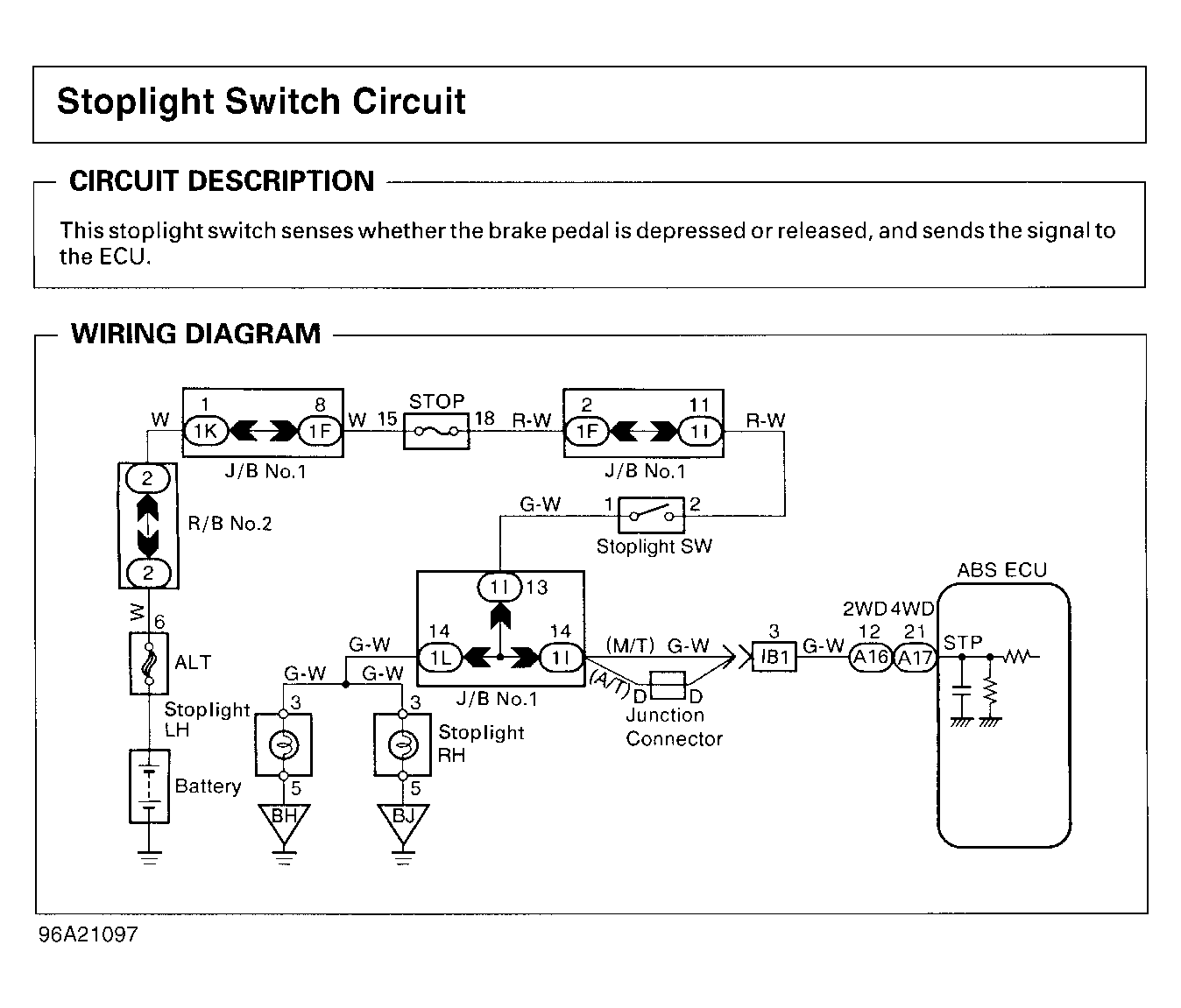

Fig 1: STOPLIGHT SWITCH CIRCUIT CHART (1 OF 2)
G96A21097Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

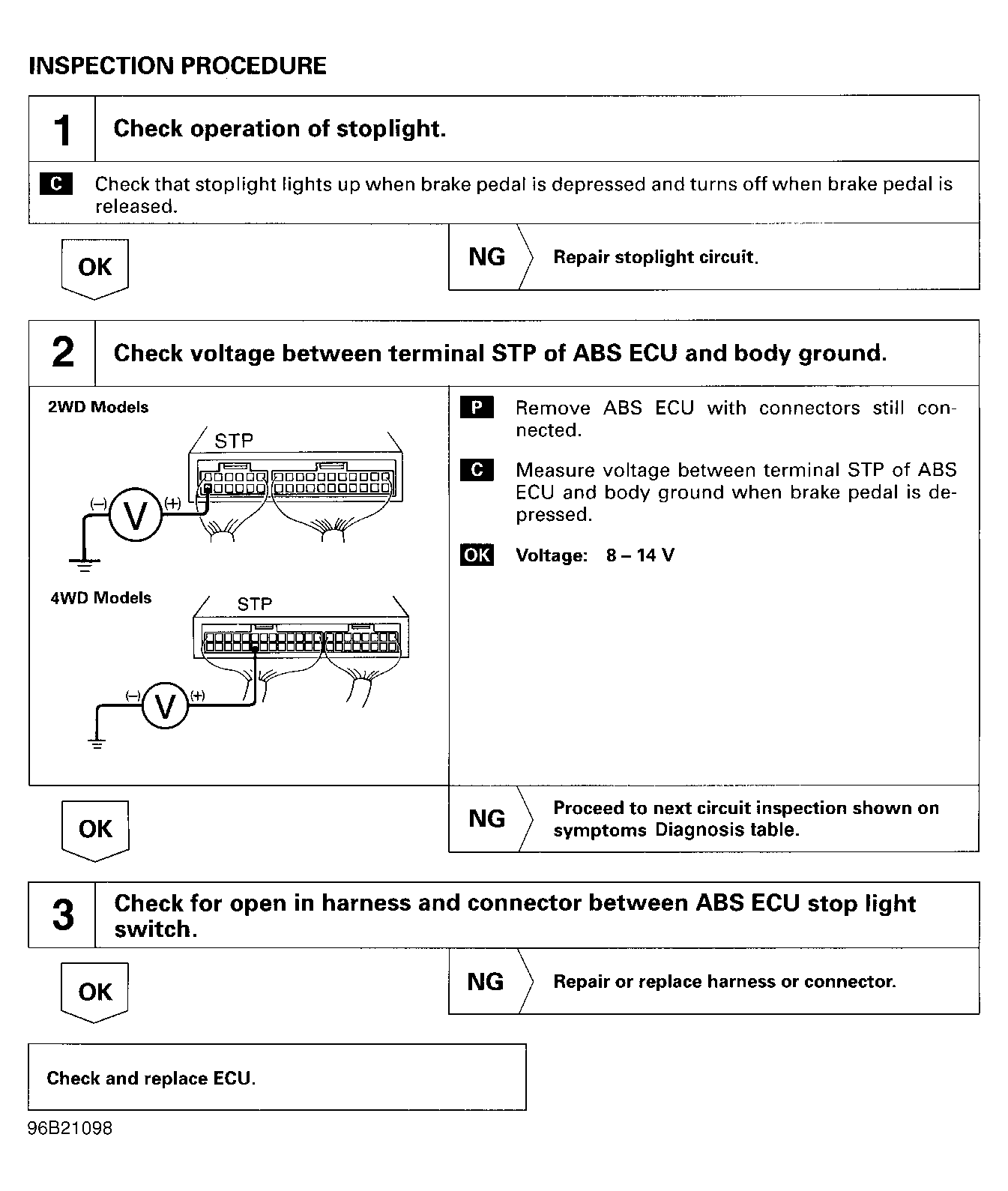

Fig 2: STOPLIGHT SWITCH CIRCUIT CHART (2 OF 2)
G96B21098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
