Power Mirror Switch Test
NOTE:

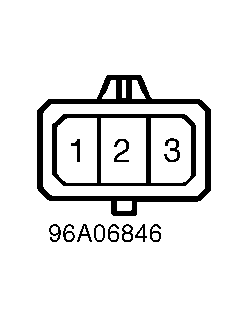

Mirror motor connectors may vary in configuration from vehicle to vehicle of the same model.
Remove power mirror switch. See POWER MIRROR SWITCH under REMOVAL & INSTALLATION. Using ohmmeter, check continuity between appropriate mirror switch terminals. Continuity should exist between specified terminals. See POWER MIRROR SWITCH CONTINUITY TEST table. See Fig 1- Fig 2 If switch fails any test, replace switch.
POWER MIRROR SWITCH CONTINUITY TEST
| Application | (1) Terminals No. | |||
|---|---|---|---|---|
| Switch In Off Position | ||||
| Up | 2 & 5 | |||
| Down | 5 & 8 | |||
| Left | 2 & 5 | |||
| Right | 5 & 8 | |||
| Switch In Left Position | ||||
| Up | 2 & 5; 6 & 8 | |||
| Down | 2 & 6; 5 & 8 | |||
| Left | 1 & 8; 2 & 5 | |||
| Right | 1 & 2; 5 & 8 | |||
| Switch In Right Position | ||||
| Up | 2 & 5; 3 & 8 | |||
| Down | 2 & 3; 5 & 8 | |||
| Left | 2 & 5; 7 & 8 | |||
| Right | 2 & 7; 5 & 8 | |||
|
||||
