Tc TERMINAL CIRCUIT

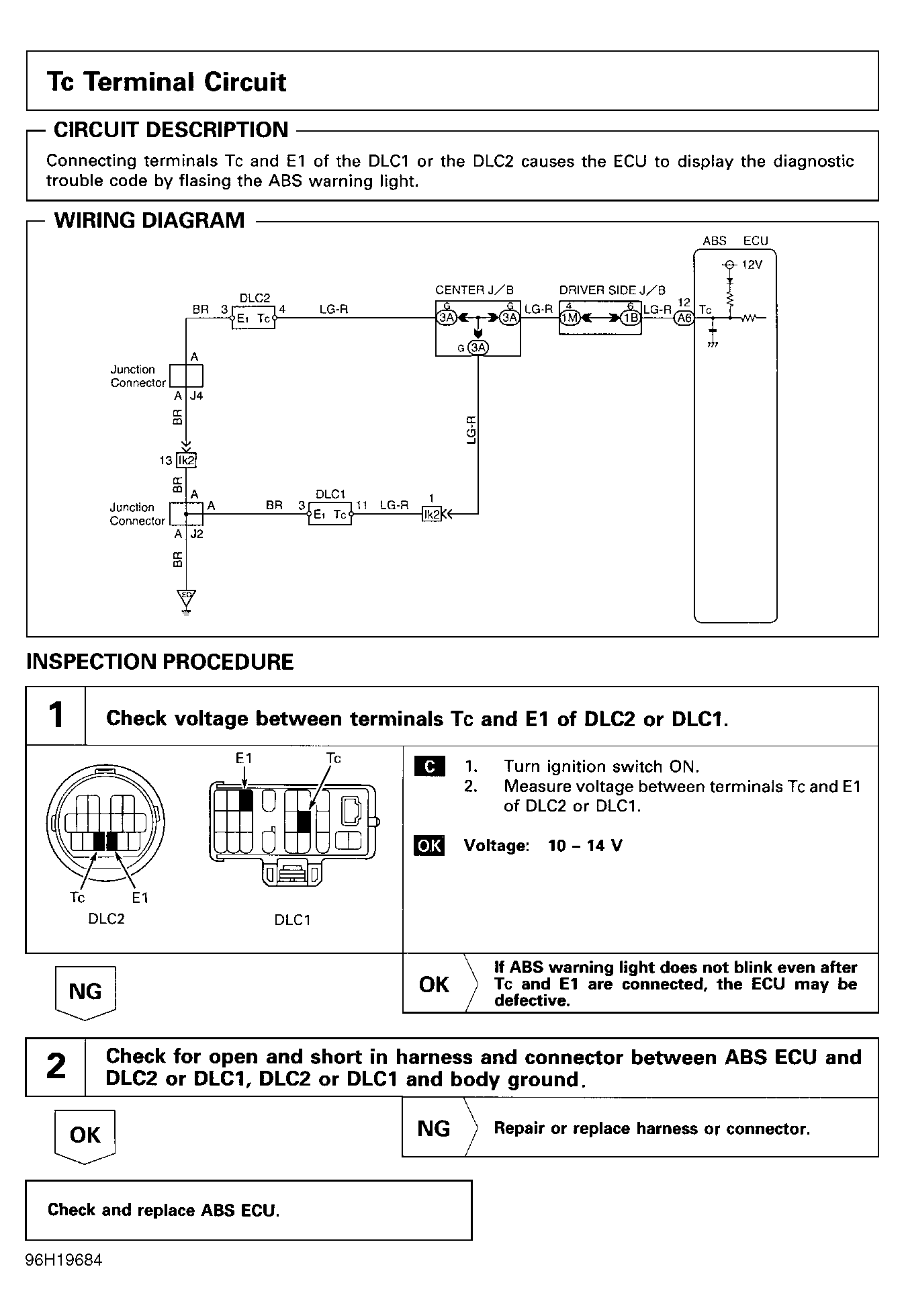

Fig 1: Tc TERMINAL CIRCUIT CHART

G96H19684

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
