Throttle Position Sensor

Manufacturer does not list procedure for Throttle Position (TP) sensor adjustment. Only information available is for checking resistance of TP sensor.
Disconnect electrical connector from TP sensor. Note electrical terminals on TP sensor. See Fig 1. Using ohmmeter, check resistance between specified terminals in relation to throttle position. See THROTTLE POSITION SENSOR RESISTANCE SPECIFICATIONS table. Replace components as necessary if resistance is not within specification.

THROTTLE POSITION SENSOR RESISTANCE SPECIFICATIONS

Application Type

Throttle Position

Terminals Tested

Ohmmeter Reading

3.4L V6 ⁽¹⁾

Fully Closed

VTA & E2

280-6400

Fully Open

VTA & E2

2000-11,600

VC & E2

2700-7700

⁽¹⁾	Apply vacuum to throttle opener before checking TP sensor.

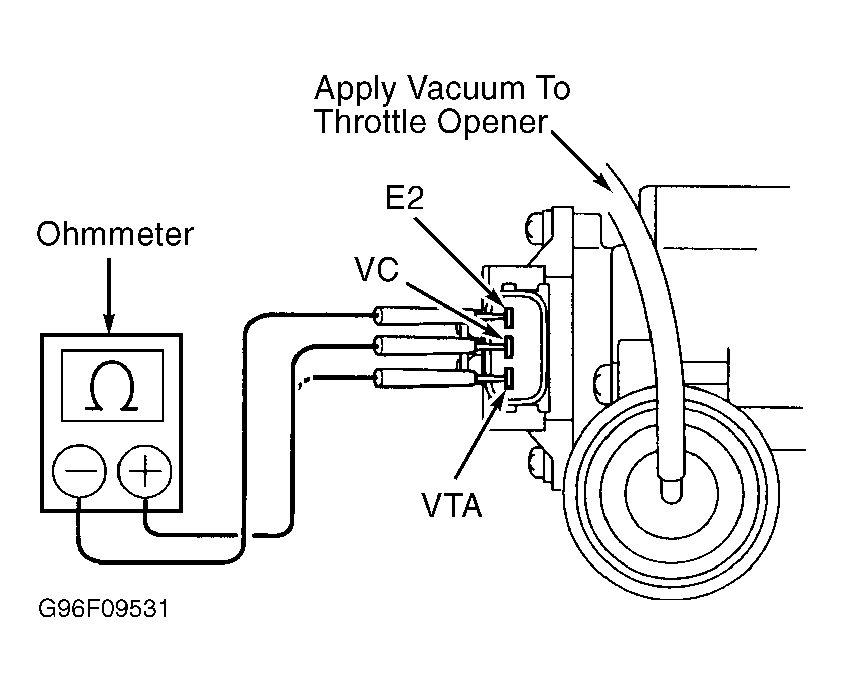

Fig 1: Checking Throttle Position Sensor
