DTC 44: Deceleration Sensor Circuit
DTC 44: Deceleration Sensor Circuit

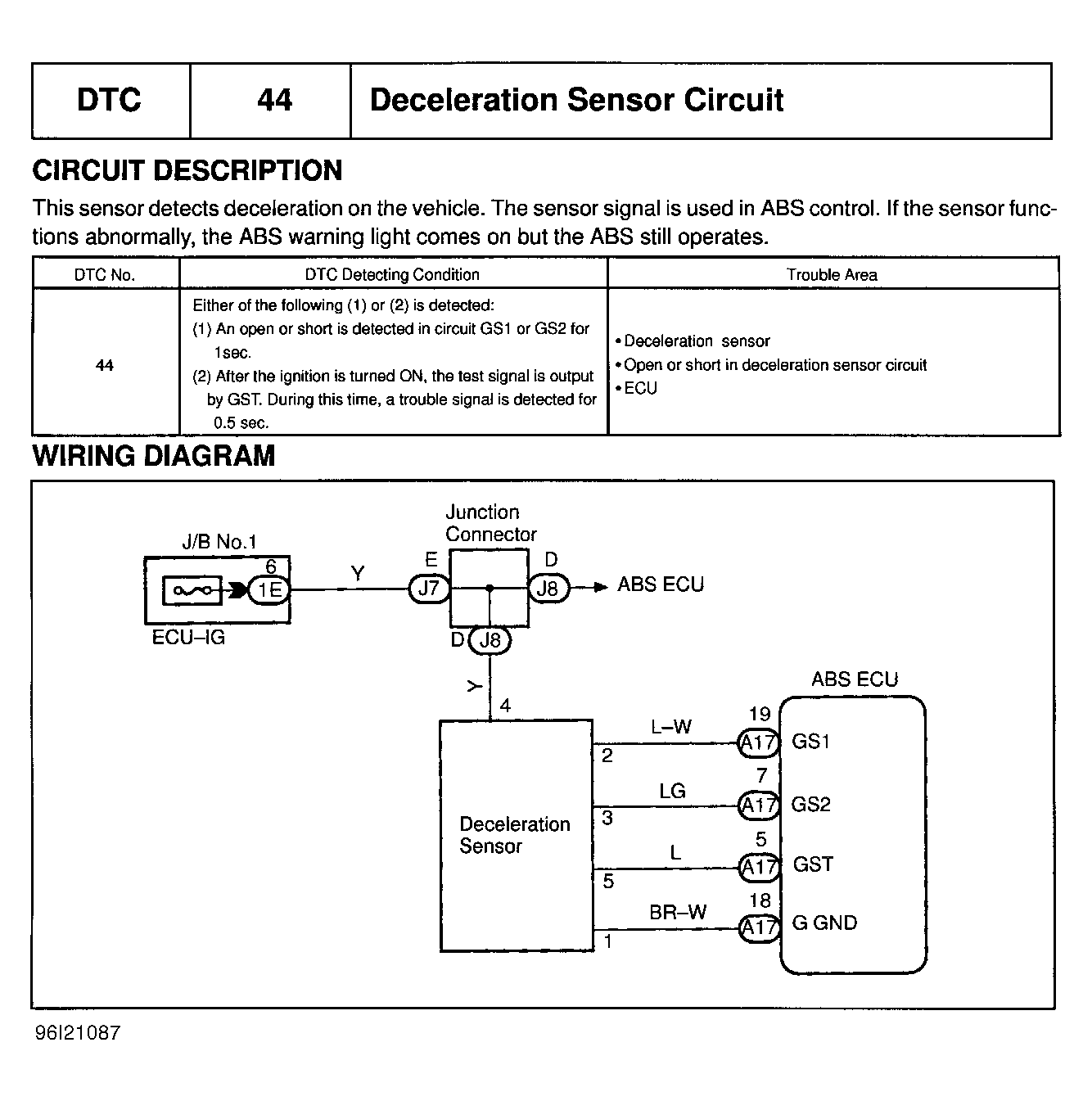

Fig 1: DTC 44 - Deceleration Sensor Circuit Chart (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

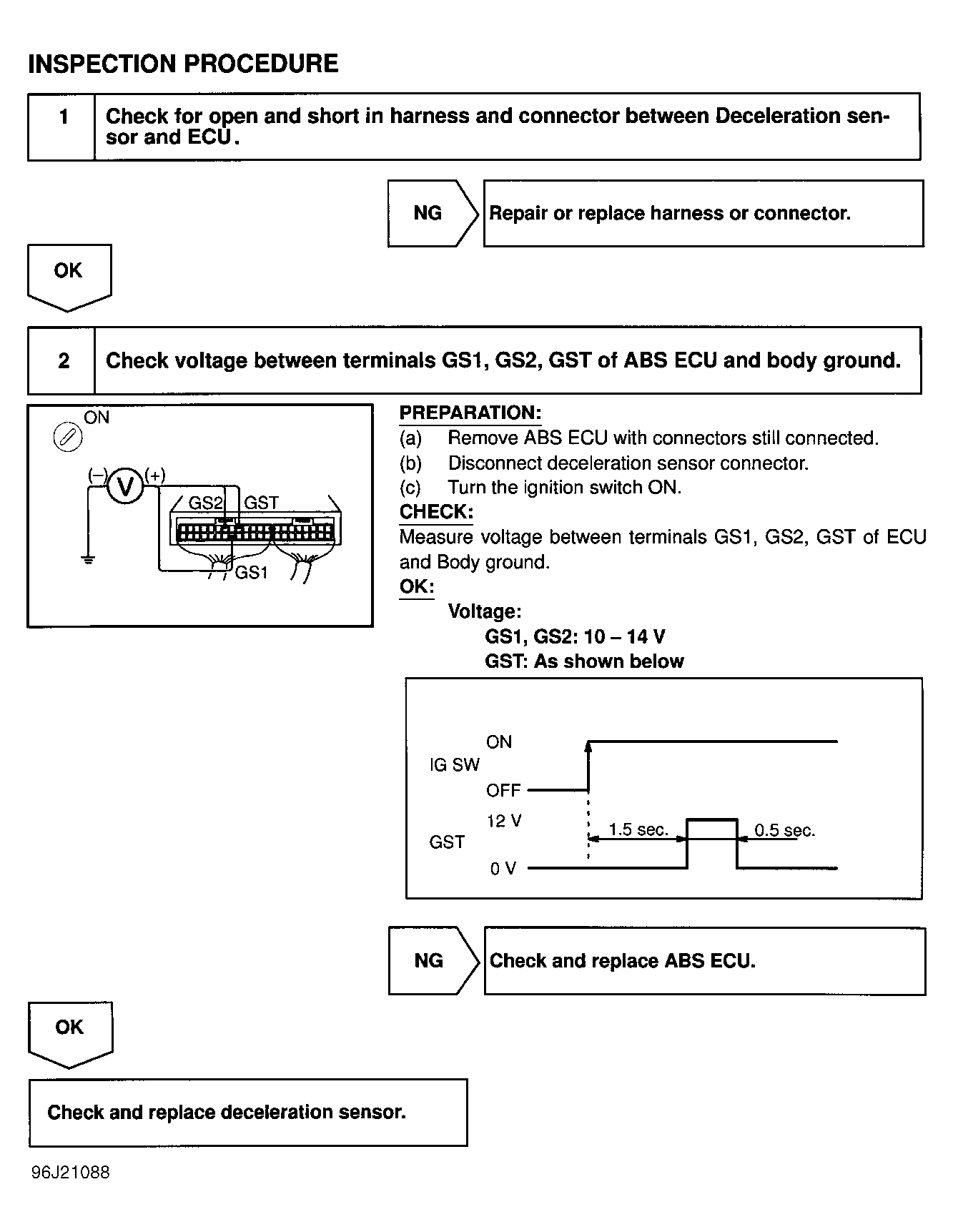

Fig 2: DTC 44 - Deceleration Sensor Circuit Chart (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
