DTC 13 & 14: Abs Control (Motor) Relay Circuit

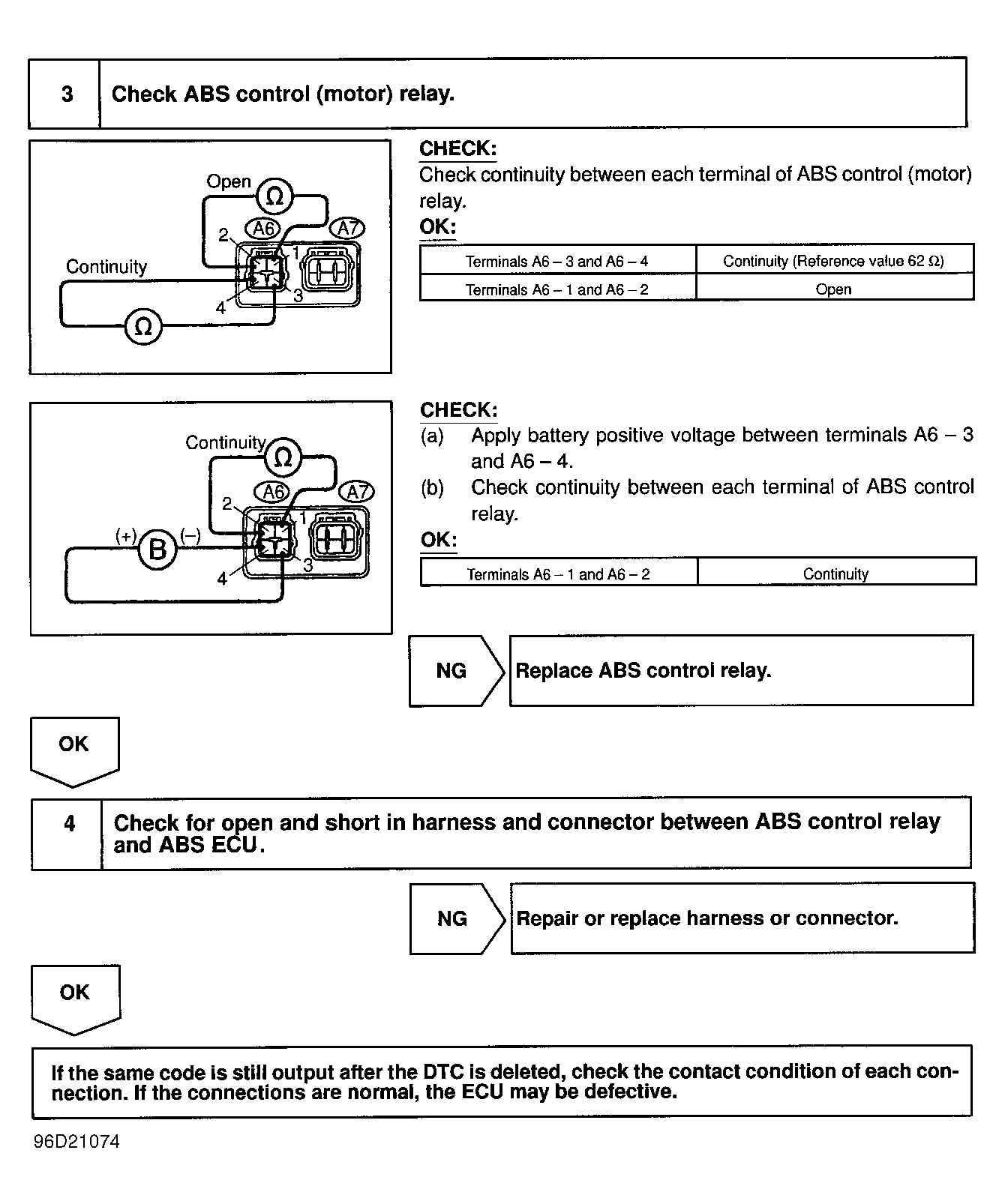

Fig 1: DTC 13 & DTC 14 - ABS Control (Motor) Relay Circuit Chart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

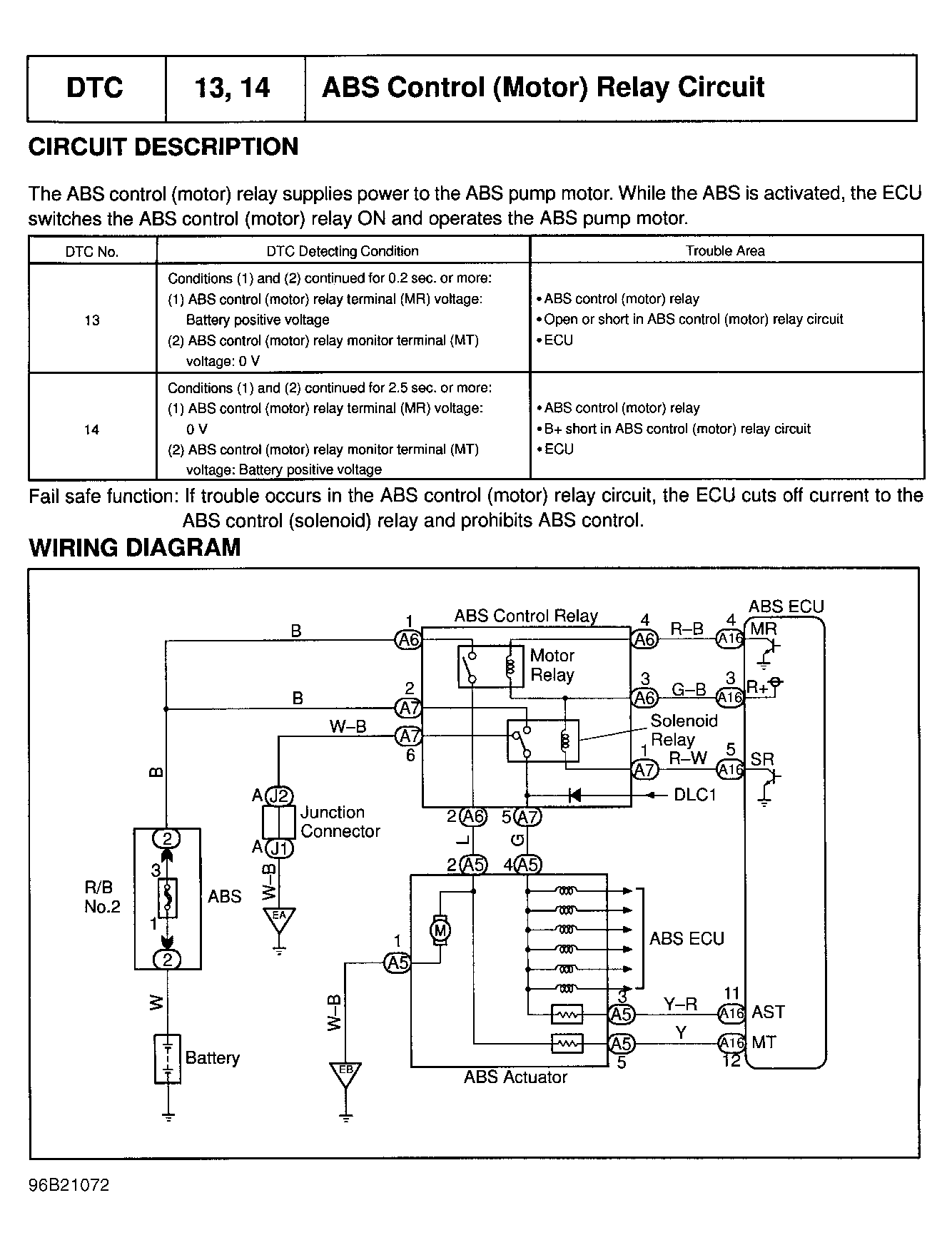

Fig 2: DTC 13 & DTC 14 - ABS Control (Motor) Relay Circuit Chart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

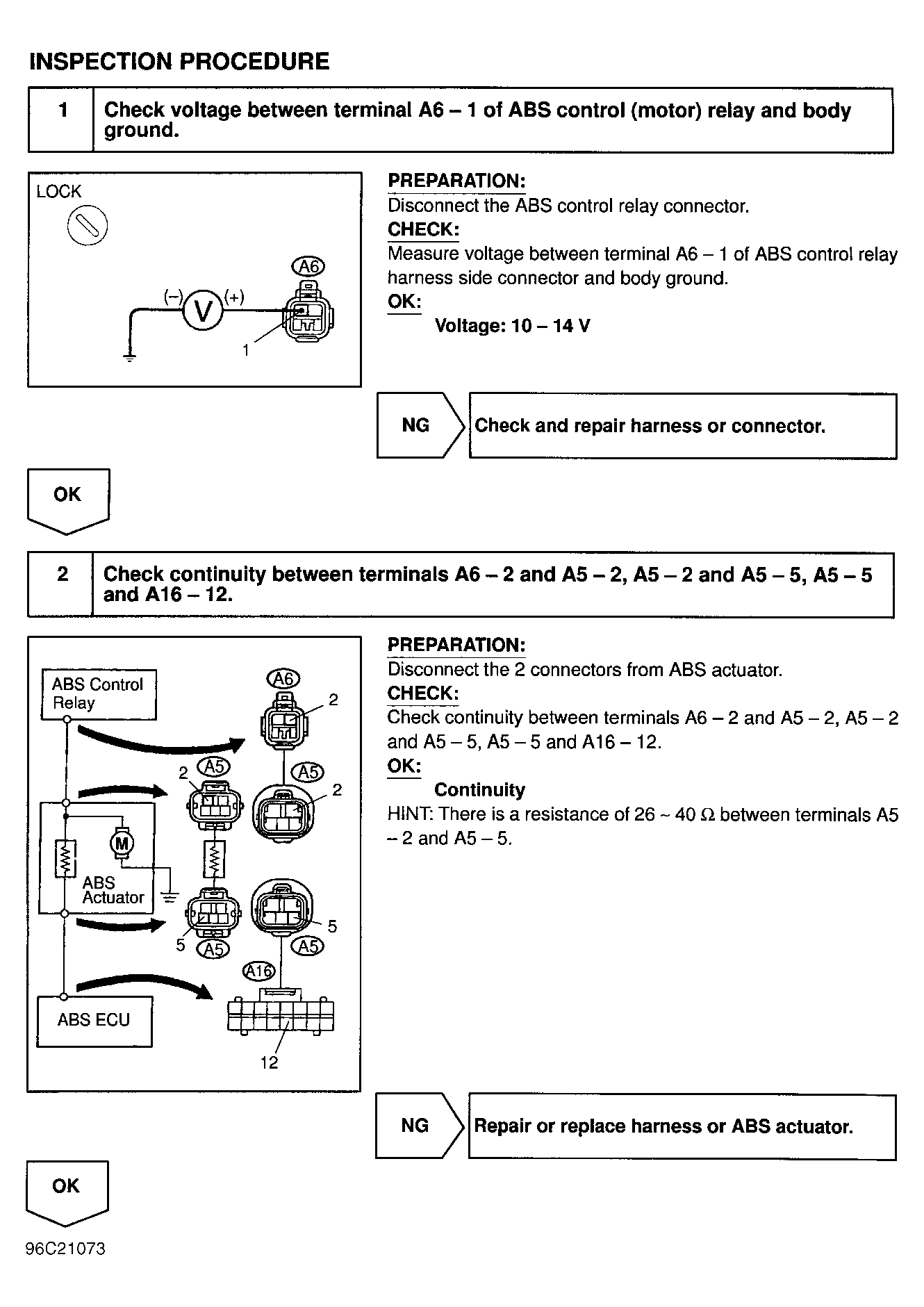

Fig 3: DTC 13 & DTC 14 - ABS Control (Motor) Relay Circuit Chart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
