Power Window Switch Continuity Test (Passenger Side & Rear Switches)

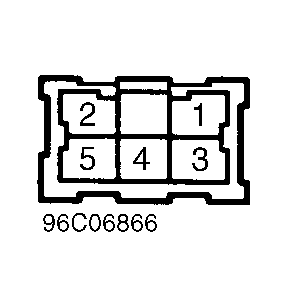

Using an ohmmeter, check continuity between specified terminals with power window switch in specified position. See the POWER WINDOW SWITCH CONTINUITY TEST (PASSENGER SIDE & REAR) table. See Fig 1. If continuity does not exist at specified terminals, replace appropriate power window switch.
POWER WINDOW SWITCH CONTINUITY TEST (PASSENGER SIDE & REAR)
| Application & Position | (1) Terminals No. | |||
|---|---|---|---|---|
| 1995 4Runner | ||||
| UP | 1 & 5; 3 & 4 | |||
| OFF | 1 & 2; 3 & 4 | |||
| DOWN | 1 & 2; 4 & 5 | |||
| 1996 4Runner | ||||
| UP | 1 & 2; 3 & 5 | |||
| OFF | 1 & 2; 4 & 5 | |||
| DOWN | 1 & 3; 4 & 5 | |||
|
||||
