Circuit Protection Devices
CIRCUIT PROTECTION DEVICES
| Component |
Component Location |
| Fuse Box |
On top of J/B No. 1. |
| J/B No. 1 |

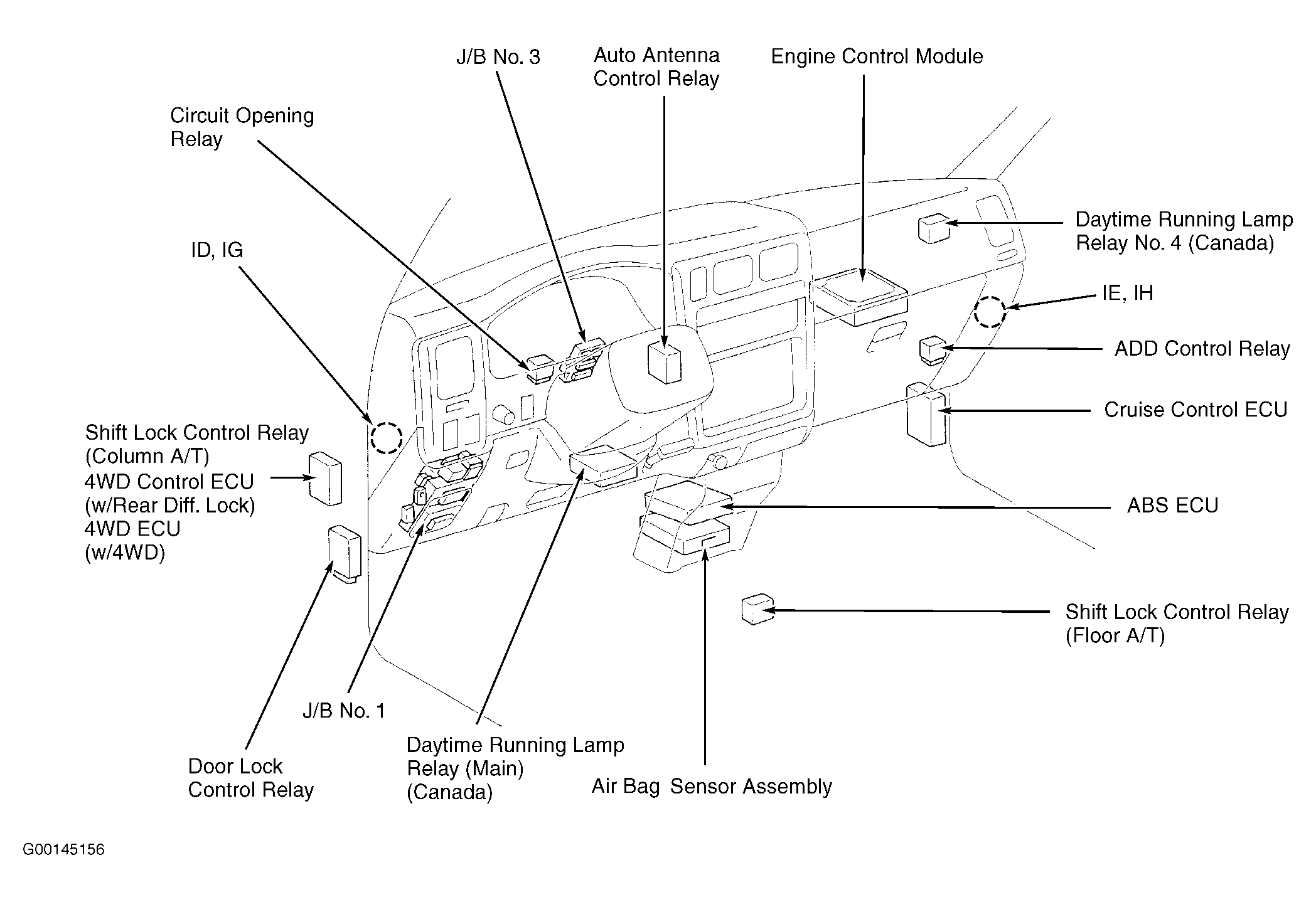

Behind dash, left of steering column. See Figure. |
| J/B No. 3 |
Behind dash, above steering column. See Figure. |
| R/B No. 2 |

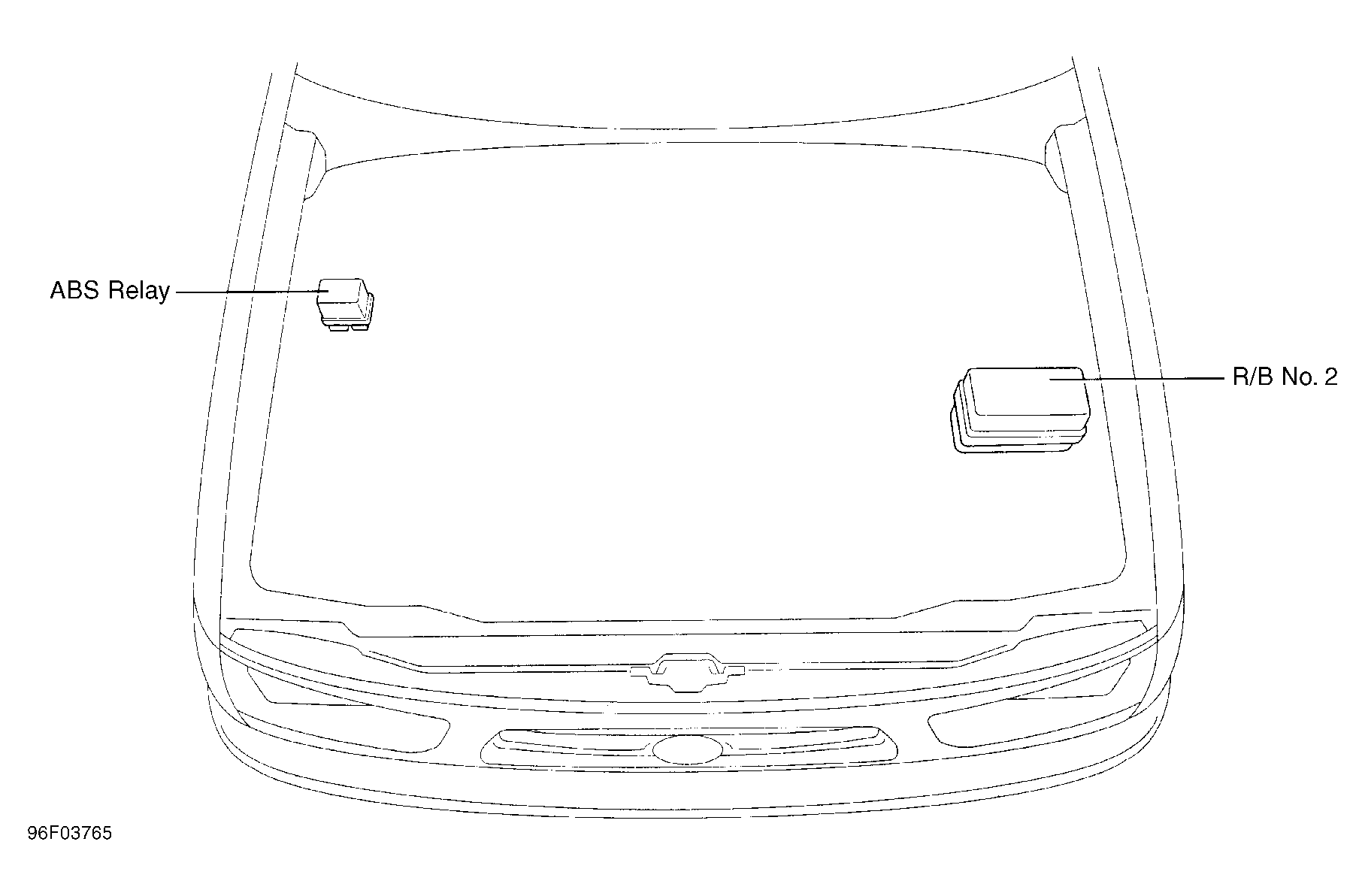

On left side of engine compartment. See Figure. |
