Component Locations

Fig 1: ECM Location
G95A31302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

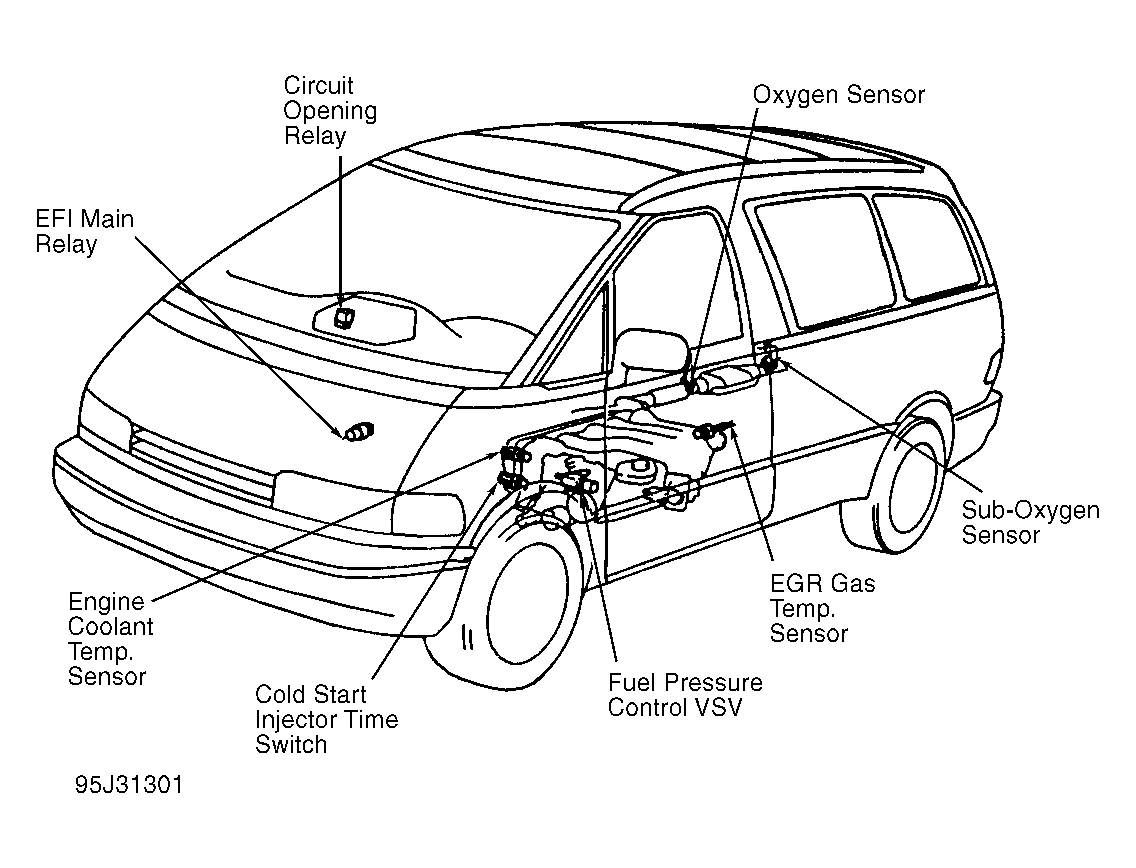

Fig 2: All Other Components Location
G95J31301Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
ECM LOCATION

Model Location
Previa Non-Supercharged Below Driver's Seat
