Leaf Spring

Using a chisel and a hammer, pry up the spring clip. See Fig 1.
Remove the clip bolt, collar and nut from the clip. See Fig 2.
Remove the dynamic damper. See Fig 2.
Hold spring in a vise and remove center bolt. See Fig 3.
Drill off the head of the rivet and drive it out. See Fig 4.
Install a new rivet into the holes of the spring leaf and clip. Rivet with a press. See Fig 4.
Align the leaf holes and secure the leaves with a vise. See Fig 5.
Install the spring center bolt. Tighten spring center bolt to specification. See TORQUE SPECIFICATIONS .
Position the collar and install the clip bolt and nut. See Fig 2.
Position and install dynamic damper, bolt and nut. See Fig 2. Tighten to specification. See TORQUE SPECIFICATIONS .
Using a hammer, bend the spring clip into the position. See Fig 6.

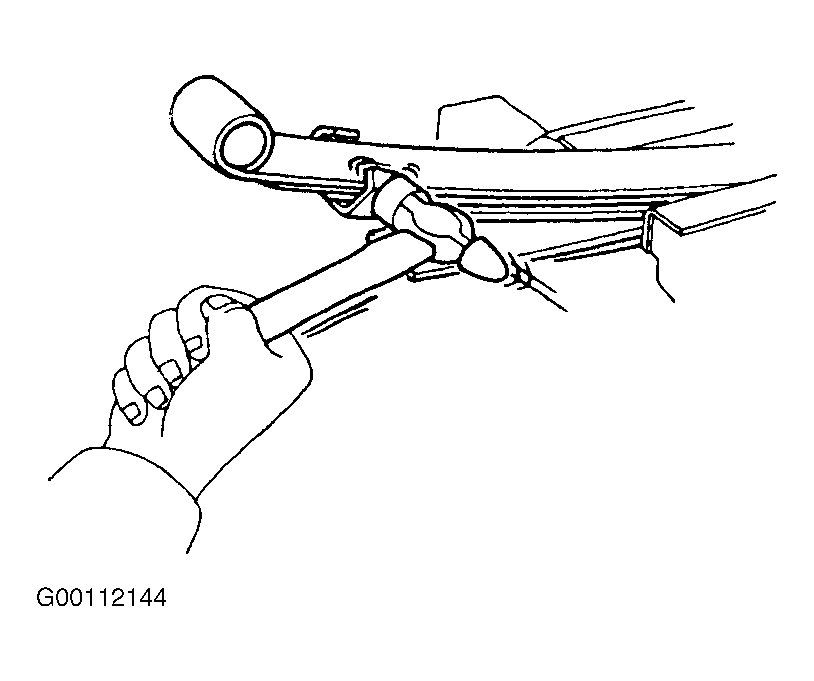

Fig 1: Removing Spring Clip

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

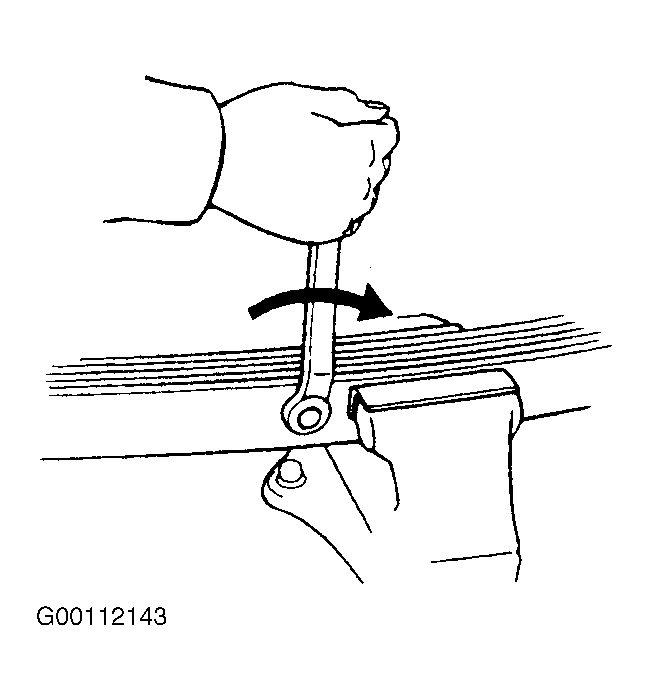

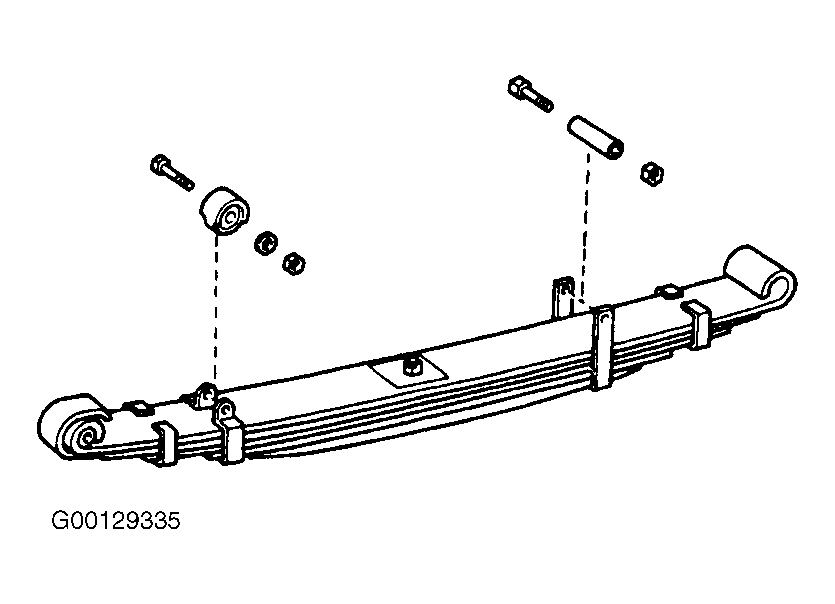

Fig 2: Removing & Installing Clip Bolt & Dynamic Damper

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

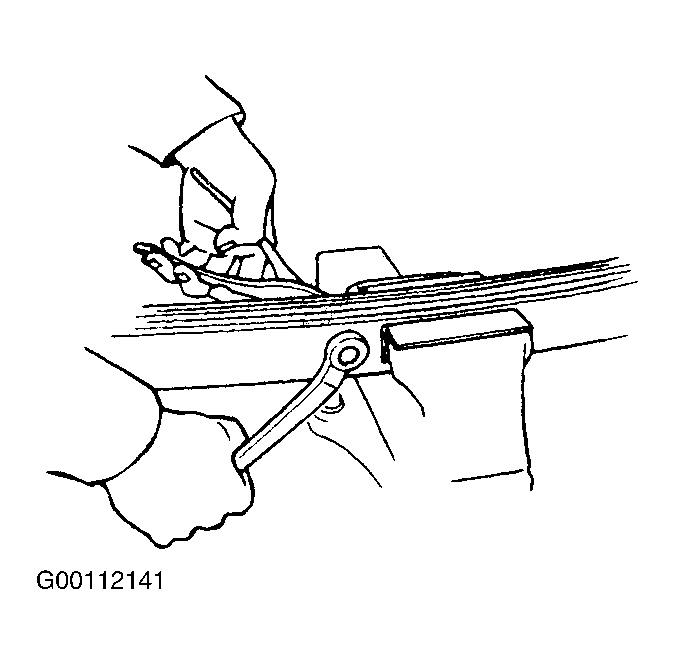

Fig 3: Removing Center Bolt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

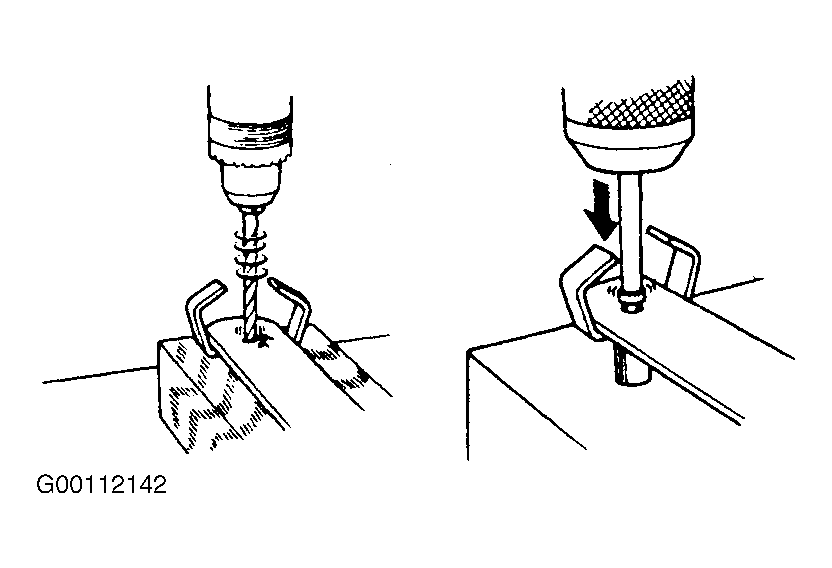

Fig 4: Installing Spring Clip

Fig 5: Installing Spring Center Bolt

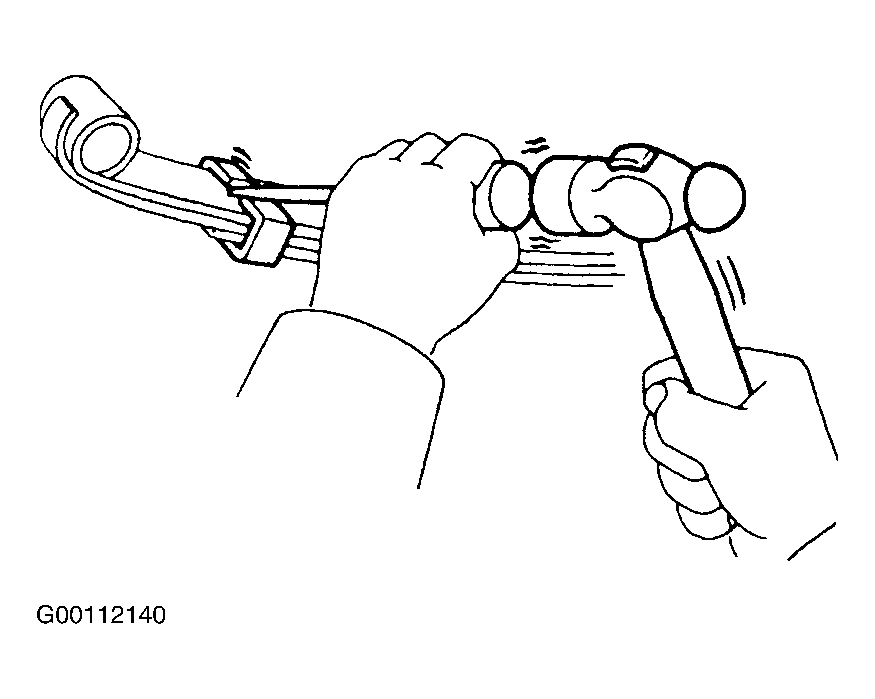

Fig 6: Bending Spring Clip
