Component Locations

For component locations, see Fig 1 or Fig 2 .

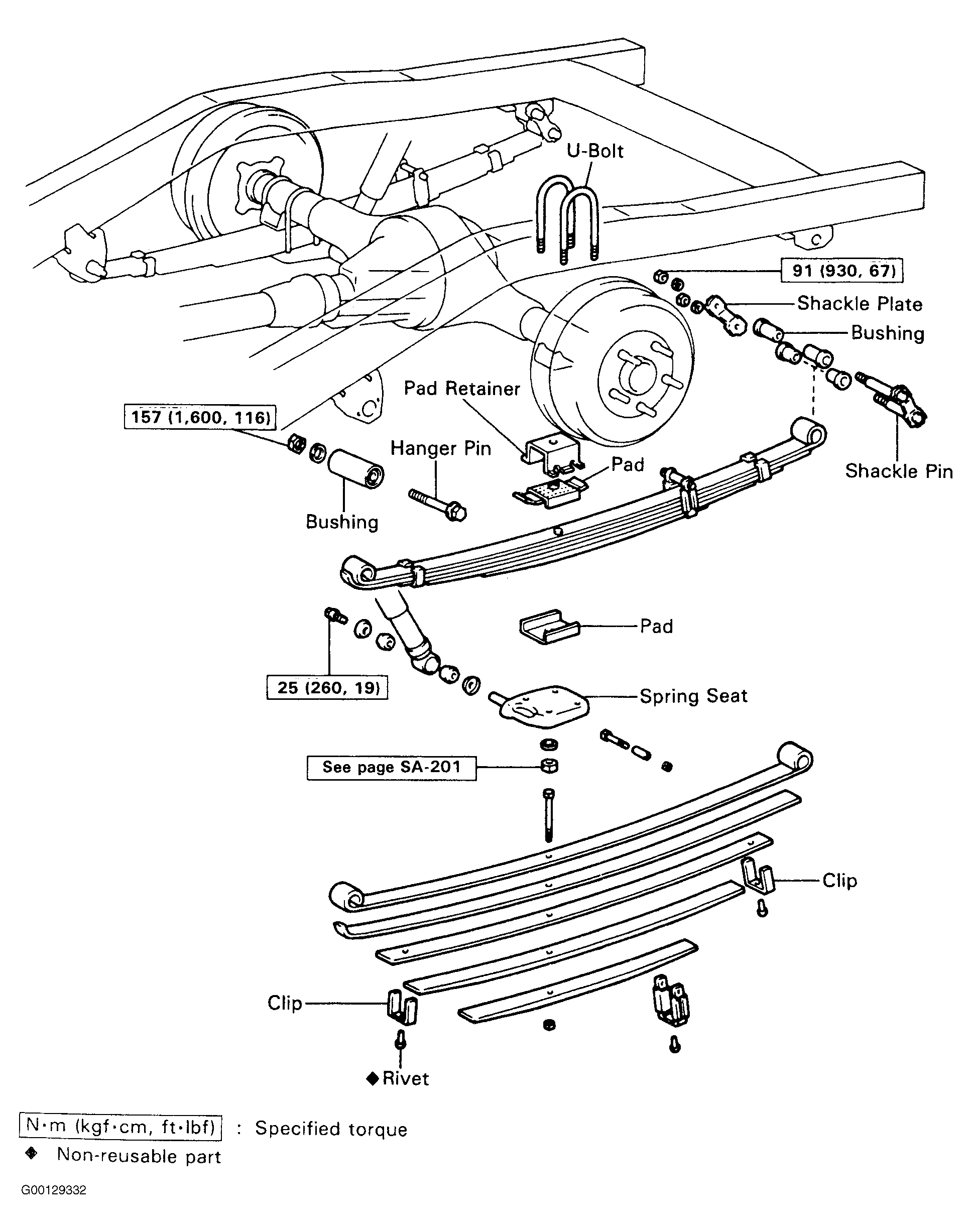

Fig 1: Exploded View Of Rear Suspension (2WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

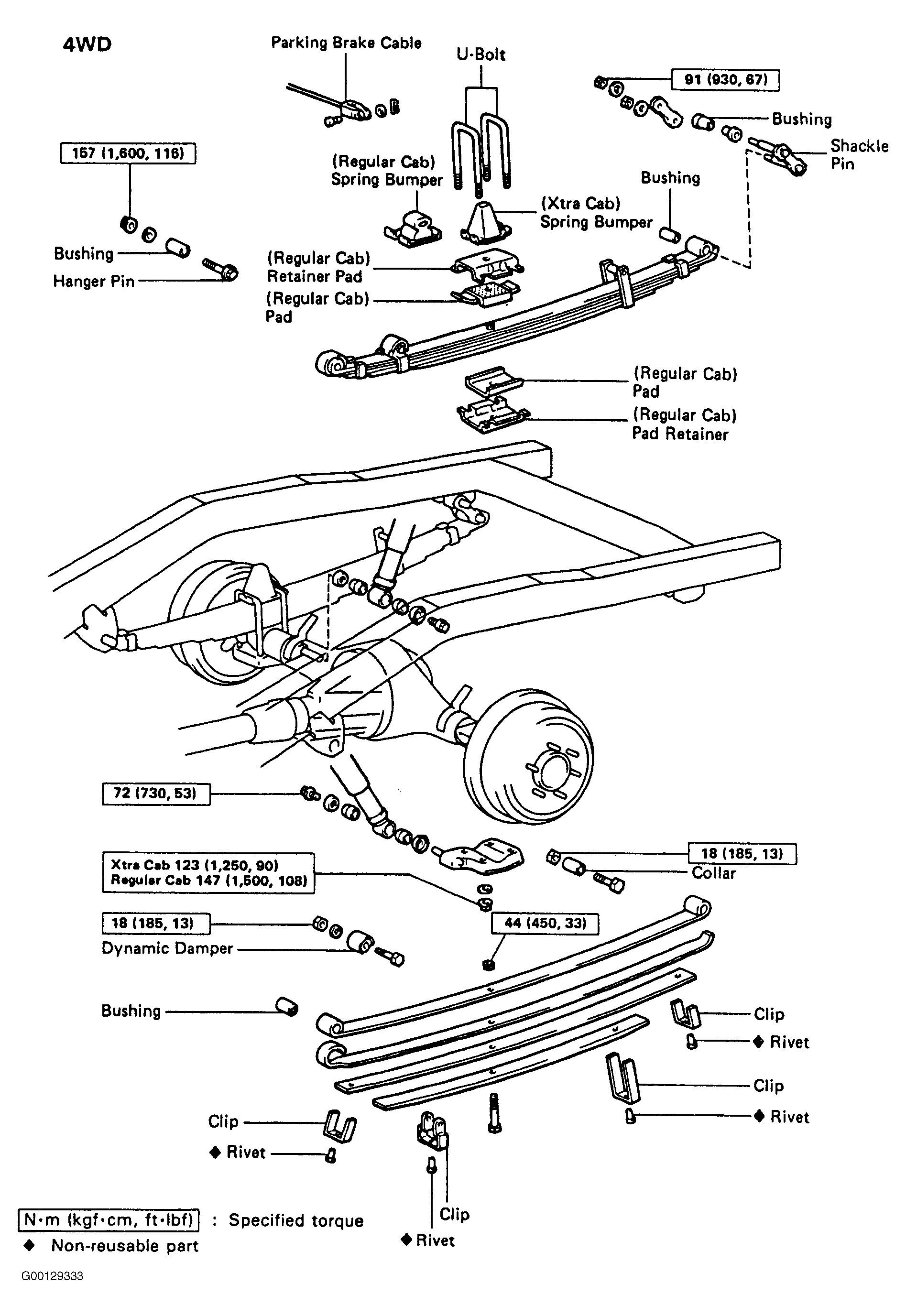

Fig 2: Exploded View Of Rear Suspension (4WD)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
