Component Location

Fig 1: Data Link Connector (DLC) Location
G50I10627Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

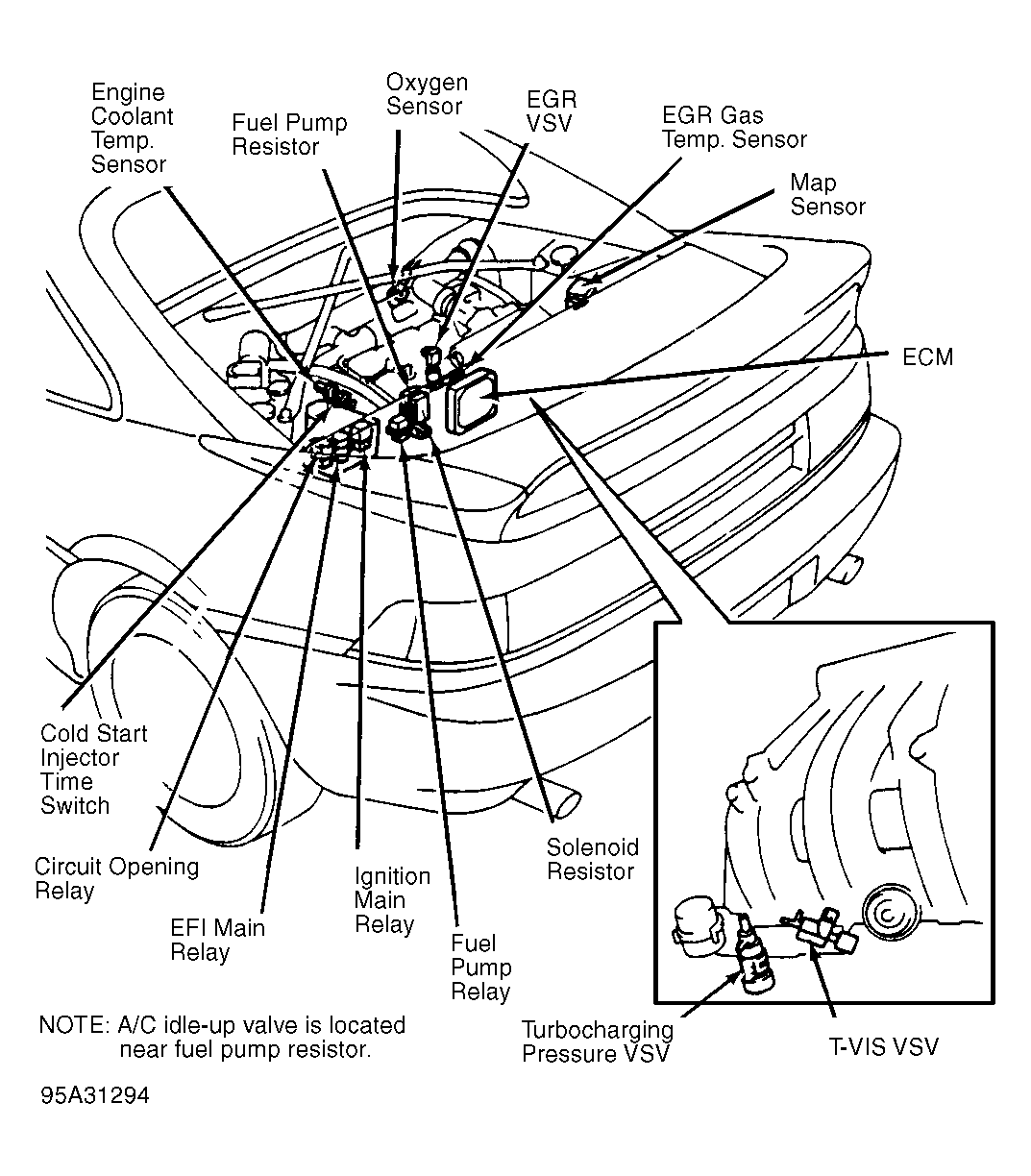

Fig 2: ECM Location
G95A31294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DLC NO. 1 LOCATION

Model Location
MR2 Passenger's Side Rear Of Engine Compartment
ECM LOCATION

Model Location
MR2 Driver's Side Rear Corner Of Engine Compartment
