Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Rear Of Vehicle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Rear Of Vehicle

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

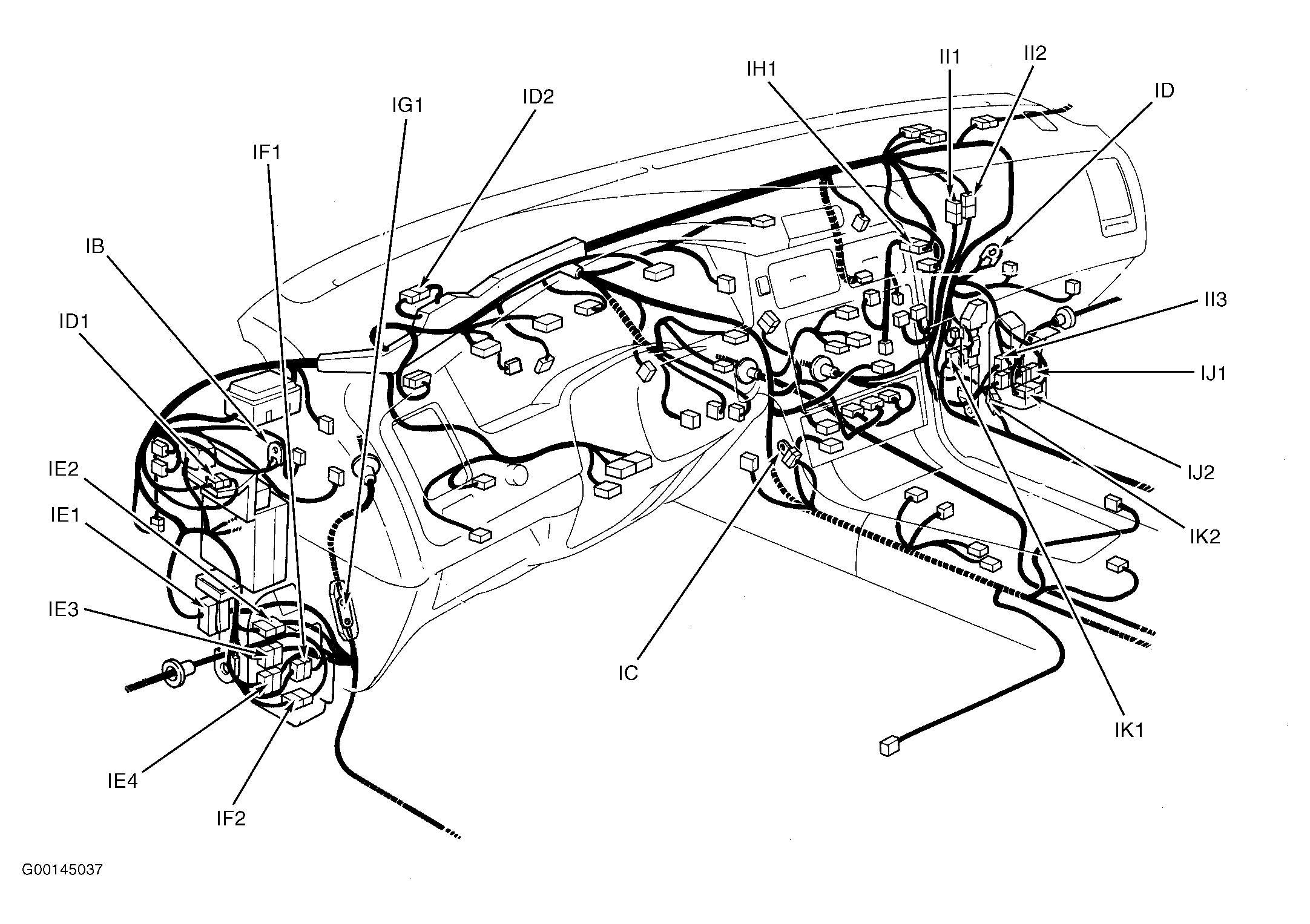

Fig 4: Dash

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

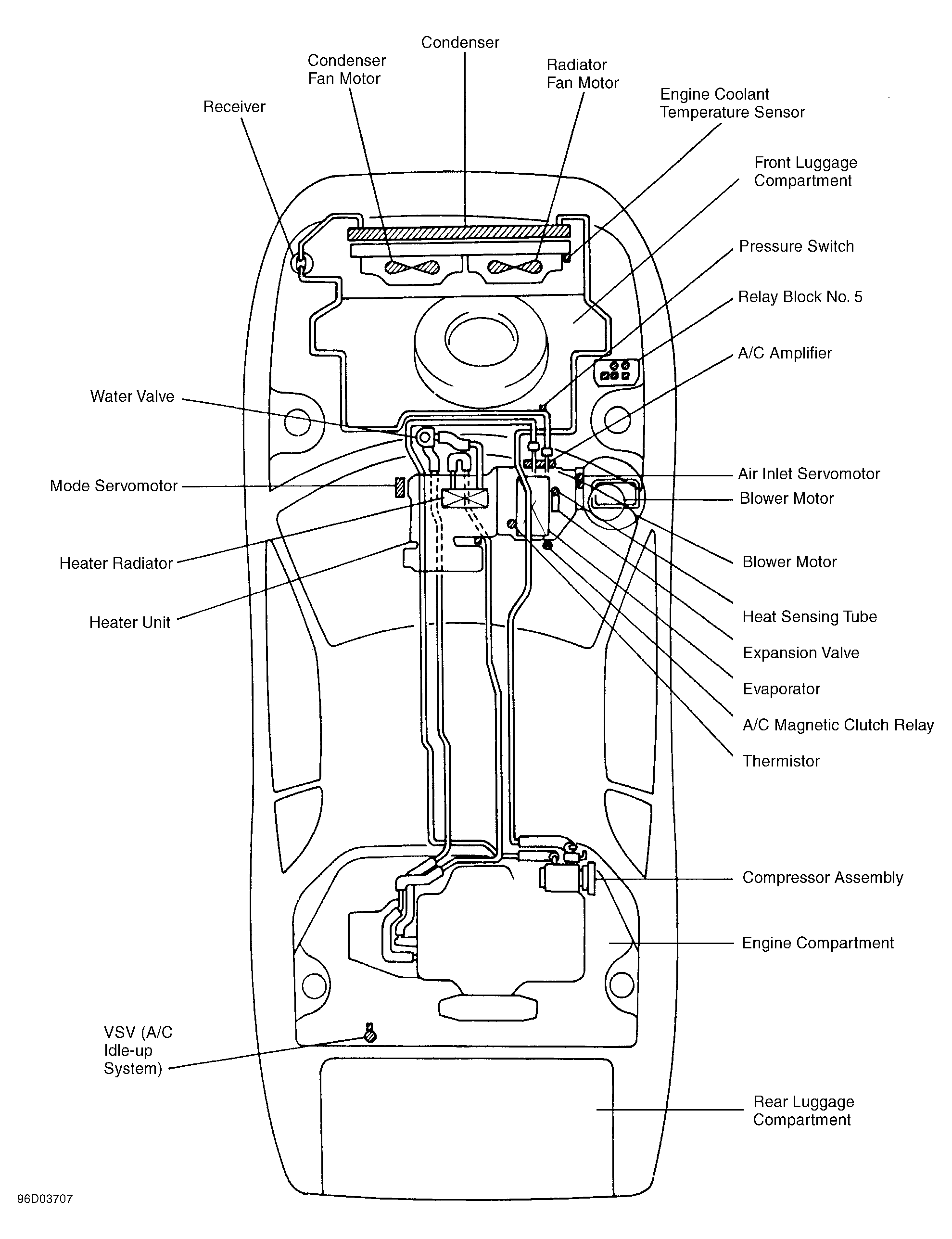

Fig 5: Vehicle Overview

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 6: Front Of Vehicle

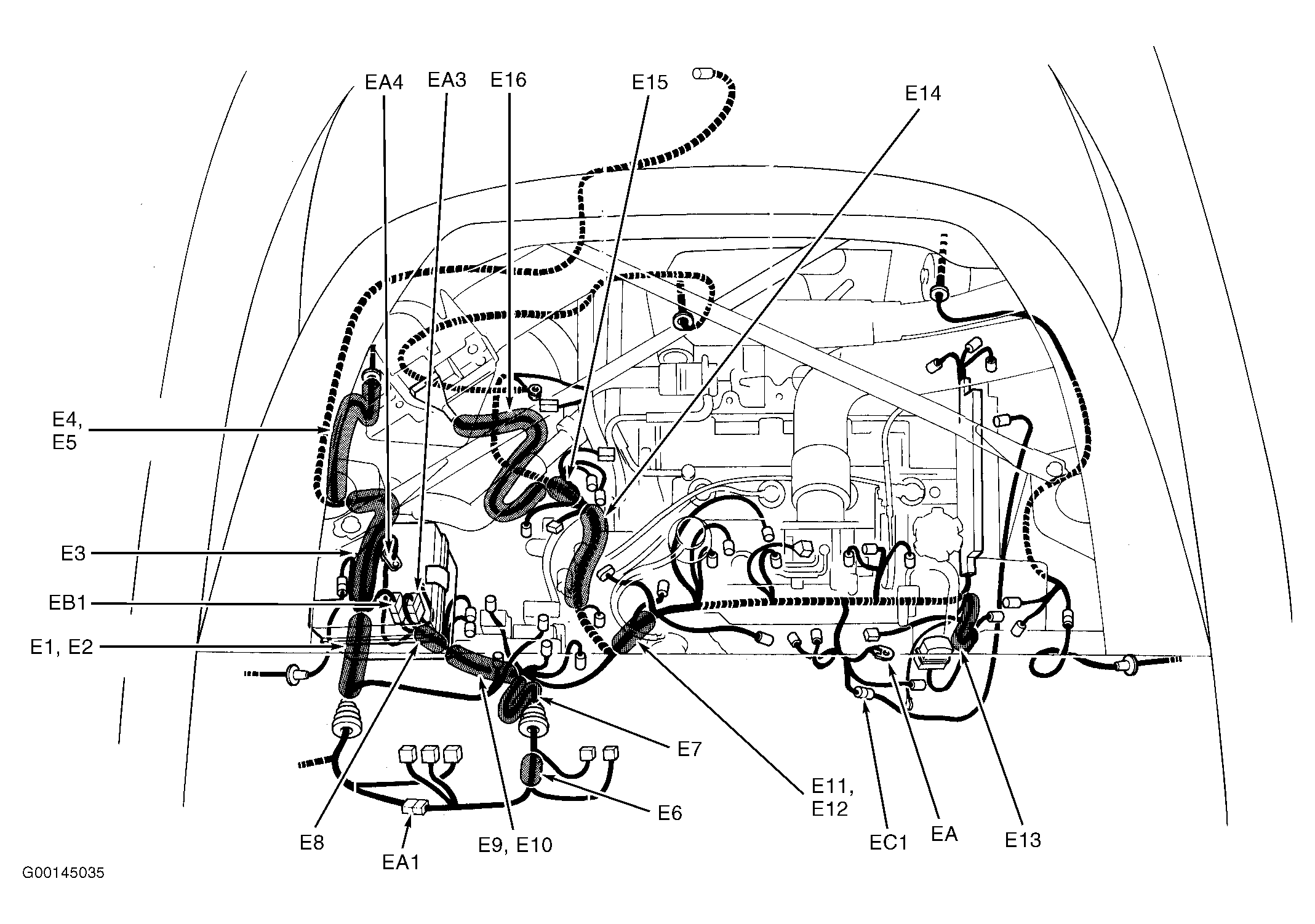

Fig 7: Engine Compartment (2.0L Turbo)

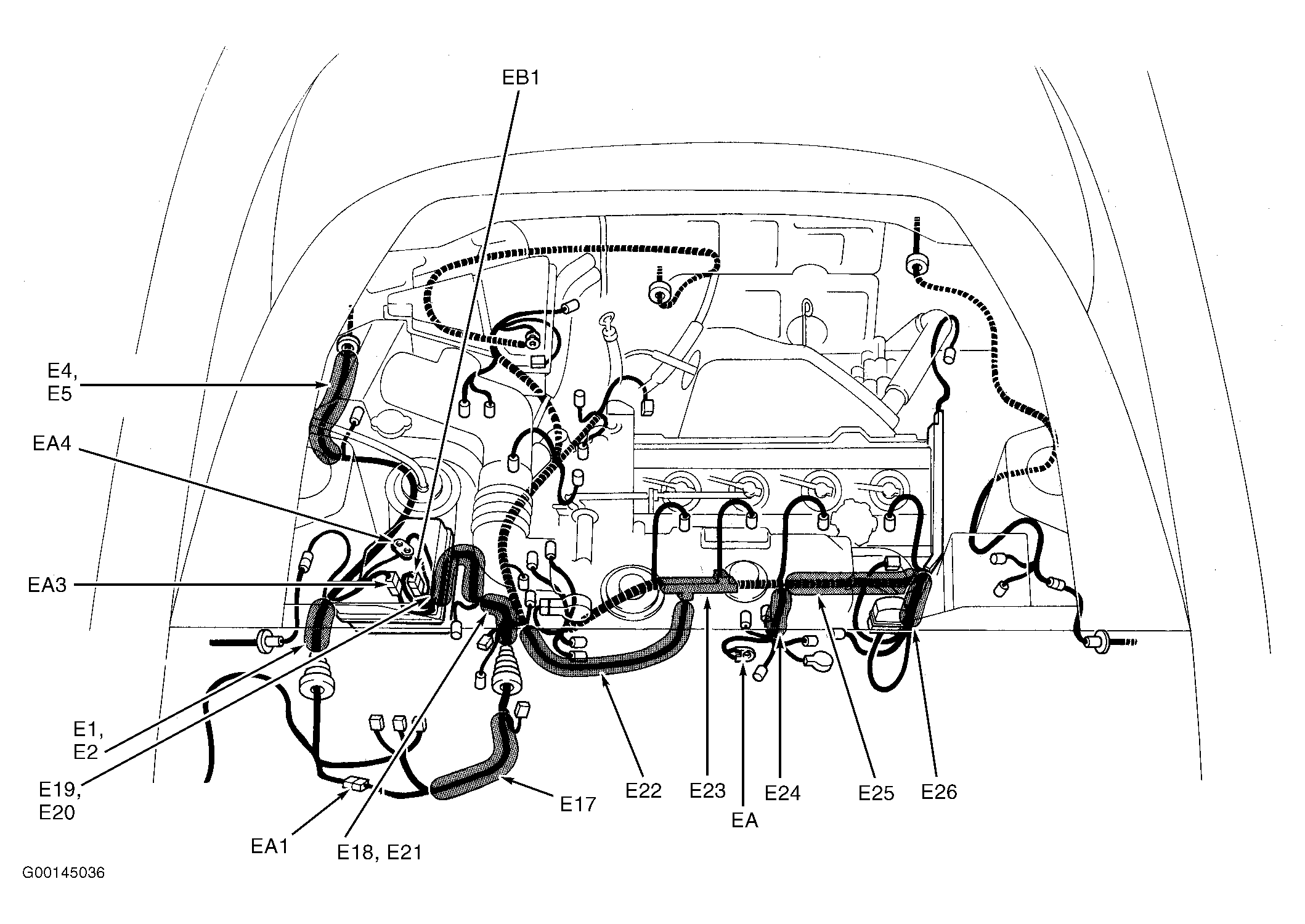

Fig 8: Engine Compartment (2.2L Non-Turbo)

Fig 9: Dash
