Circuit Testing: Notes
NOTE:

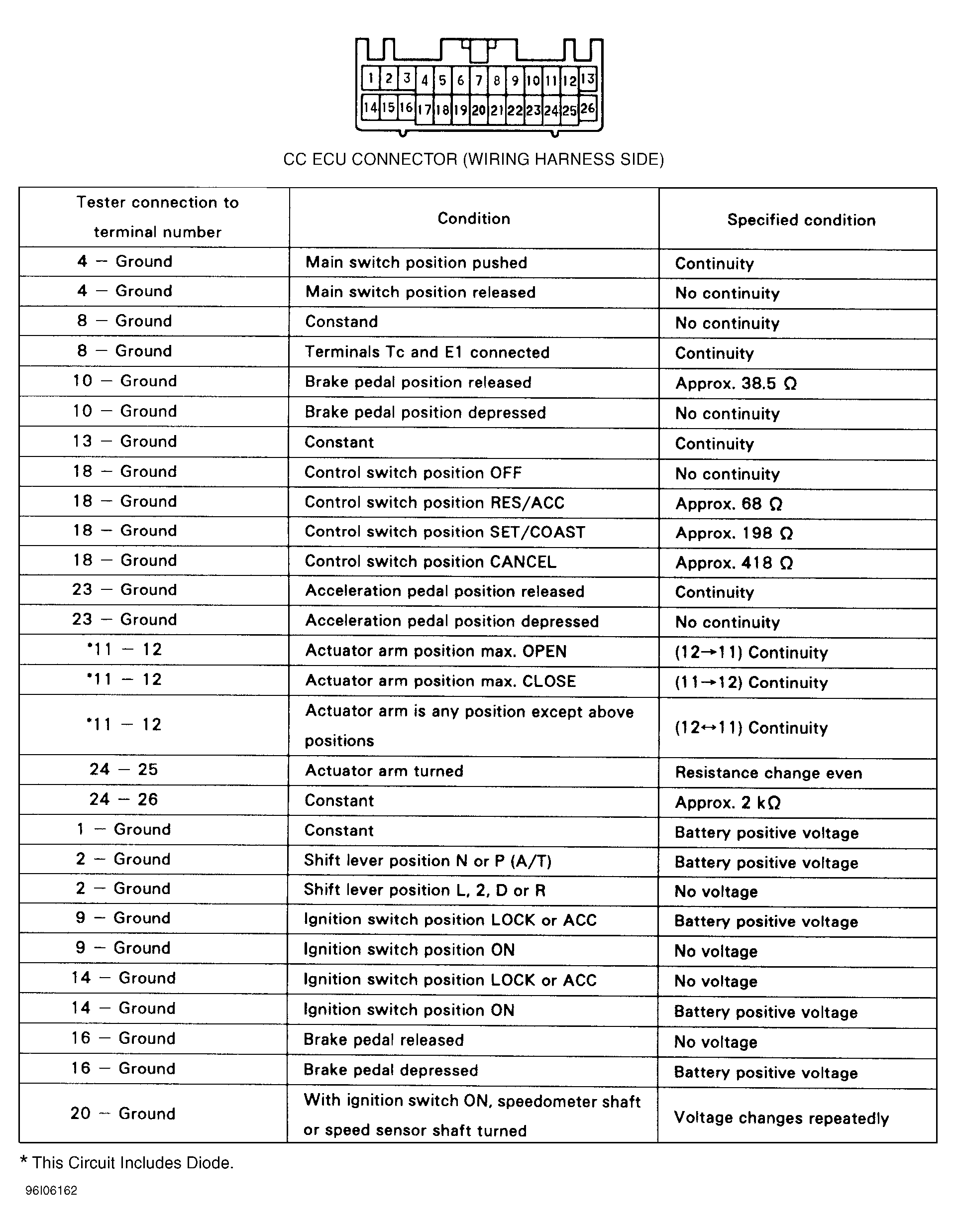

To identify CC ECU connector terminals, see
Figure
. To help identify all other cruise control related connector terminals and wire colors, see
WIRING DIAGRAM
.
