Home >> Toyota >> 1995 >> Celica GT, 2D Convertible, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - 2.2L >> Diagnostic Testing >> Notes

Diagnostic Testing: Notes

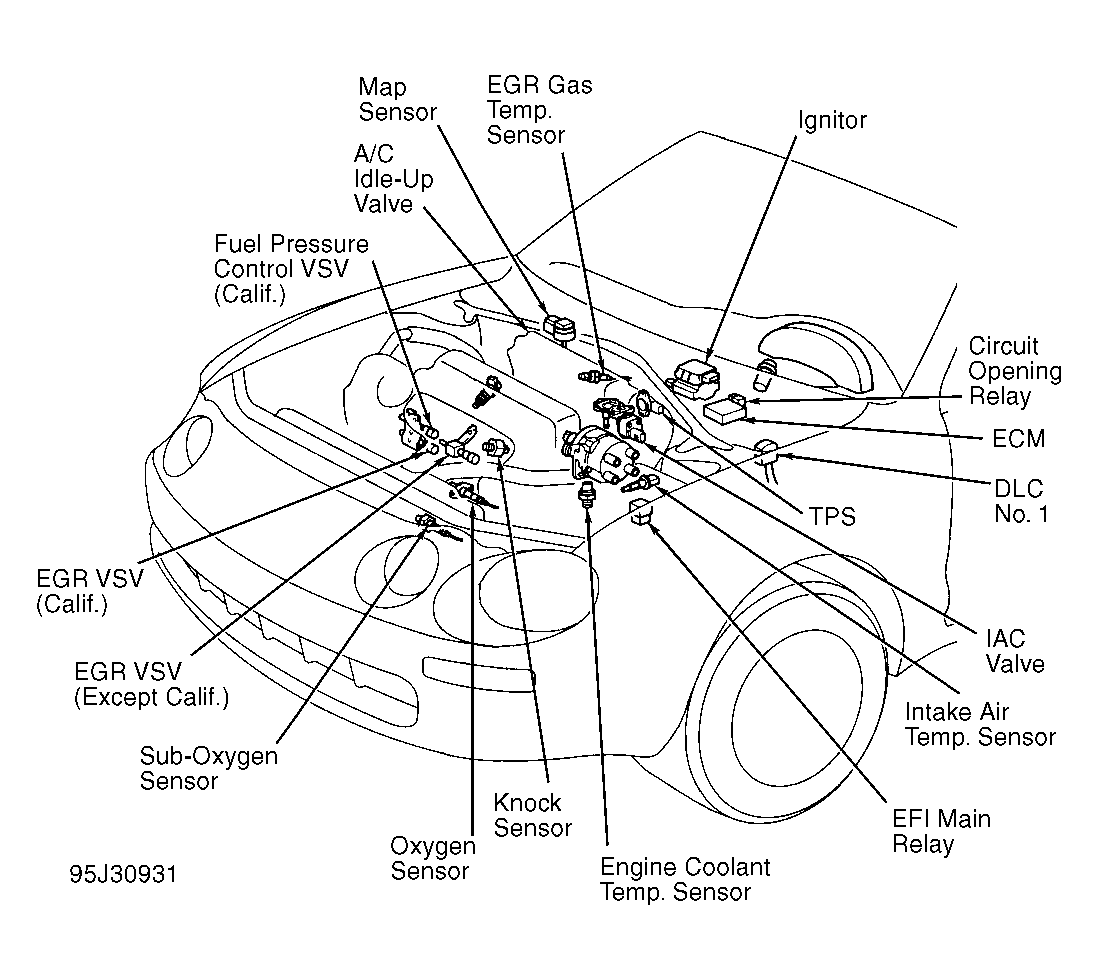

NOTE: See Figure for component locations.
