Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

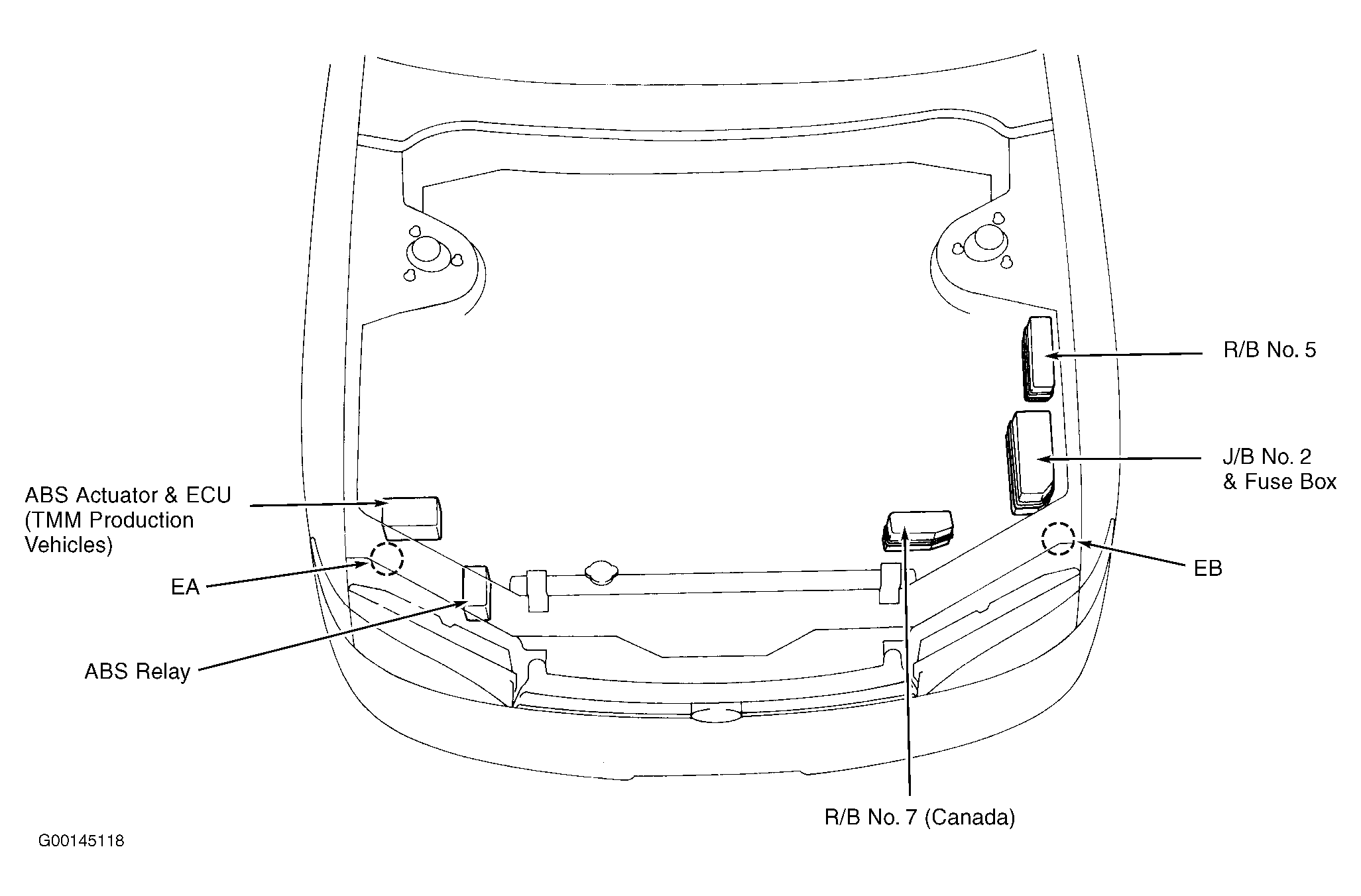

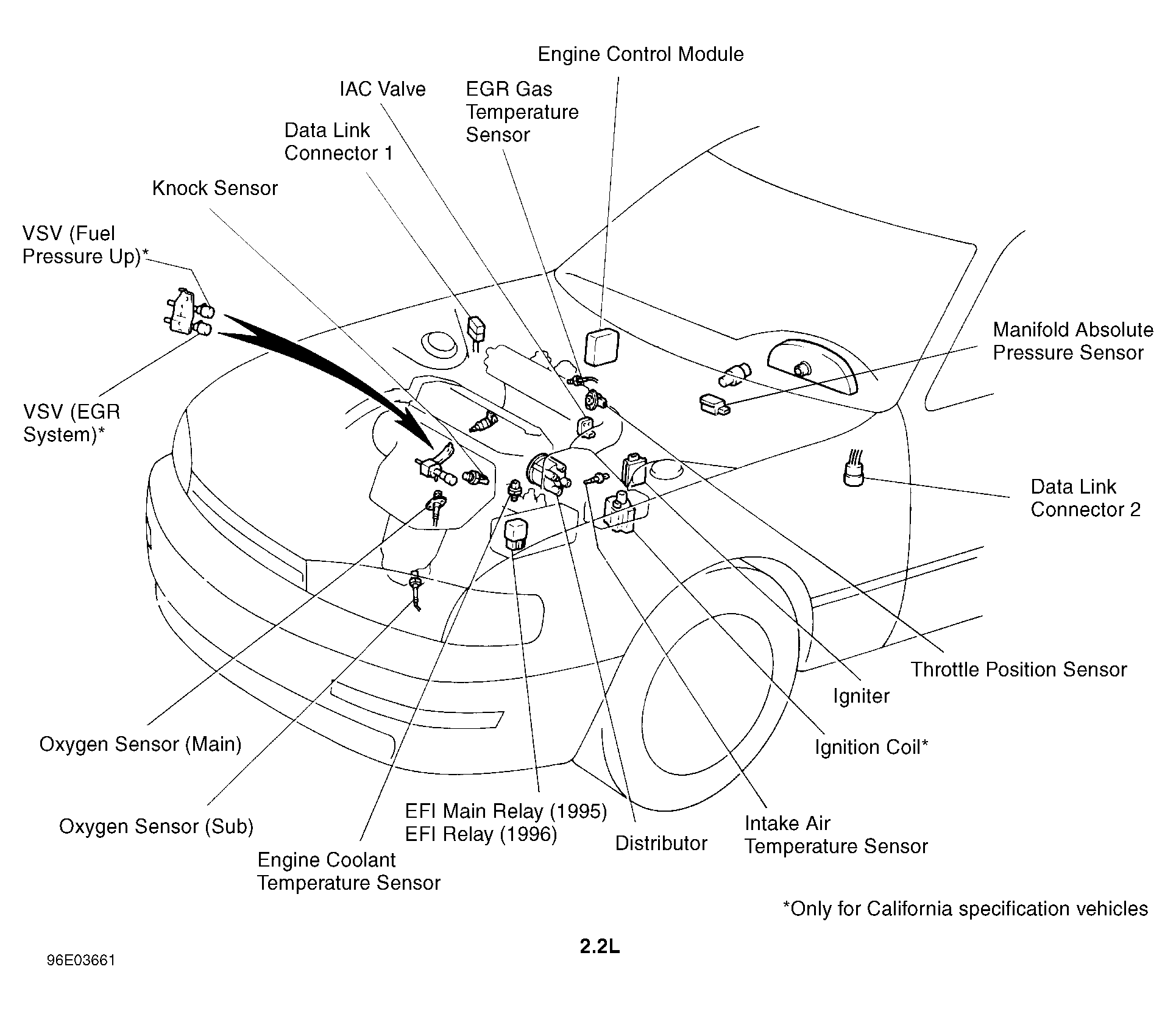

Fig 1: Engine Compartment (2.2L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

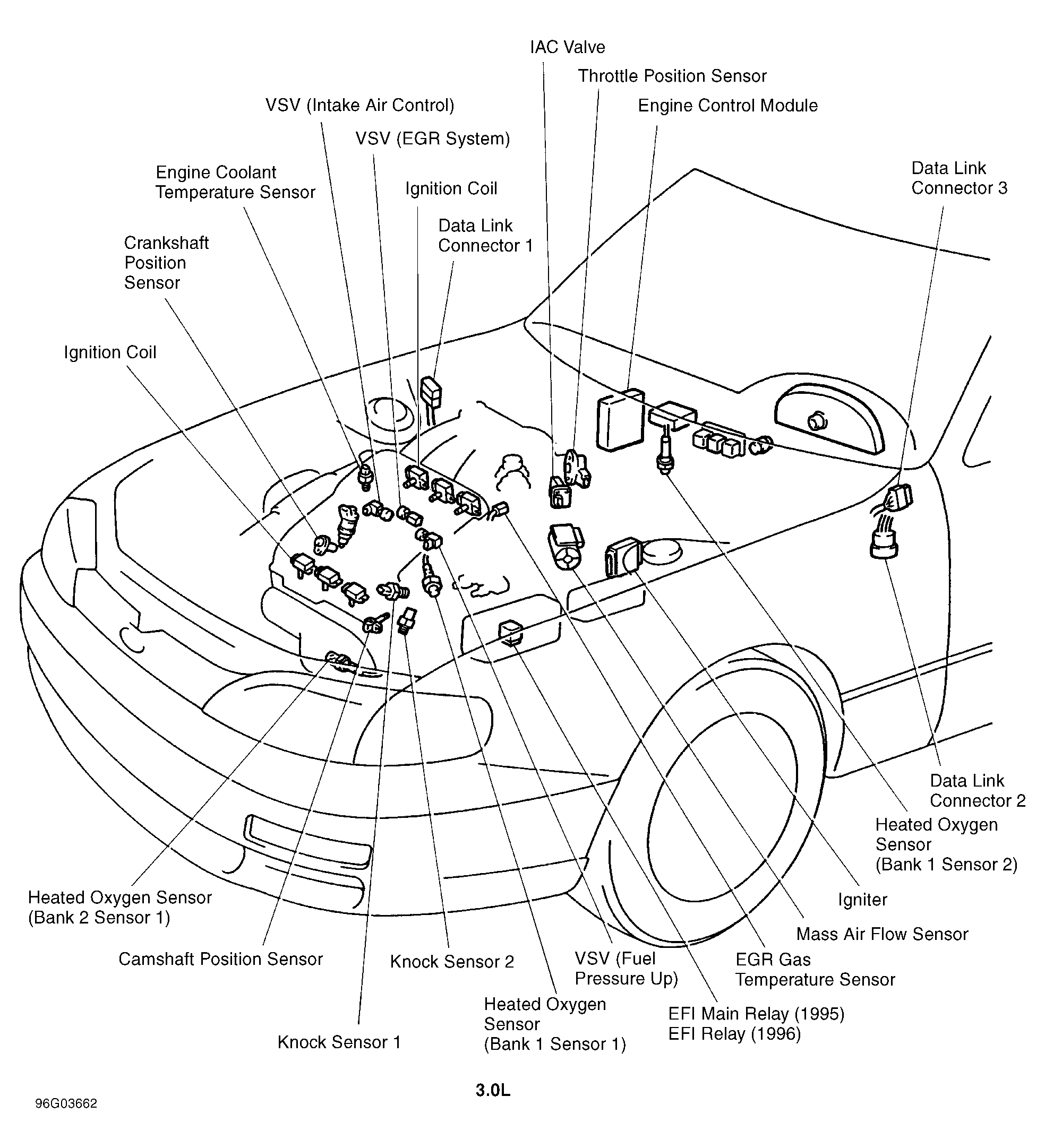

Fig 2: Engine Compartment (3.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 3: Engine Compartment

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

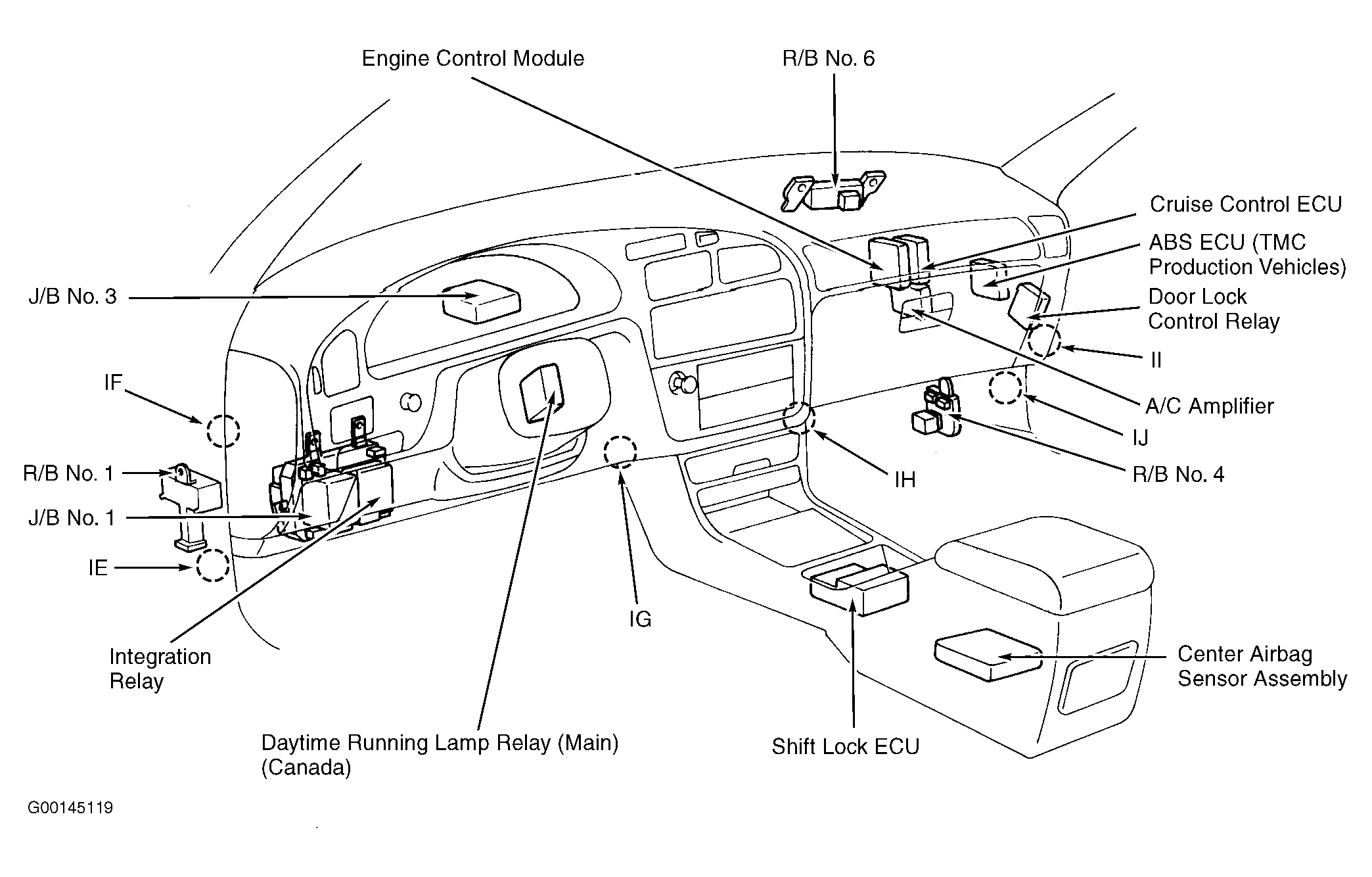

Fig 4: Dash

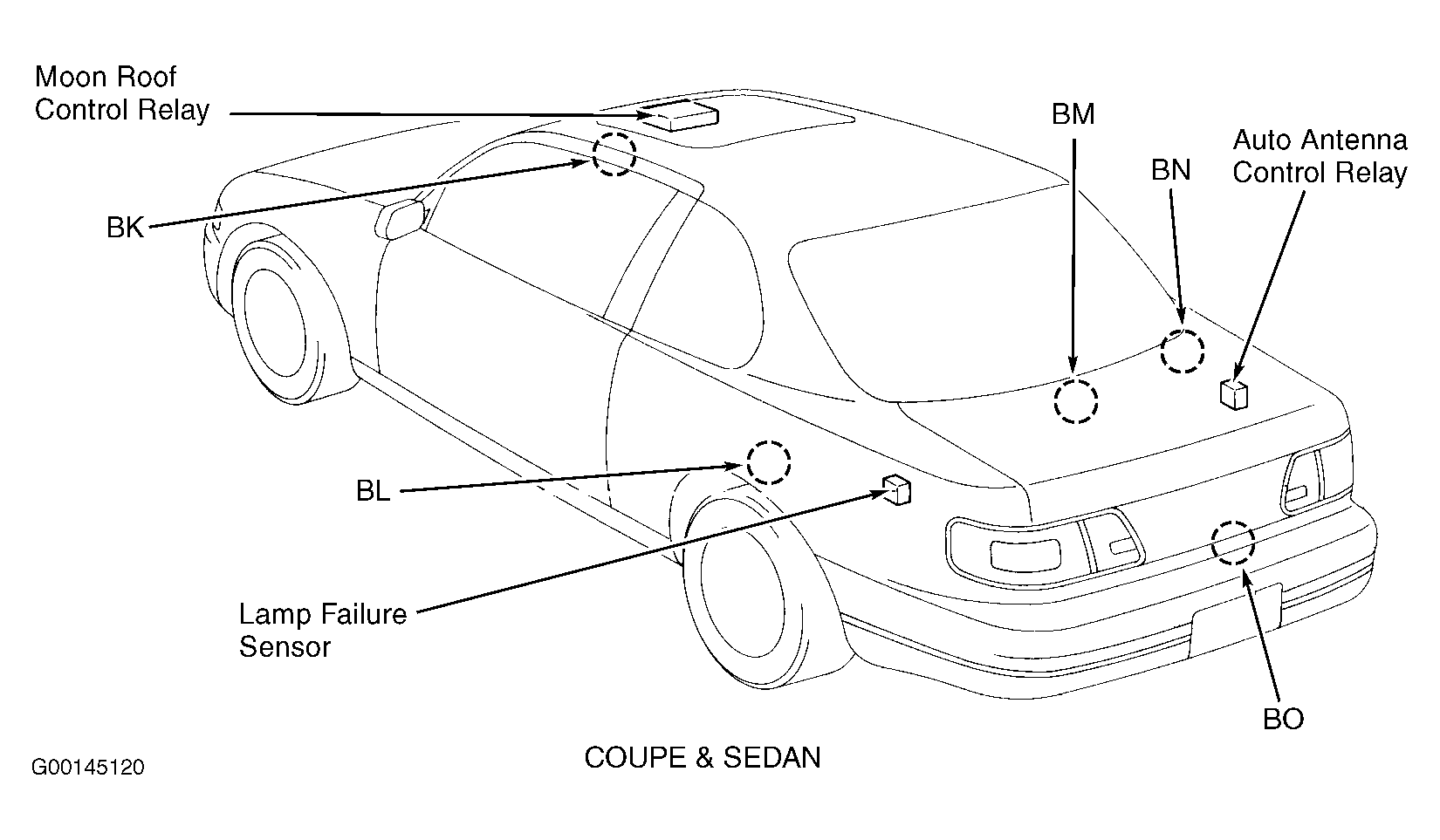

Fig 5: Vehicle Overview (Coupe & Sedan)

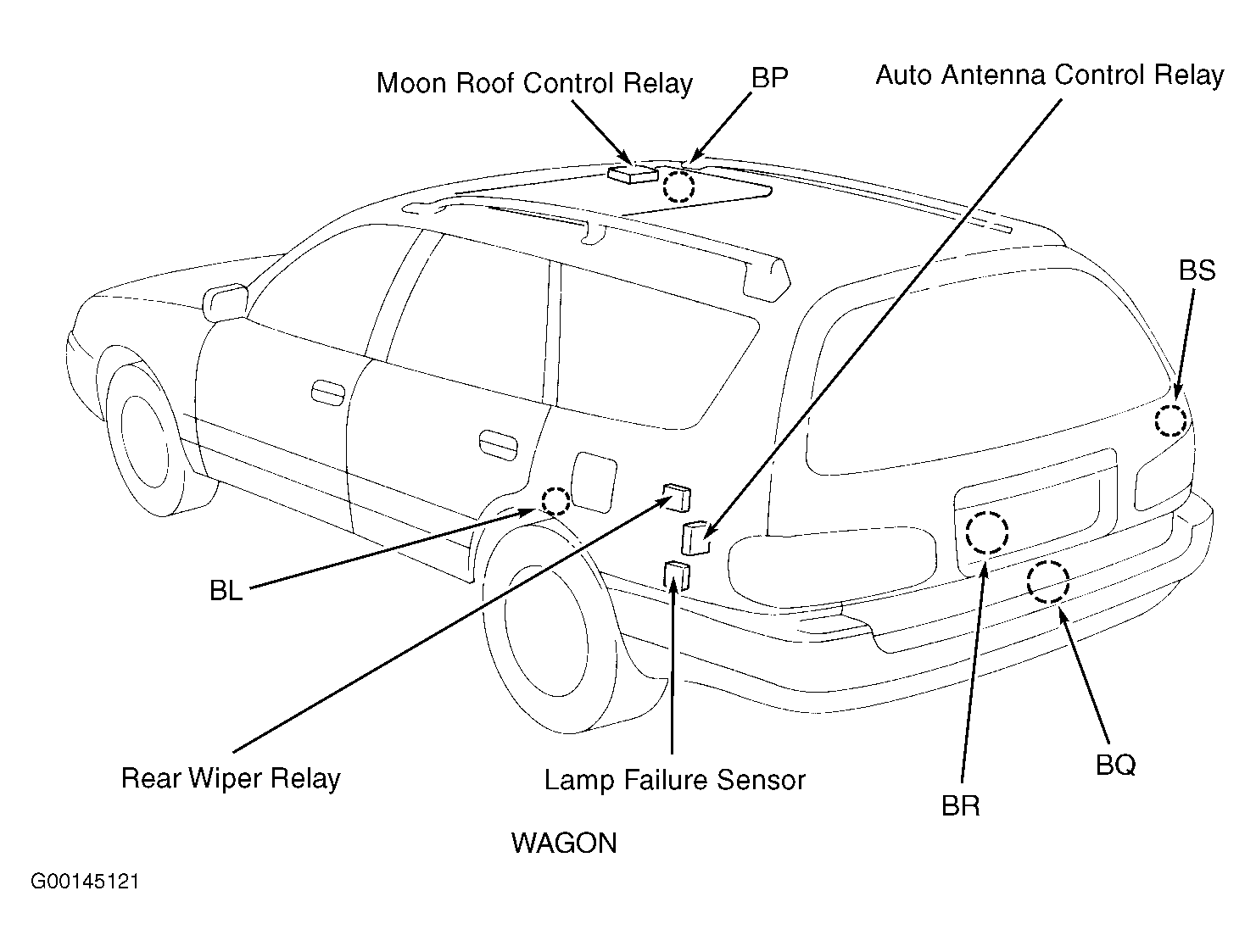

Fig 6: Vehicle Overview (Wagon)
