Stop Light Switch Circuit

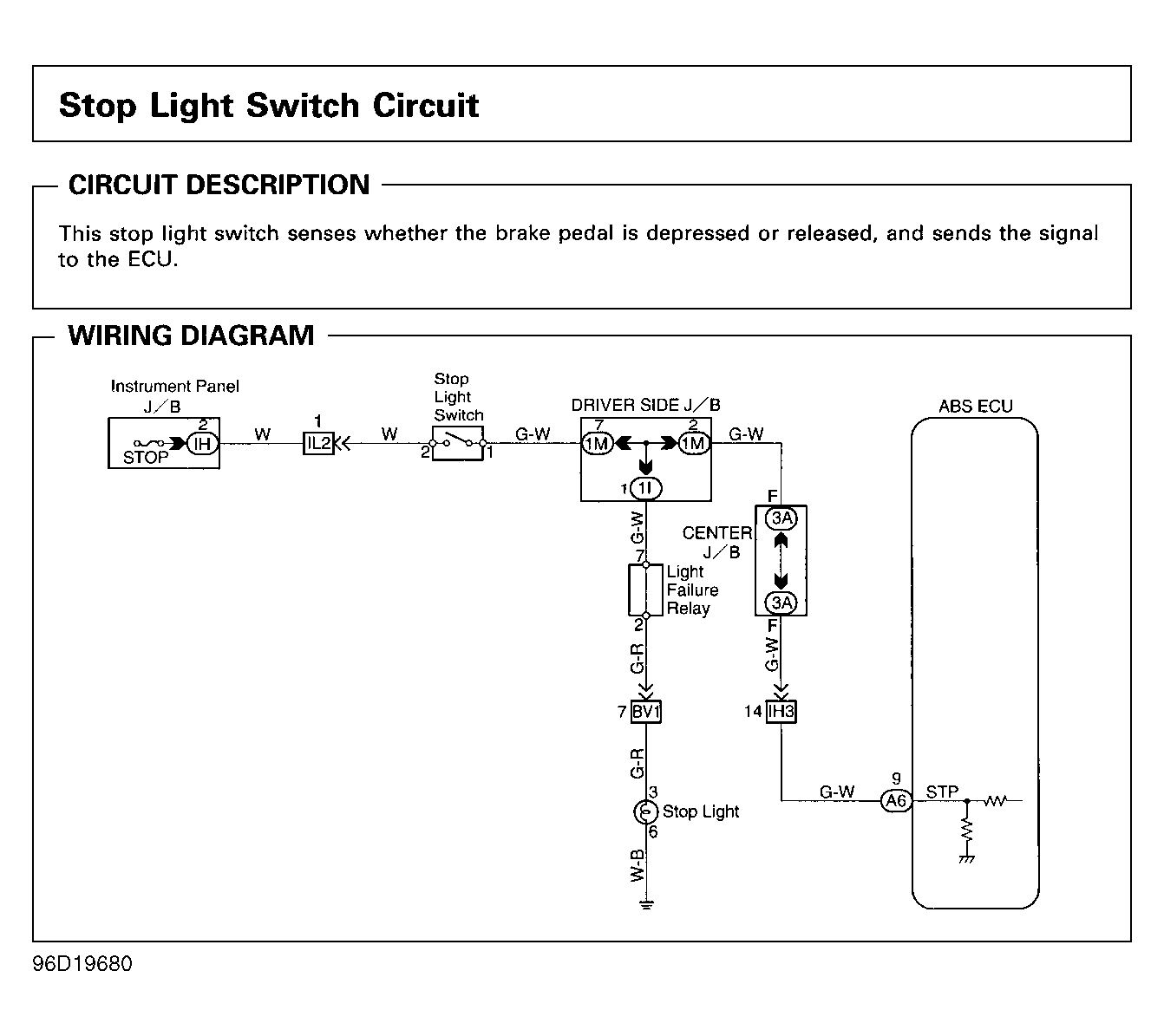

Fig 1: STOP LIGHT SWITCH CIRCUIT CHART (1 OF 2)
G96D19680Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

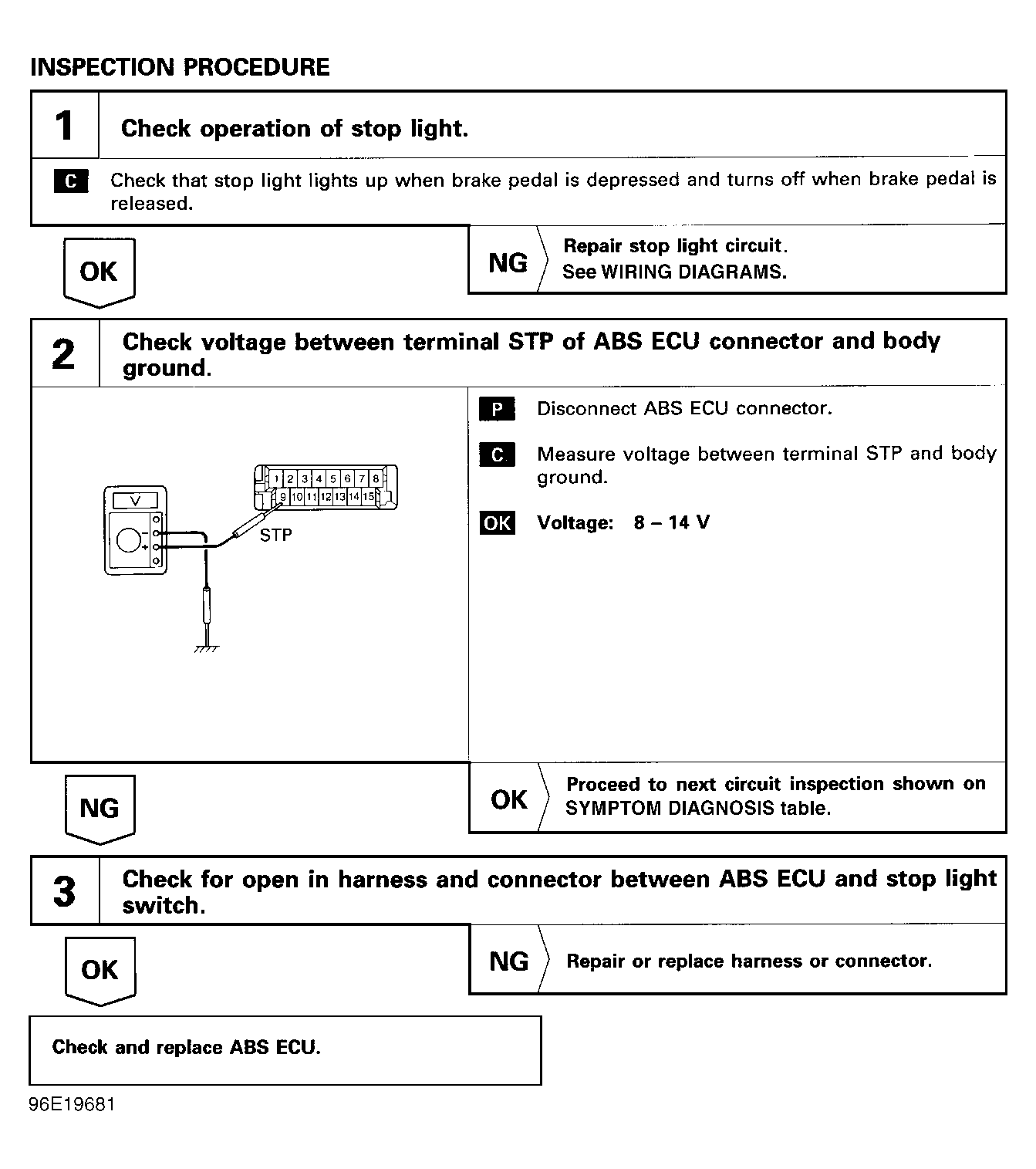

Fig 2: STOP LIGHT SWITCH CIRCUIT CHART (2 OF 2)
G96E19681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
