Abs Warning Light Circuit

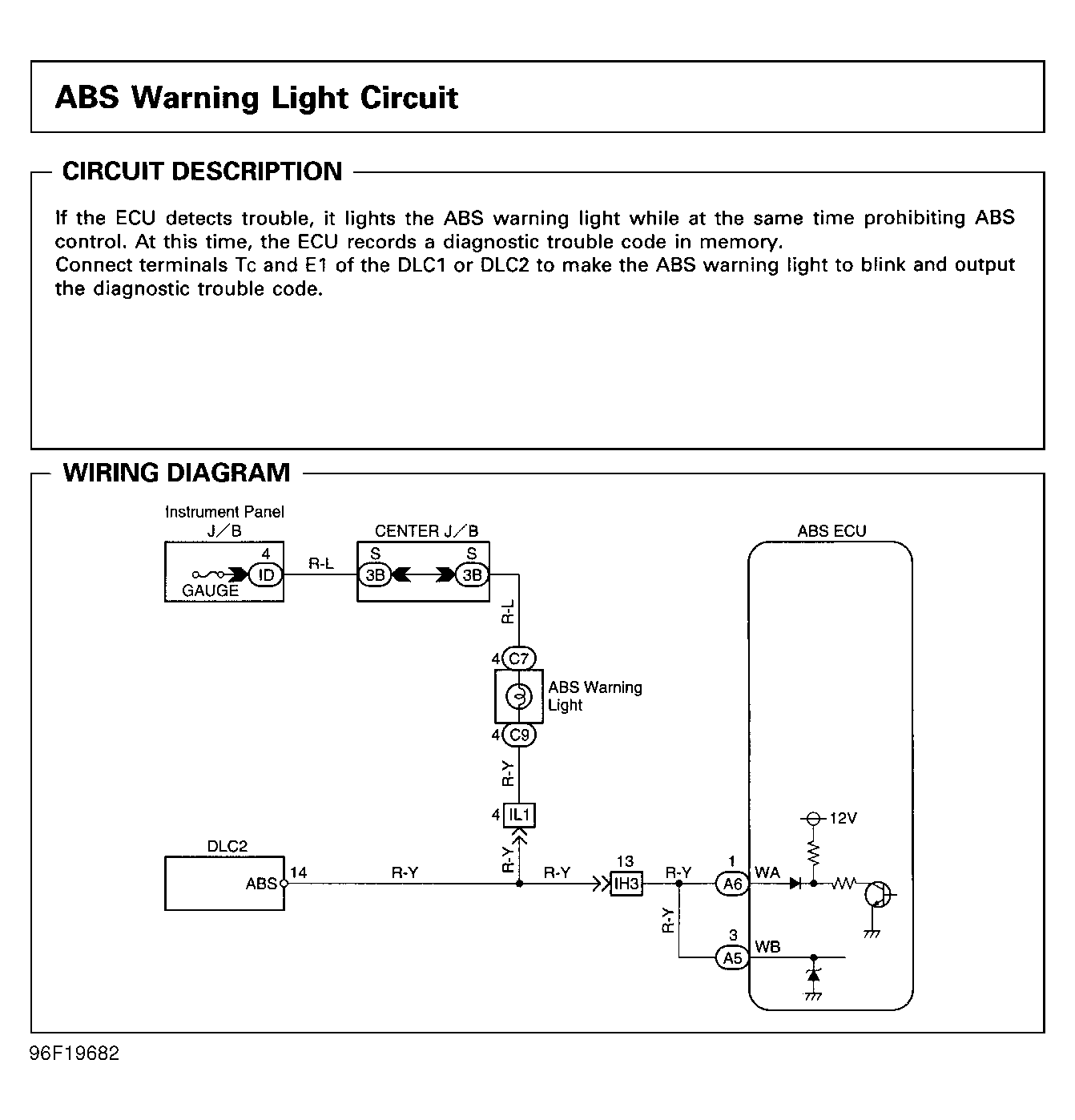

Fig 1: ABS WARNING LIGHT CIRCUIT CHART (1 OF 2)
G96F19682Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

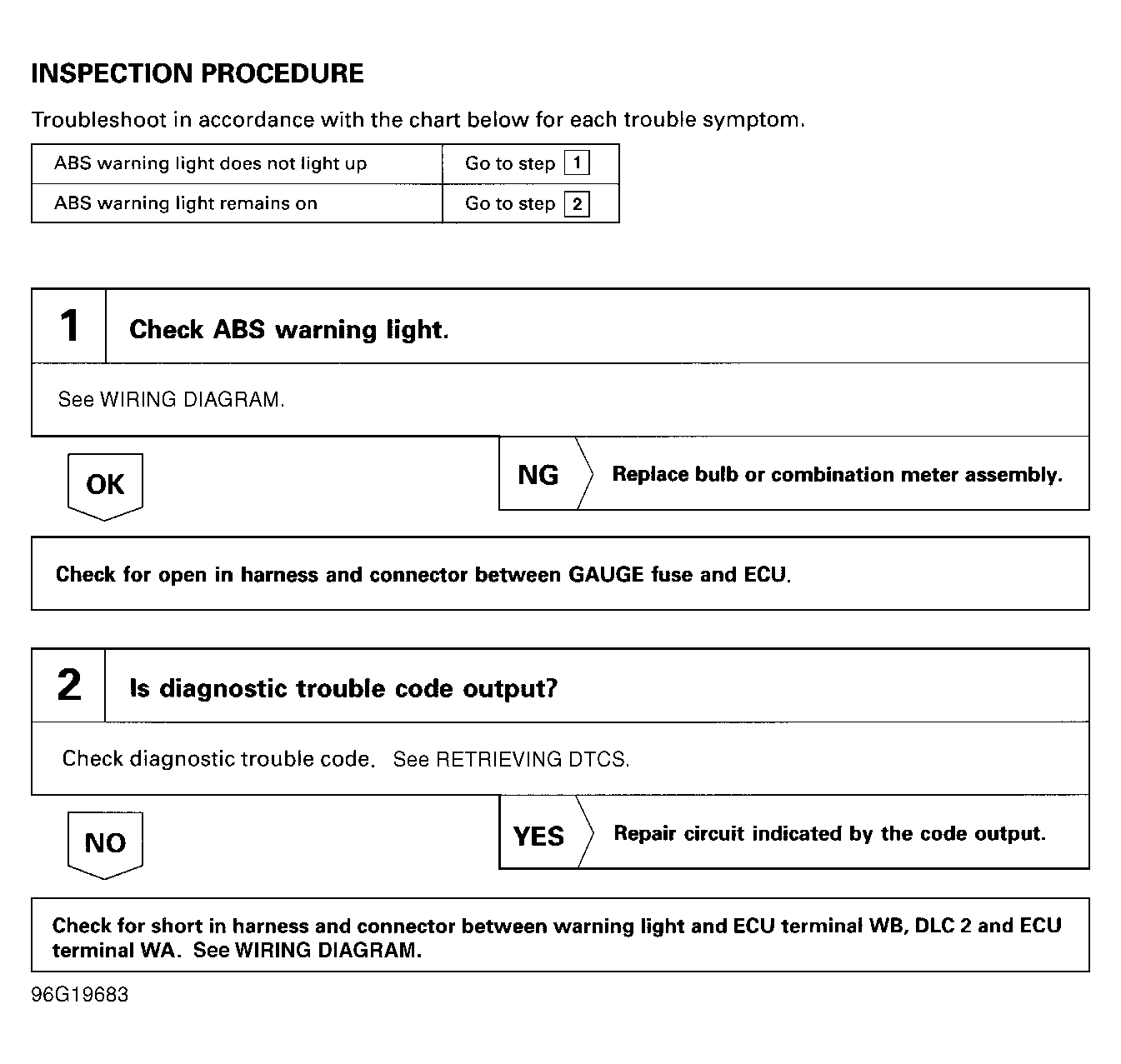

Fig 2: ABS WARNING LIGHT CIRCUIT CHART (2 OF 2)
G96G19683Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
