Intake Air Control Valve: Installation

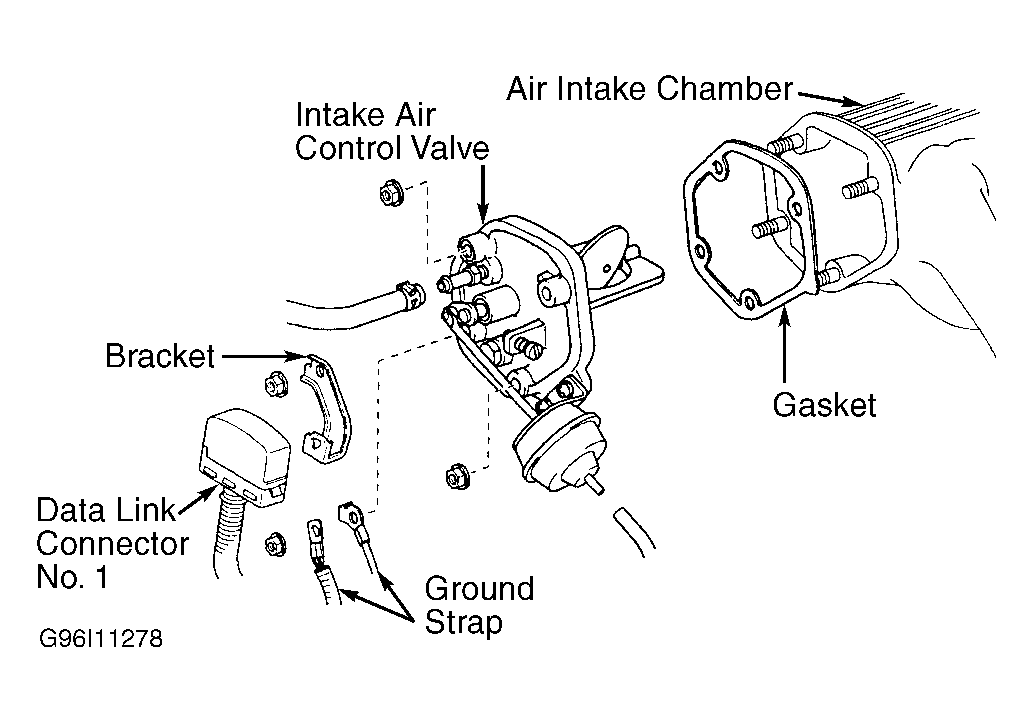

To install, reverse removal procedure using NEW gasket. Apply Seal Packing (08826-00080) at designated areas and a light coat of engine oil at rubber area on intake air control valve before installing. See Fig 2. Tighten nuts to specification. Refer to TORQUE SPECIFICATIONS .
