Cruise Control Switch Test

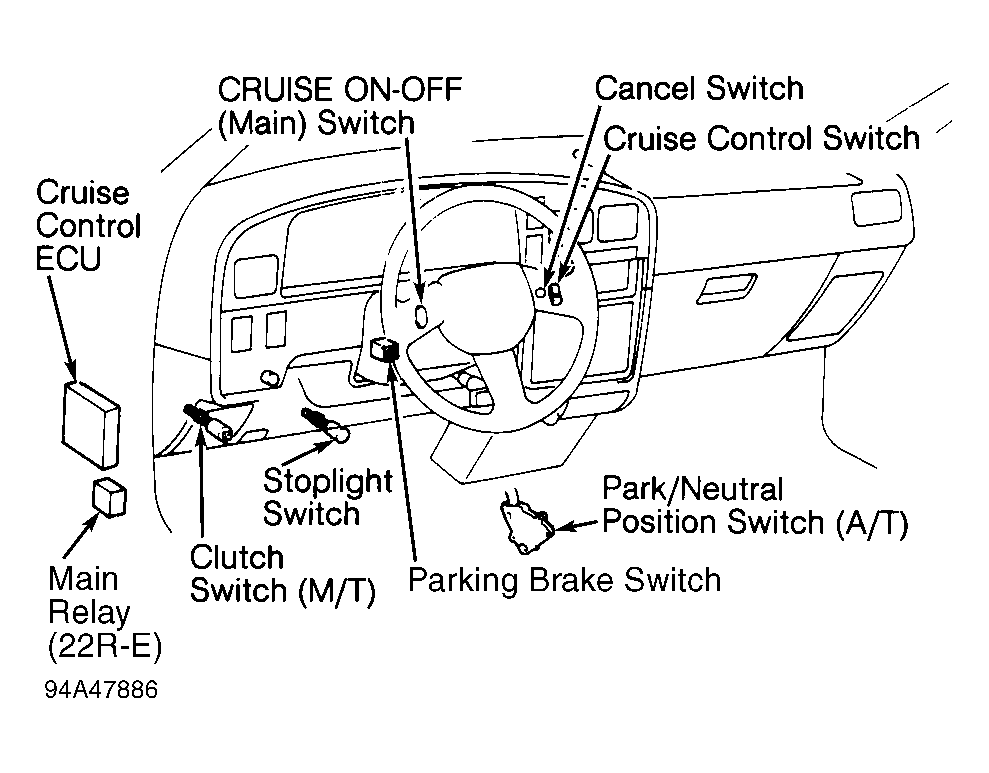

Locate cruise control switch connectors behind steering wheel. See Figure. Disconnect switch connector. Measure resistance between control switch connector terminals. See TESTING CRUISE CONTROL SWITCH table. If resistance is not as specified, replace switch.
TESTING CRUISE CONTROL SWITCH
| Control Switch Position | (1) Ohms | ||
|---|---|---|---|
| OFF | Infinite | ||
| RESUME/ACCEL | 68 | ||
| SET/COAST | 198 | ||
| CANCEL | 418 | ||
|
|||
