DTC 21 - Oxygen Sensor Signal

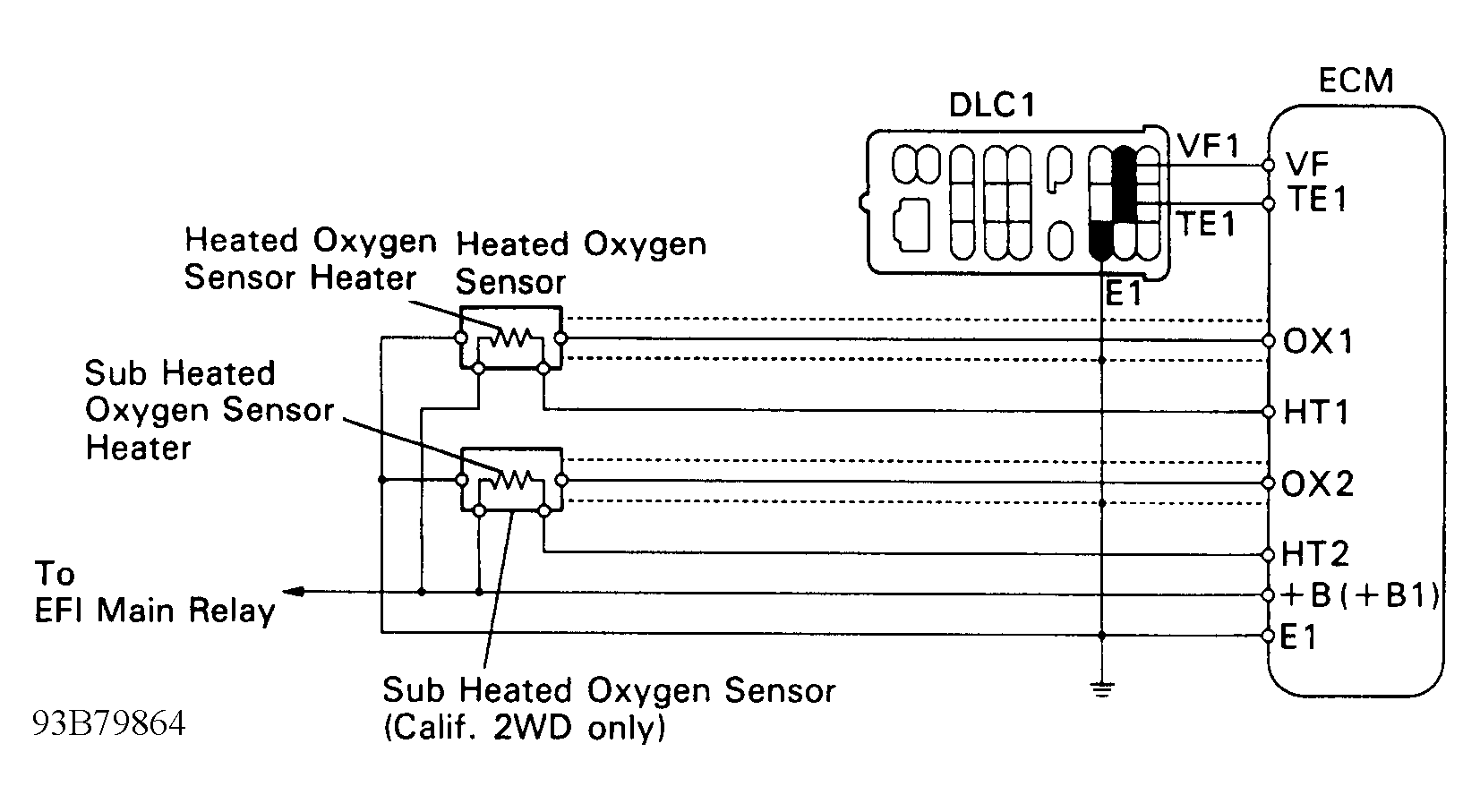

Fig 1: DTC 21 - Schematic
G93B79864Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

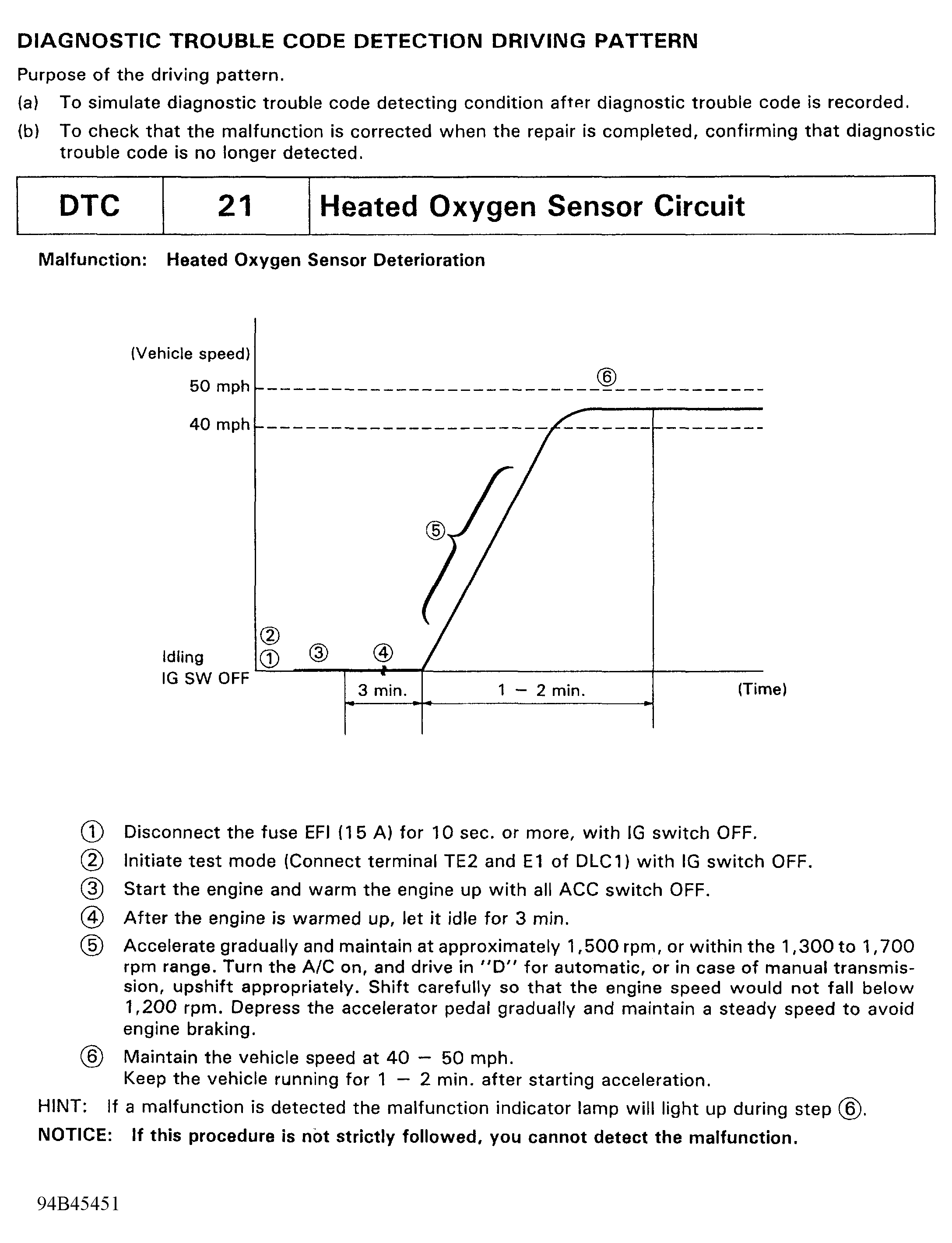

Fig 2: DTC 21 - Driving Detection Pattern (1 Of 2)
G94B45451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

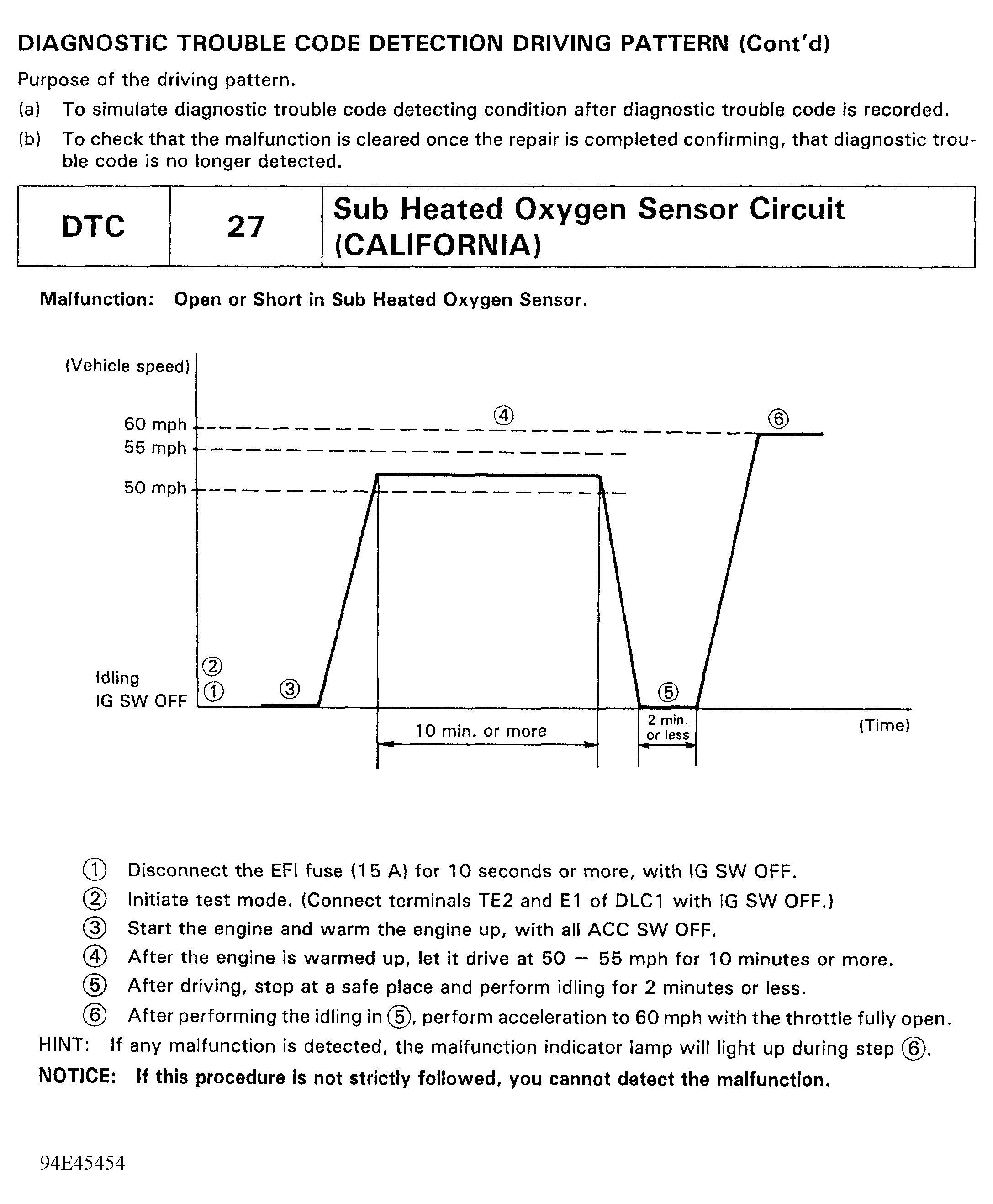

Fig 3: DTC 21 - Driving Detection Pattern (2 Of 2)
G94E45454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

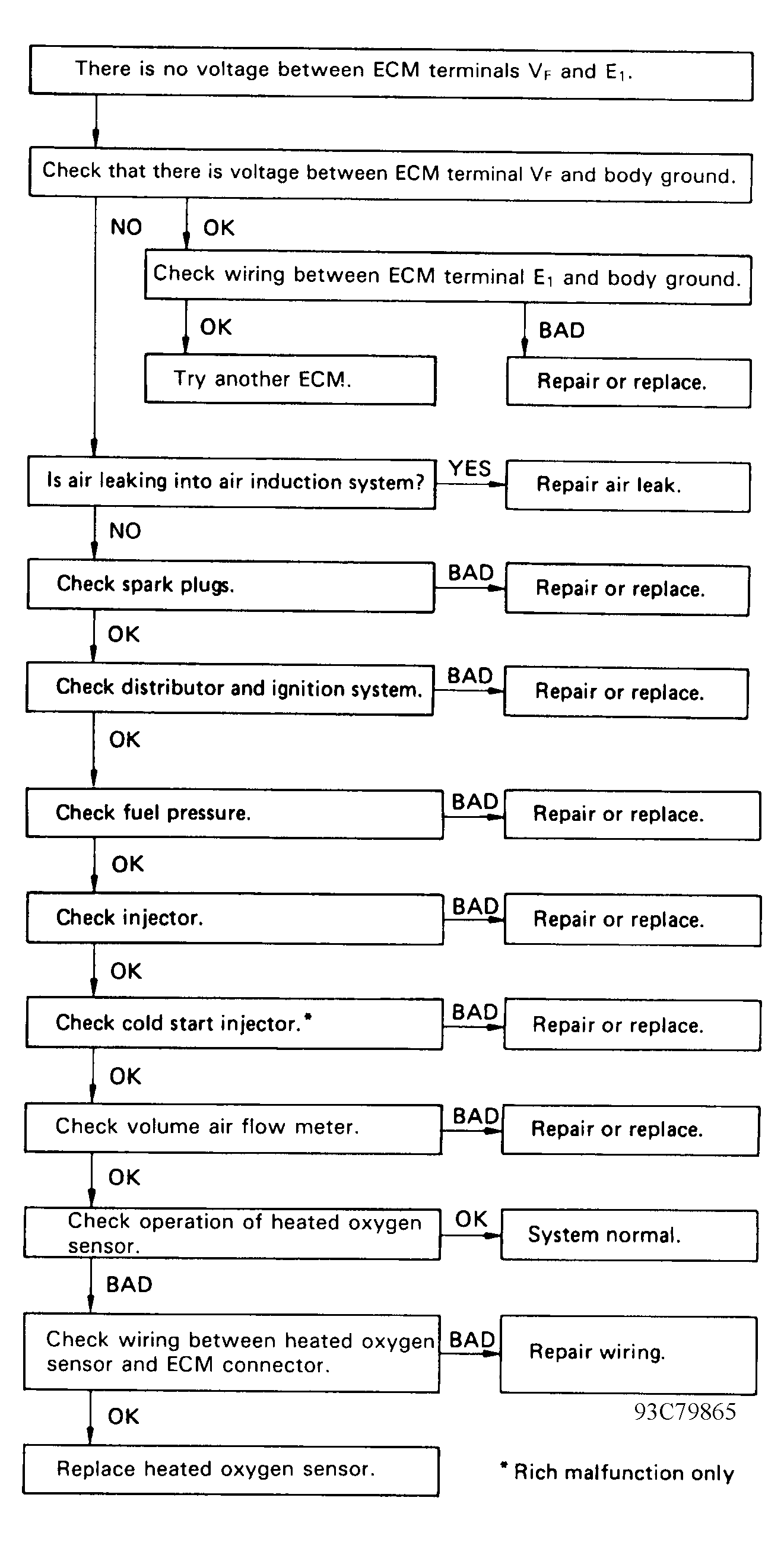

Fig 4: DTC 21 - Diagnostic Flowchart
G93C79865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
