DTC P0401 - Insufficient EGR Flow

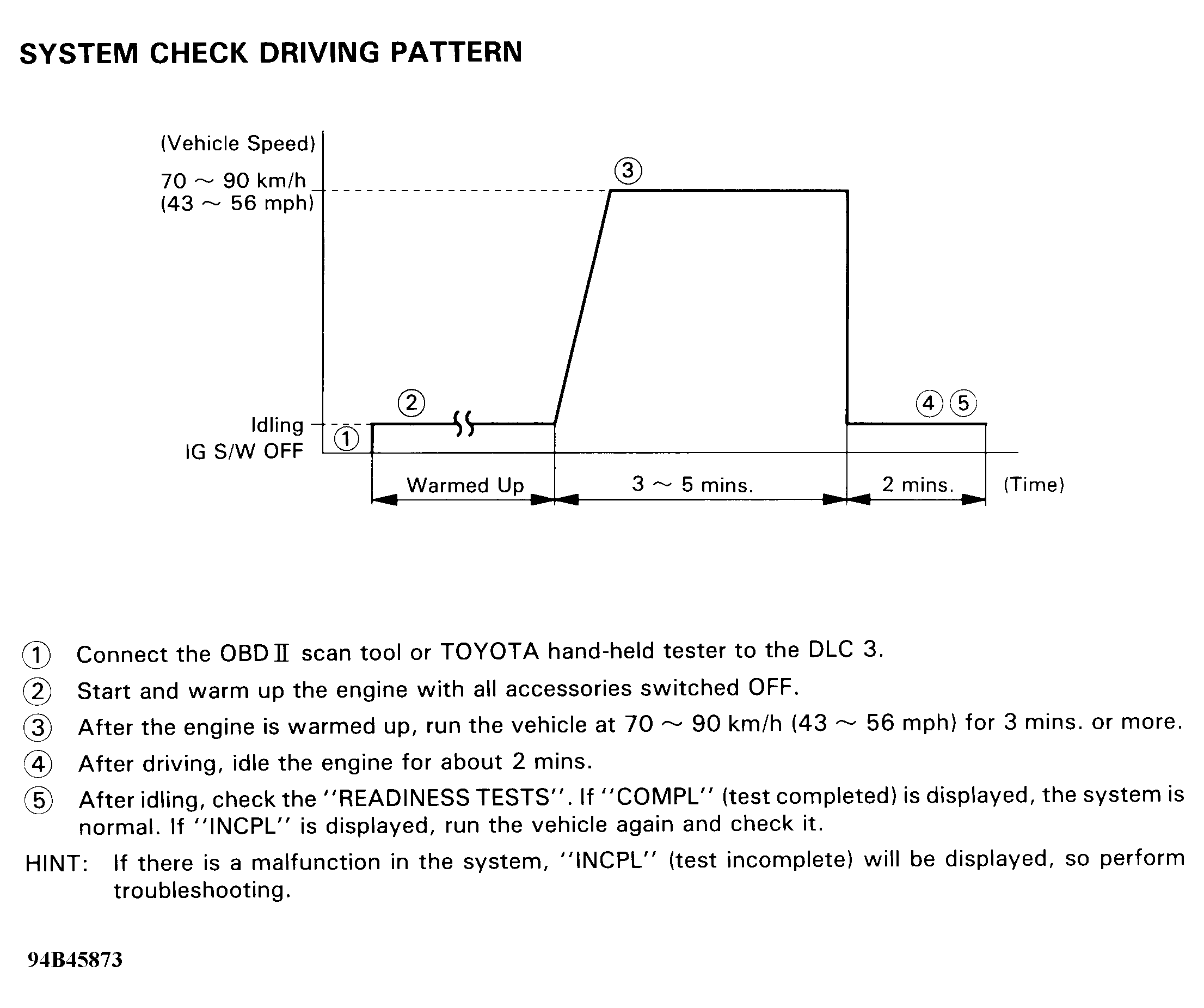

Fig 1: DTC P0401 - Diagnostic Flowchart (1 Of 9)

G94B45873

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

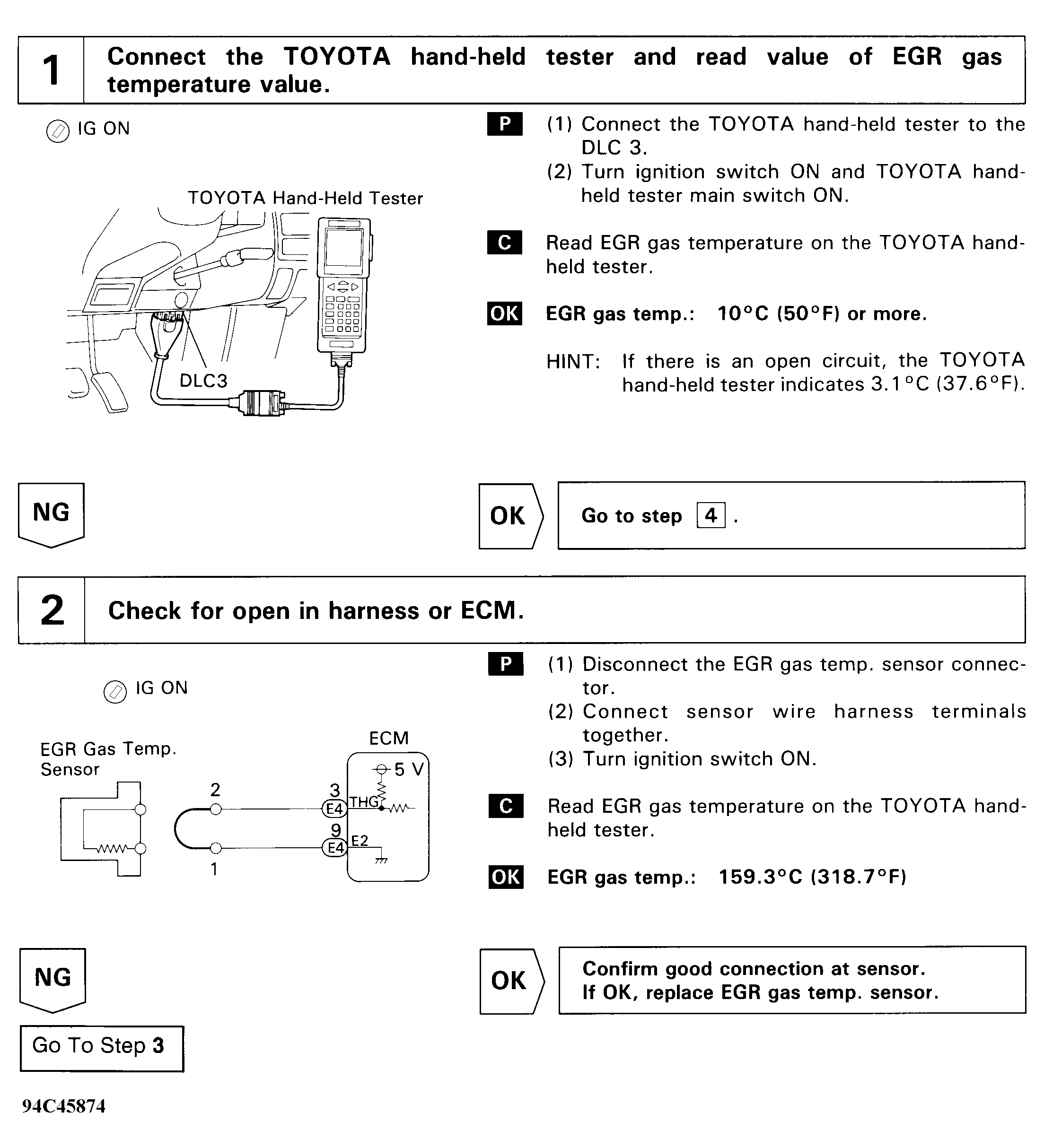

Fig 2: DTC P0401 - Diagnostic Flowchart (2 Of 9)

G94C45874

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

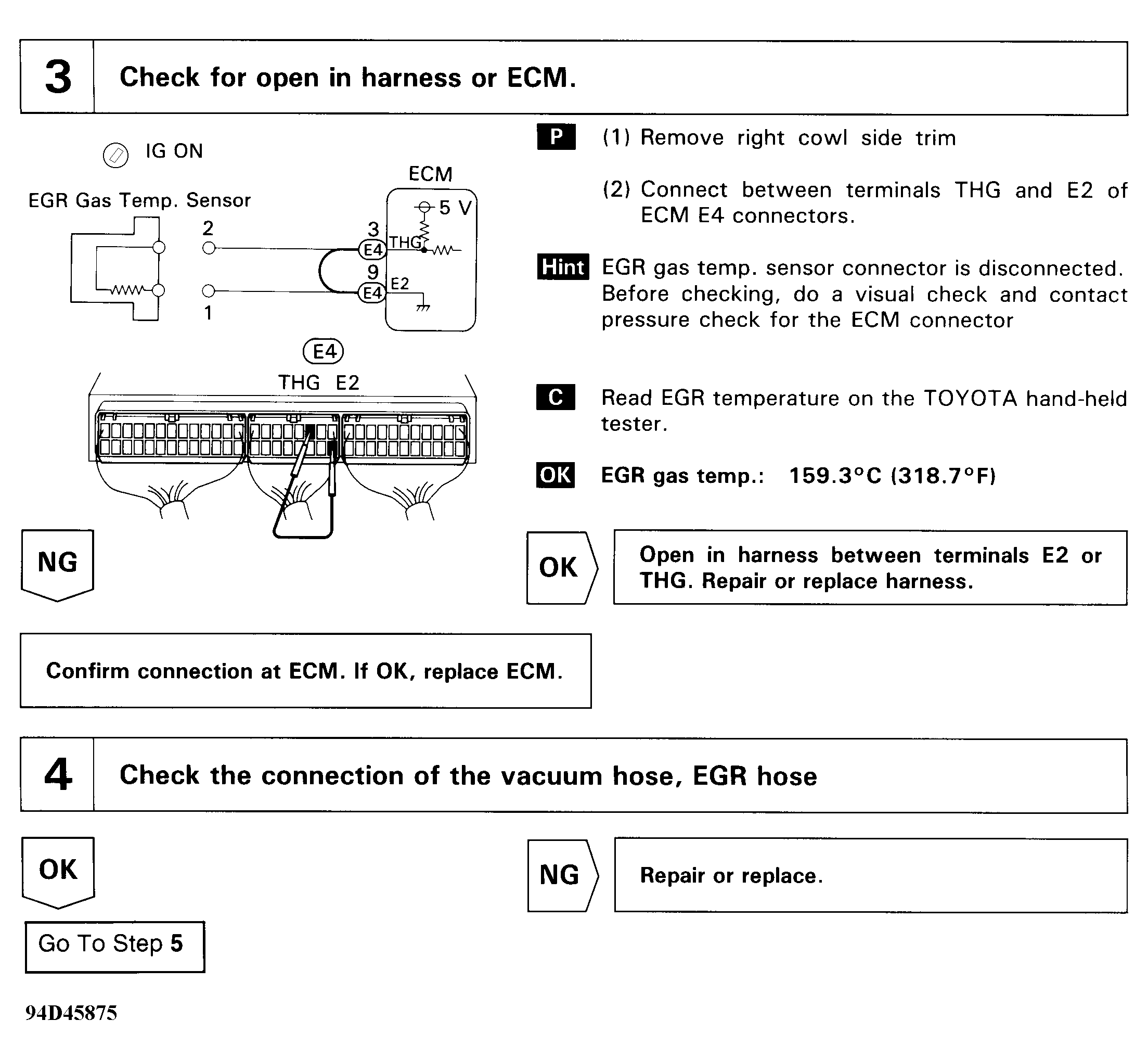

Fig 3: DTC P0401 - Diagnostic Flowchart (3 Of 9)

G94D45875

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

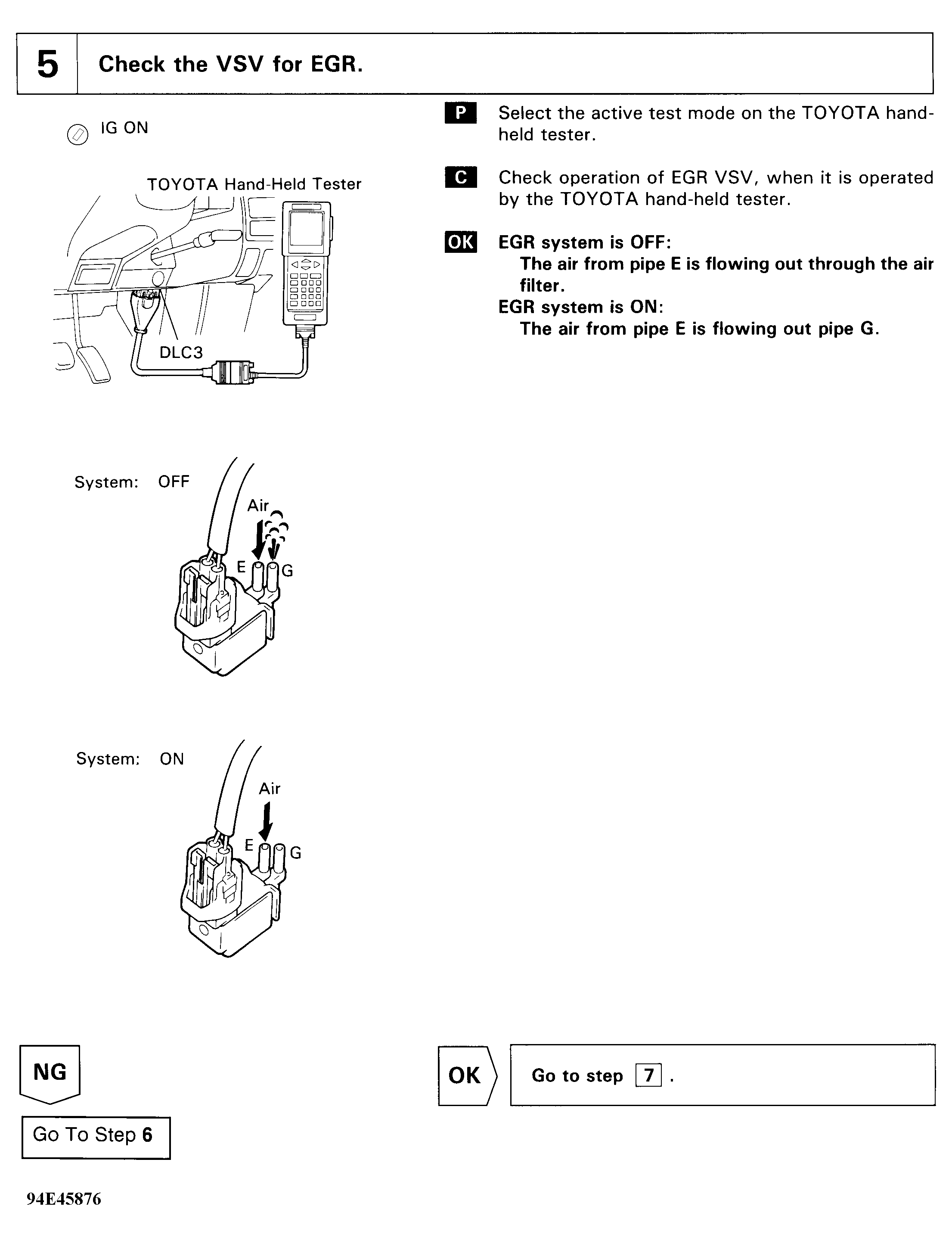

Fig 4: DTC P0401 - Diagnostic Flowchart (4 Of 9)

G94E45876

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

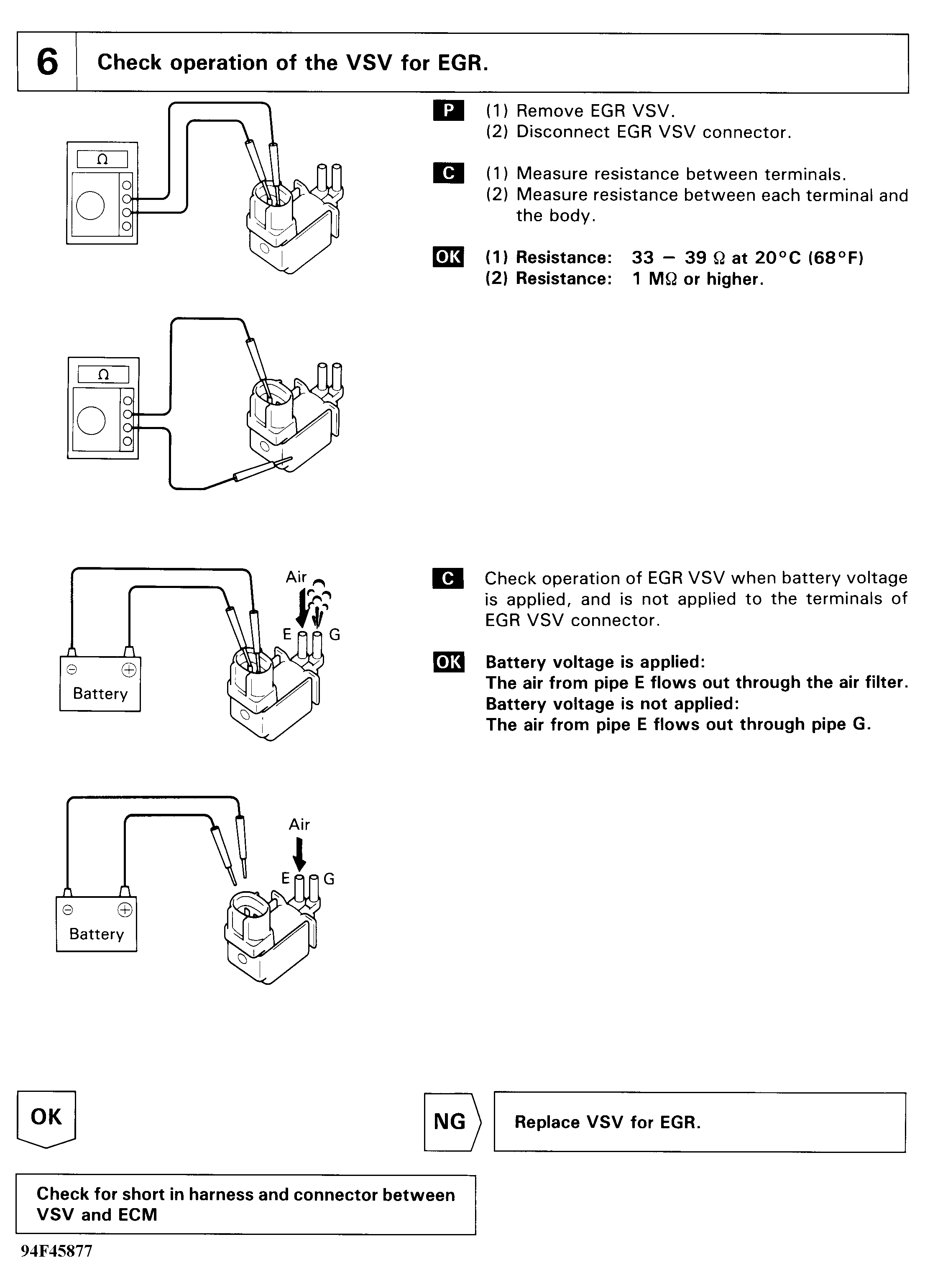

Fig 5: DTC P0401 - Diagnostic Flowchart (5 Of 9)

G94F45877

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

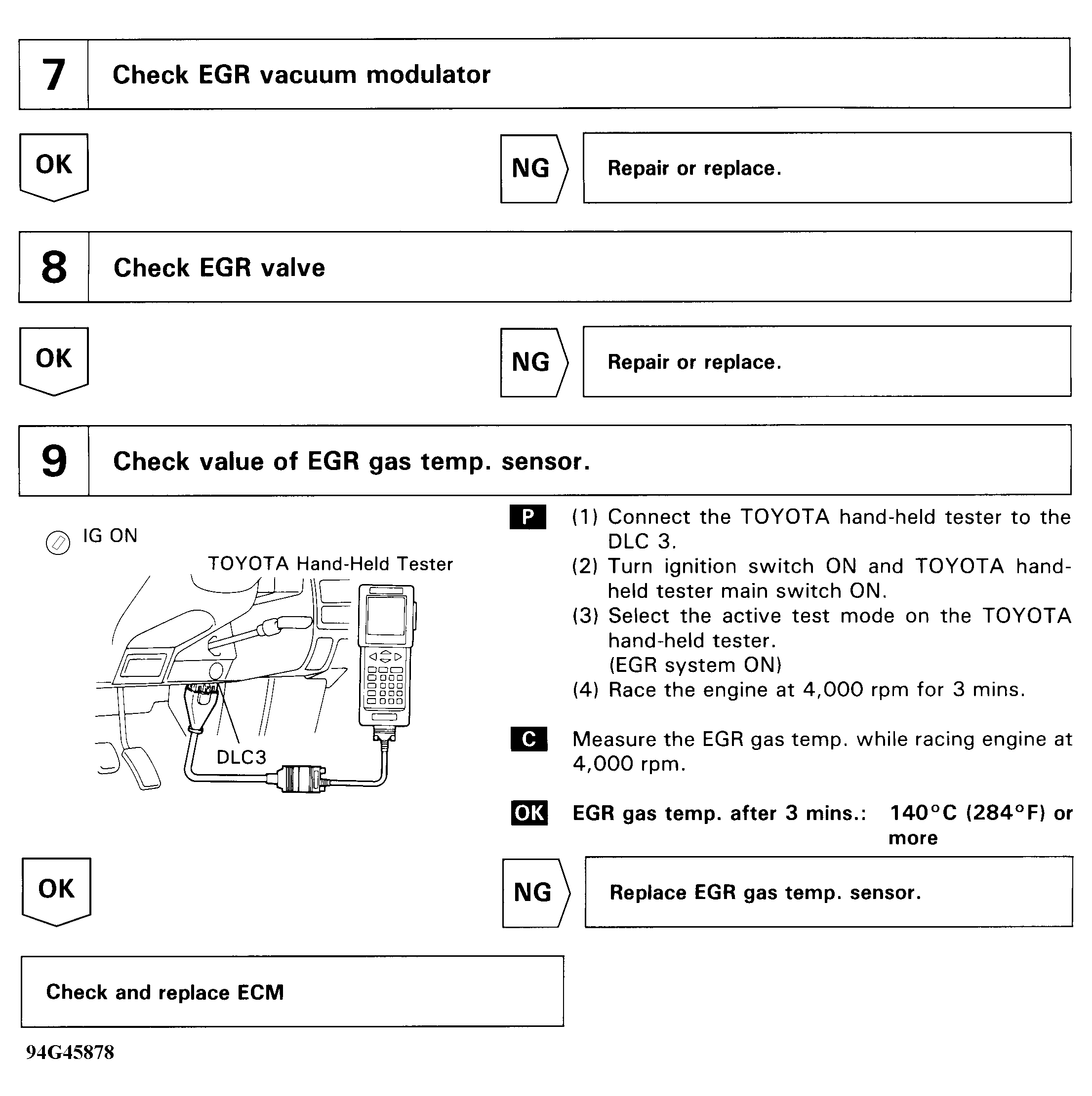

Fig 6: DTC P0401 - Diagnostic Flowchart (6 Of 9)

G94G45878

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

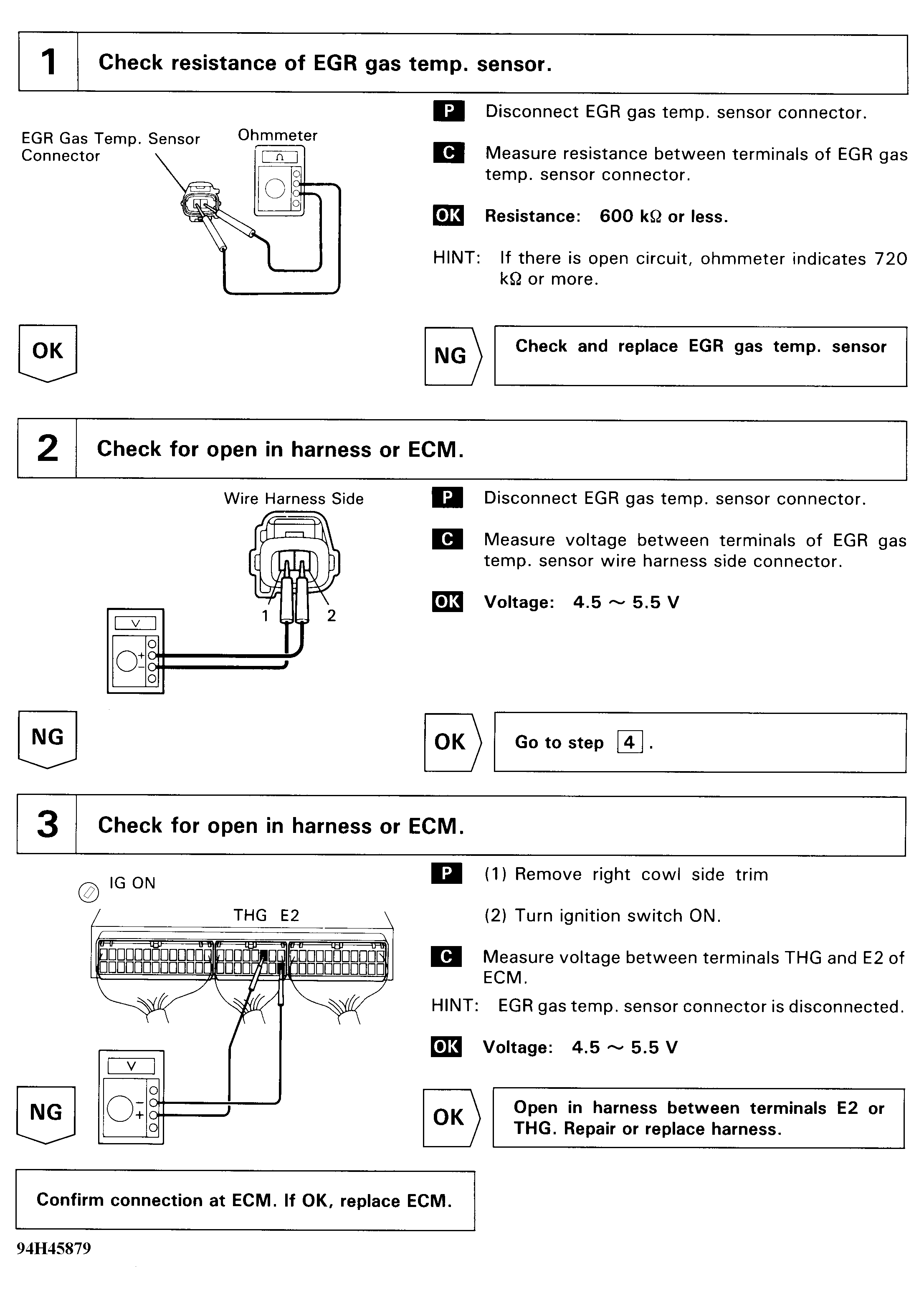

Fig 7: DTC P0401 - Diagnostic Flowchart (7 Of 9)

G94H45879

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

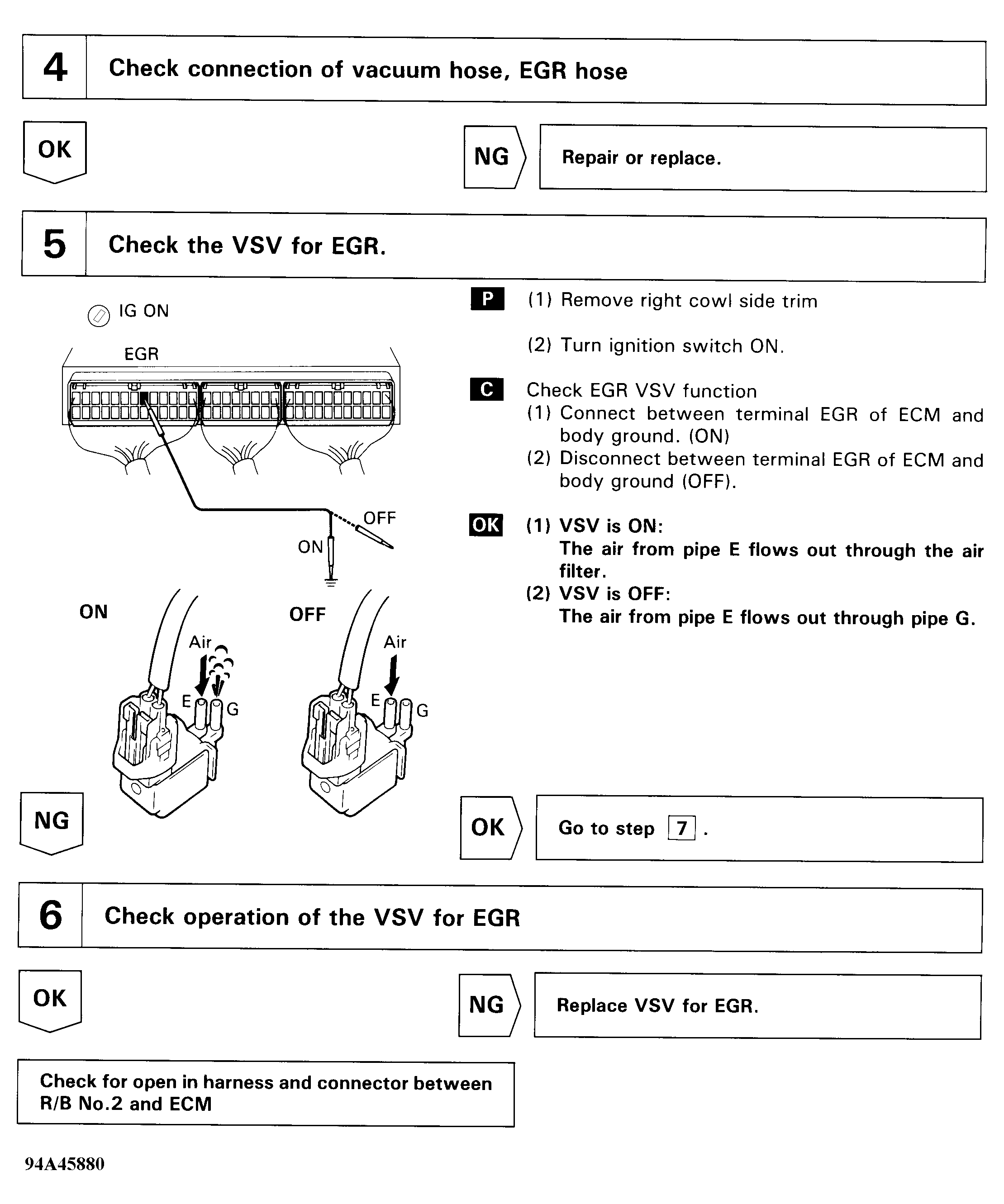

Fig 8: DTC P0401 - Diagnostic Flowchart (8 Of 9)

G94A45880

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

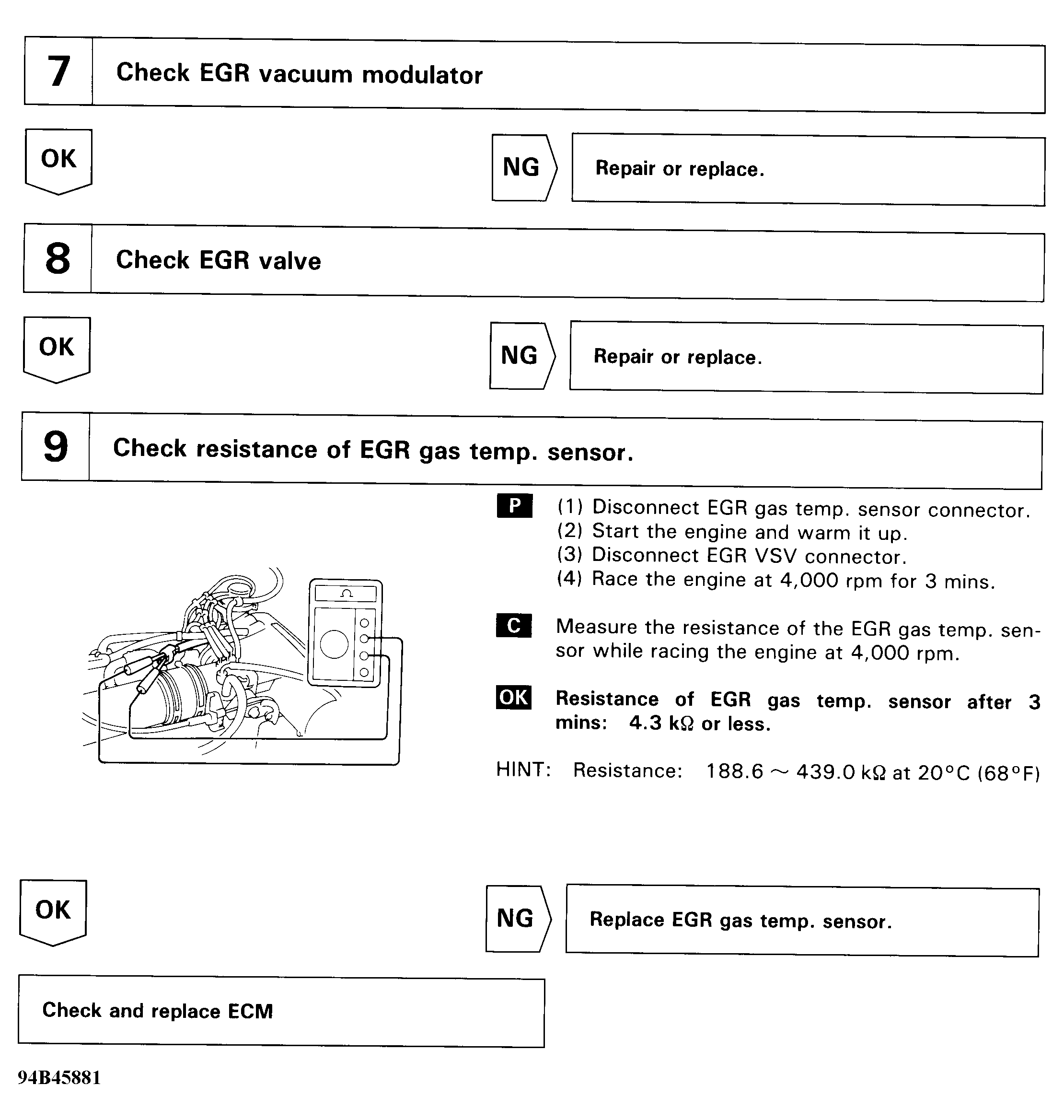

Fig 9: DTC P0401 - Diagnostic Flowchart (9 Of 9)

G94B45881

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
