DTC P0121 - Throttle Position Sensor Circuit Range/Performance Problem

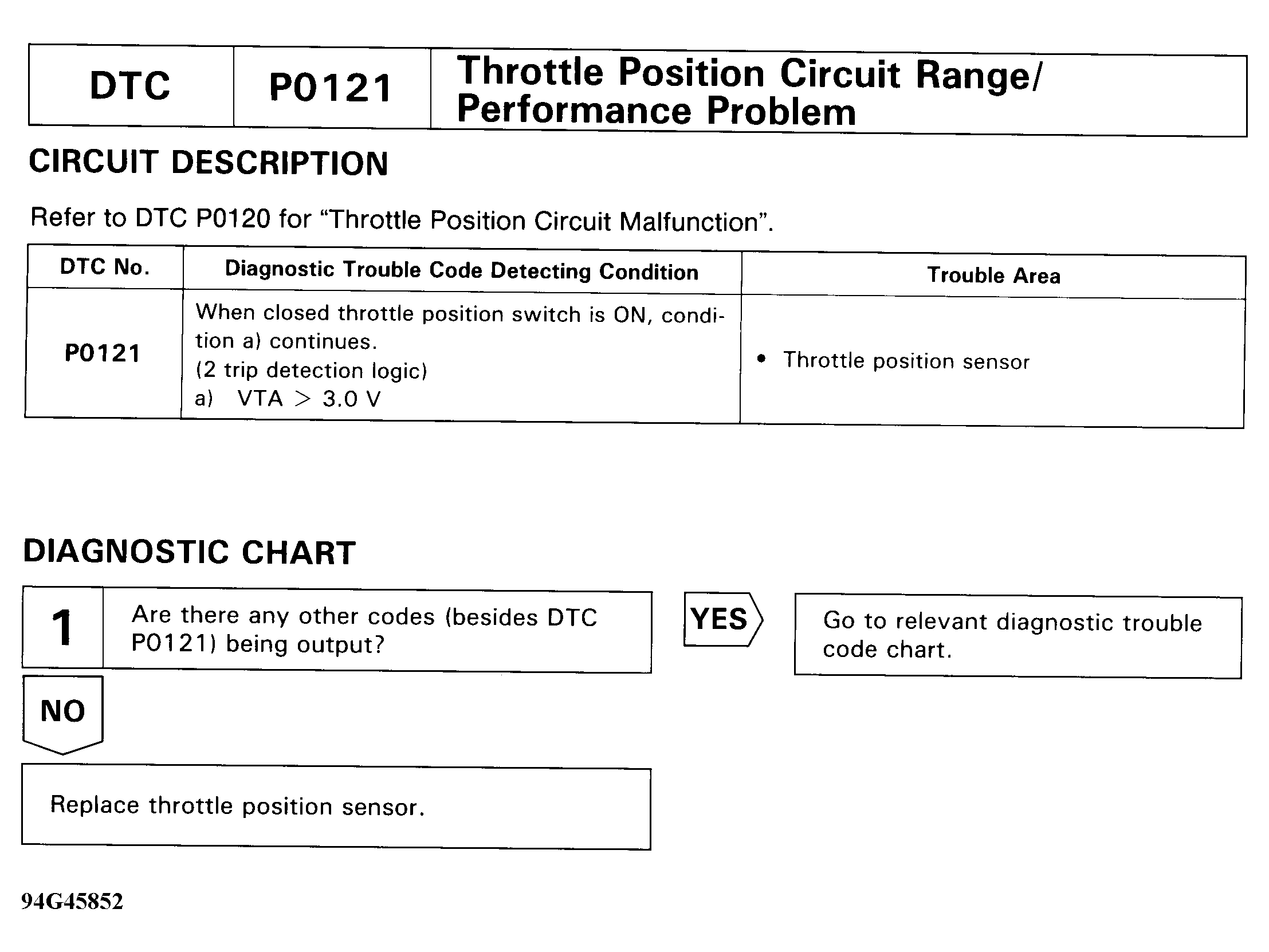

Fig 1: DTC P0121 - Diagnostic Flowchart

G94G45852

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
