DTC P0120 - Throttle Position Sensor Circuit

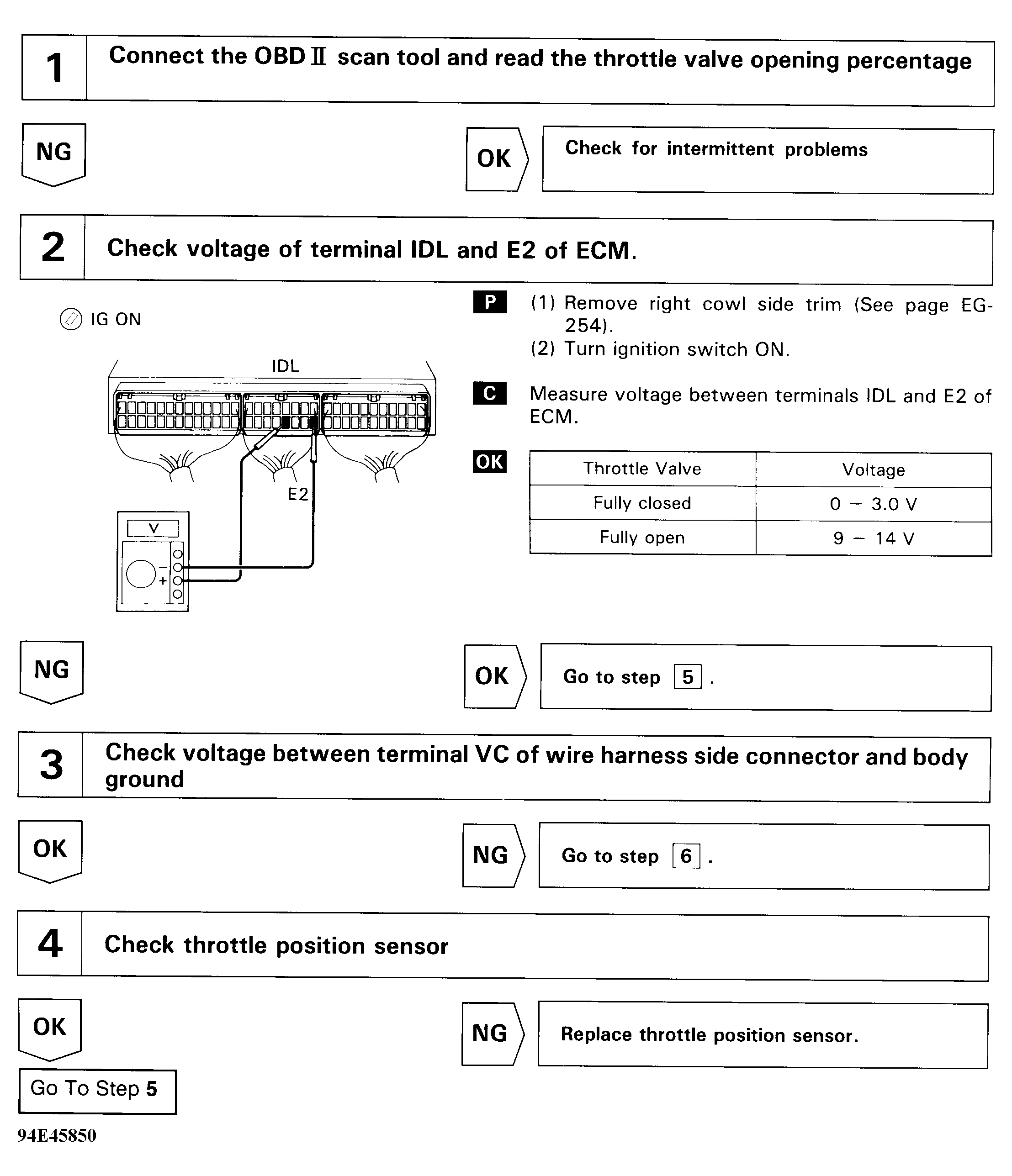

Fig 1: DTC P0120 - Diagnostic Flowchart (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

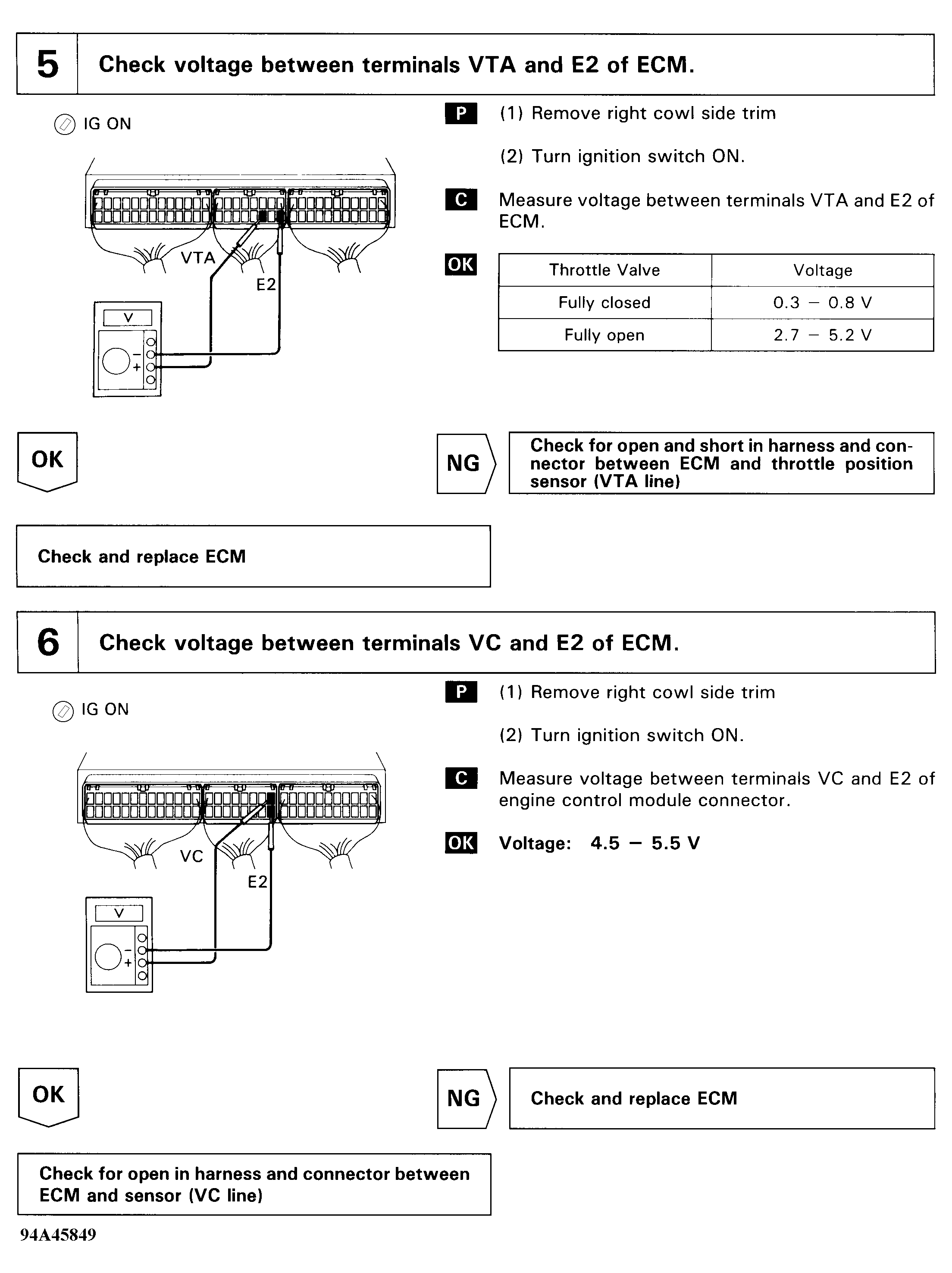

Fig 2: DTC P0120 - Diagnostic Flowchart (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

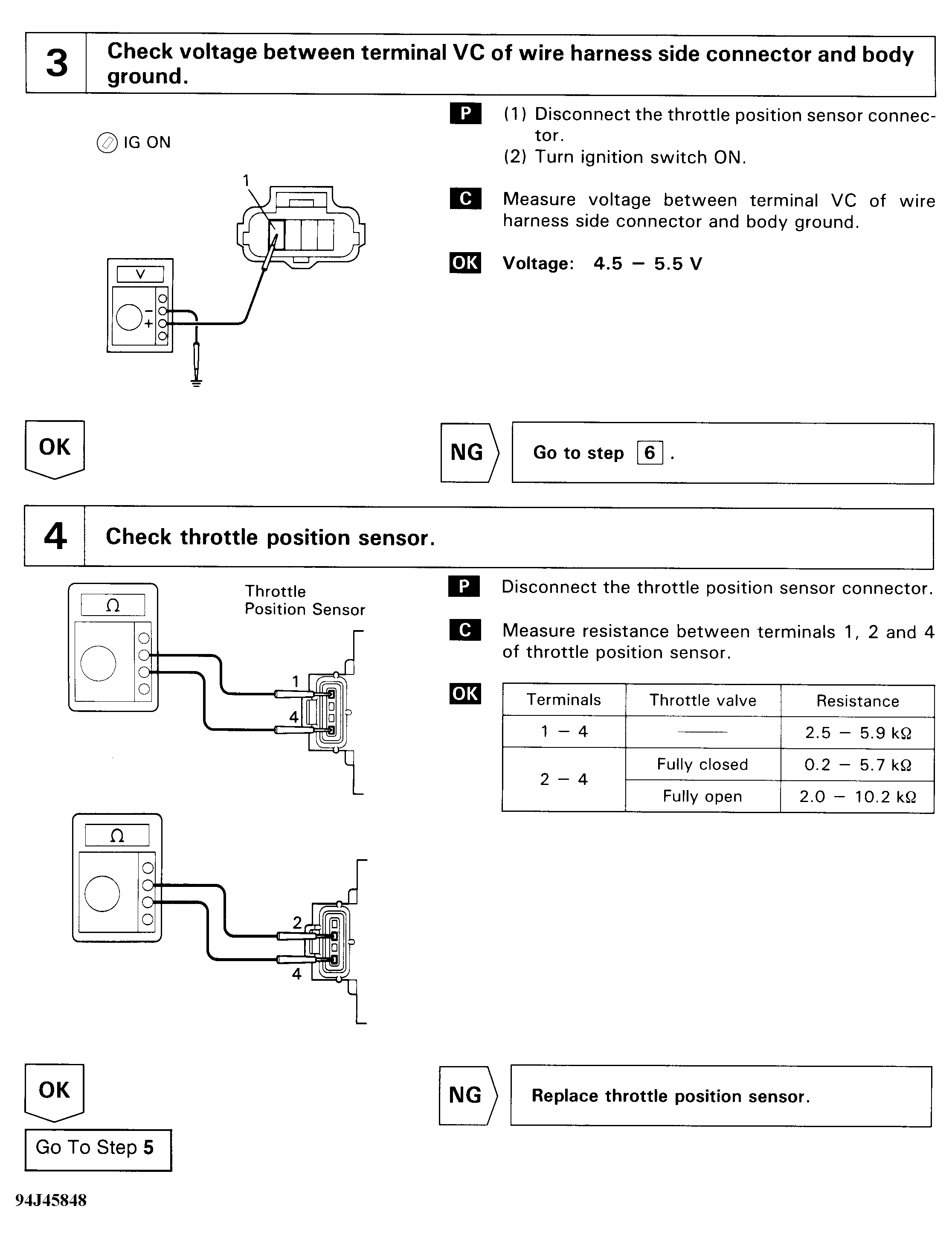

Fig 3: DTC P0120 - Diagnostic Flowchart (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

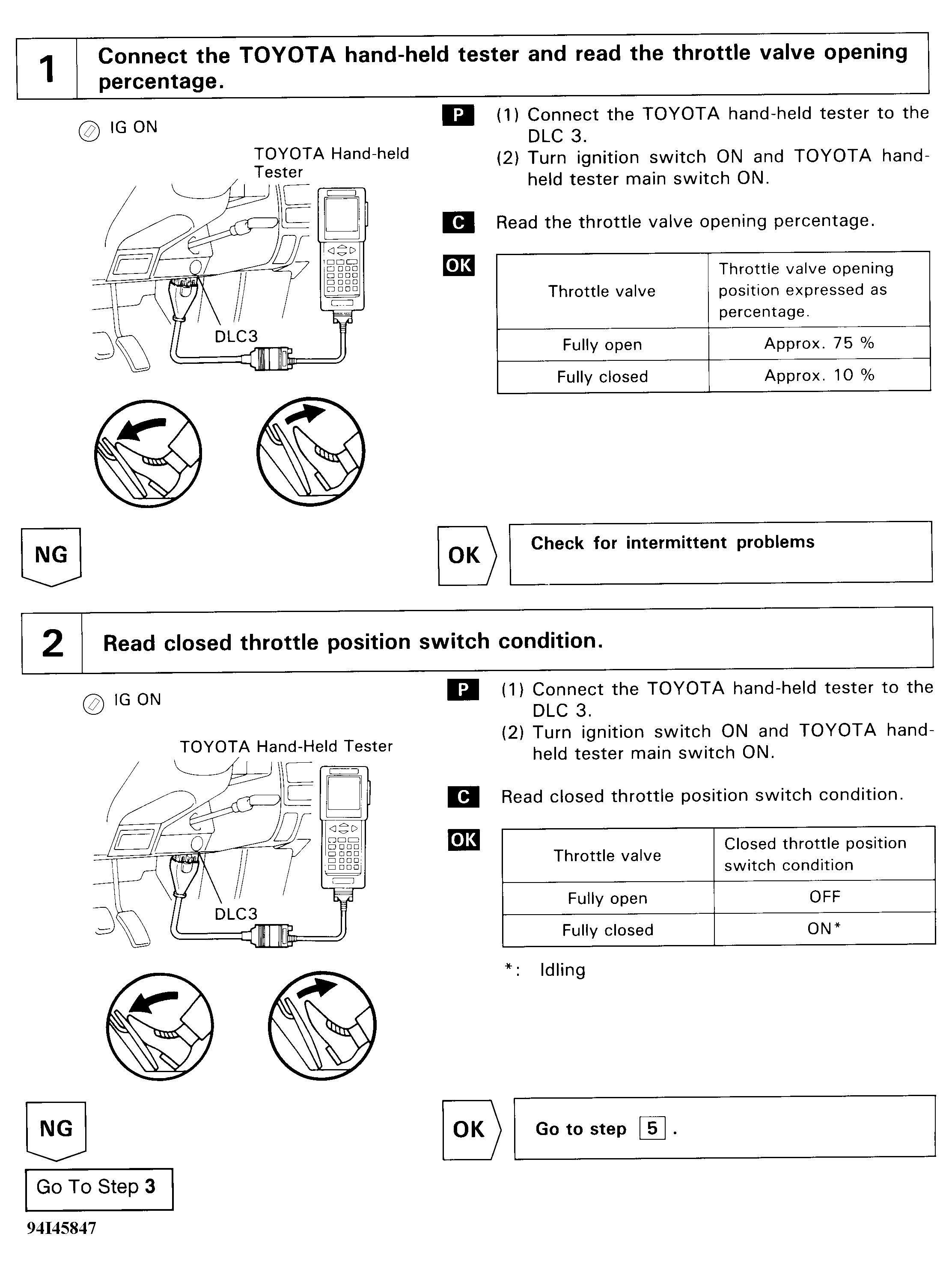

Fig 4: DTC P0120 - Diagnostic Flowchart (4 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

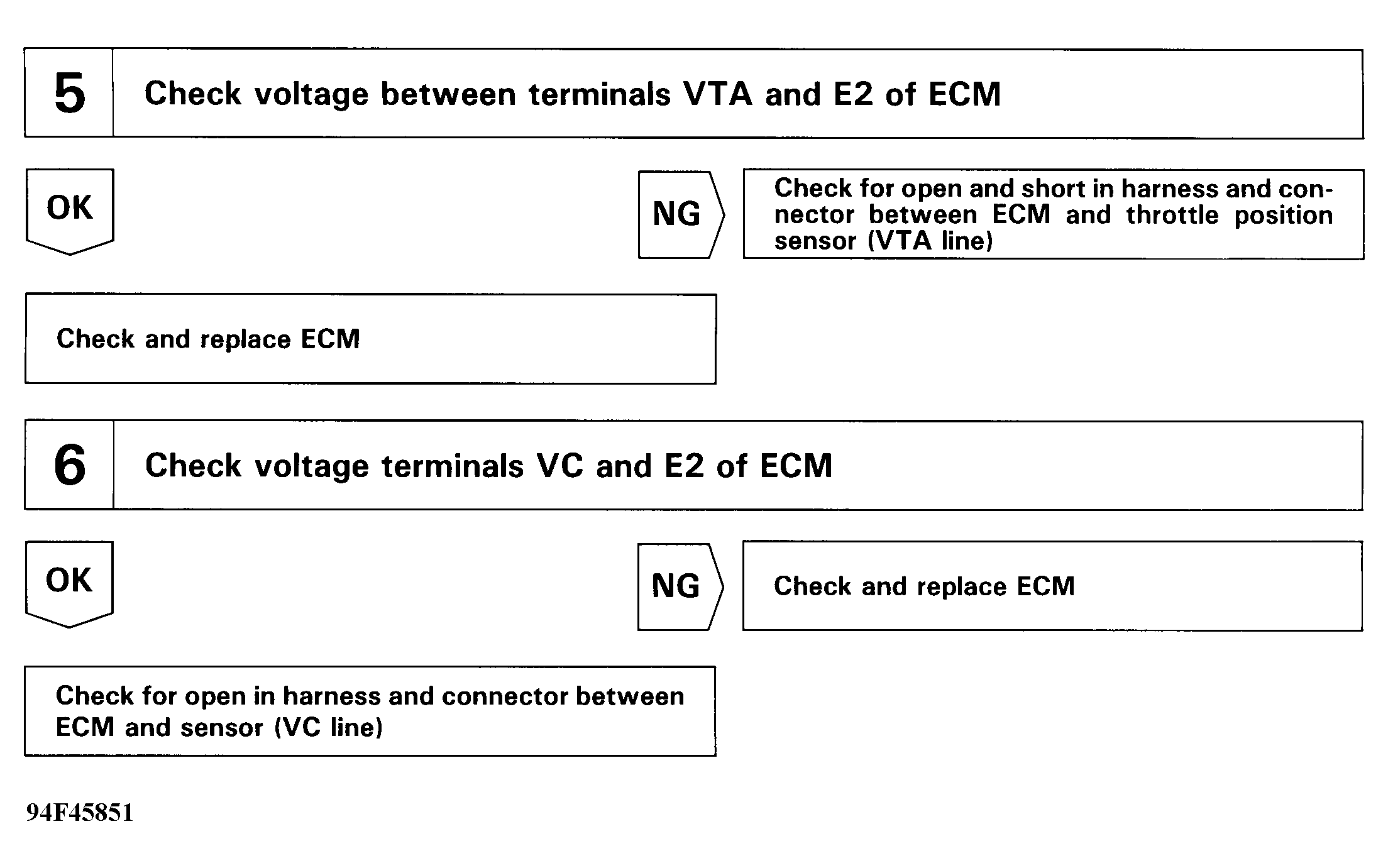

Fig 5: DTC P0120 - Diagnostic Flowchart (5 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
