DTC P0116 - Engine Coolant Temperature Sensor Circuit Range/Performance Problem

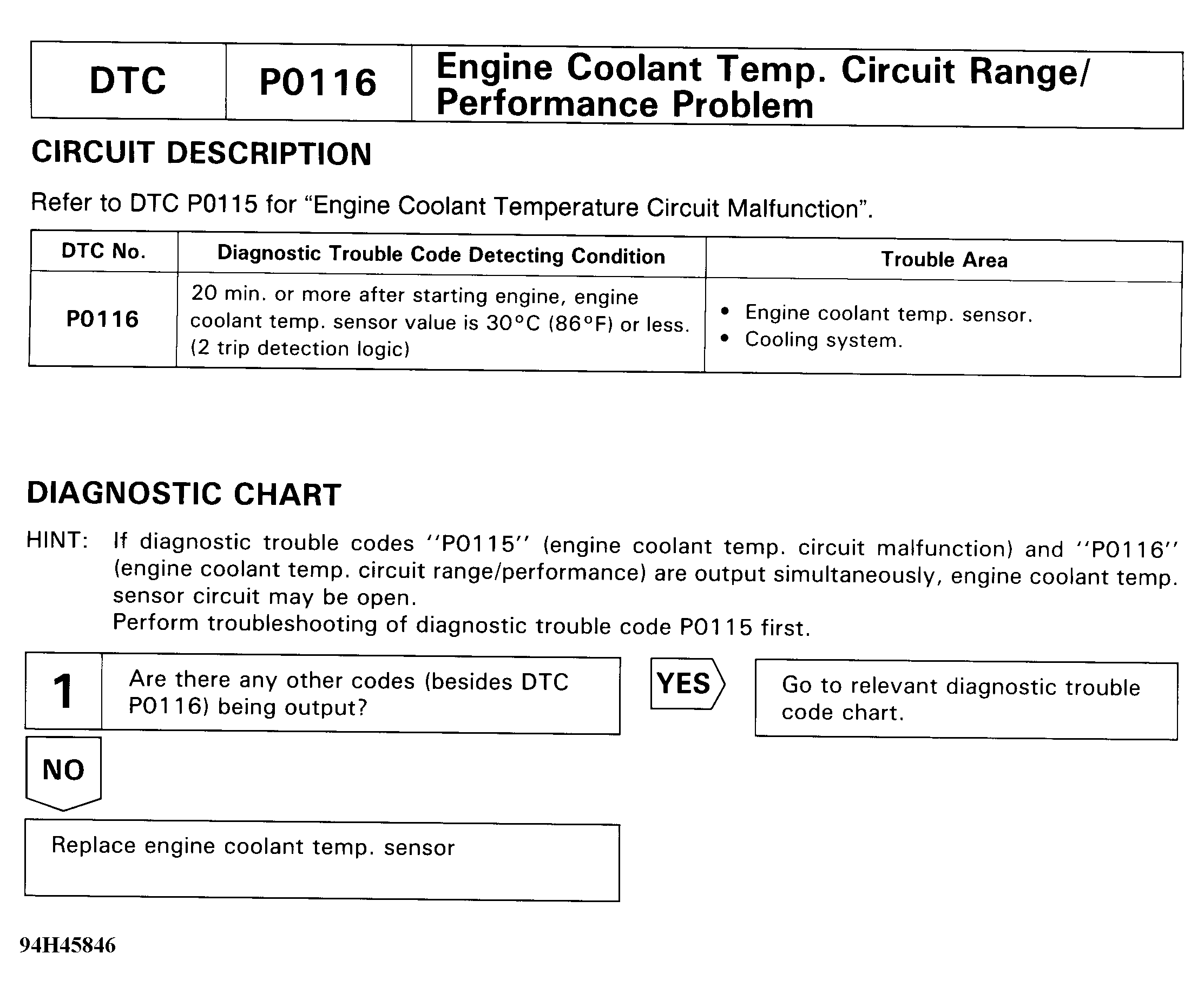

Fig 1: DTC P0116 - Diagnostic Flowchart

G94H45846

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
