DTC P0110 - Intake Air Temperature Sensor Circuit

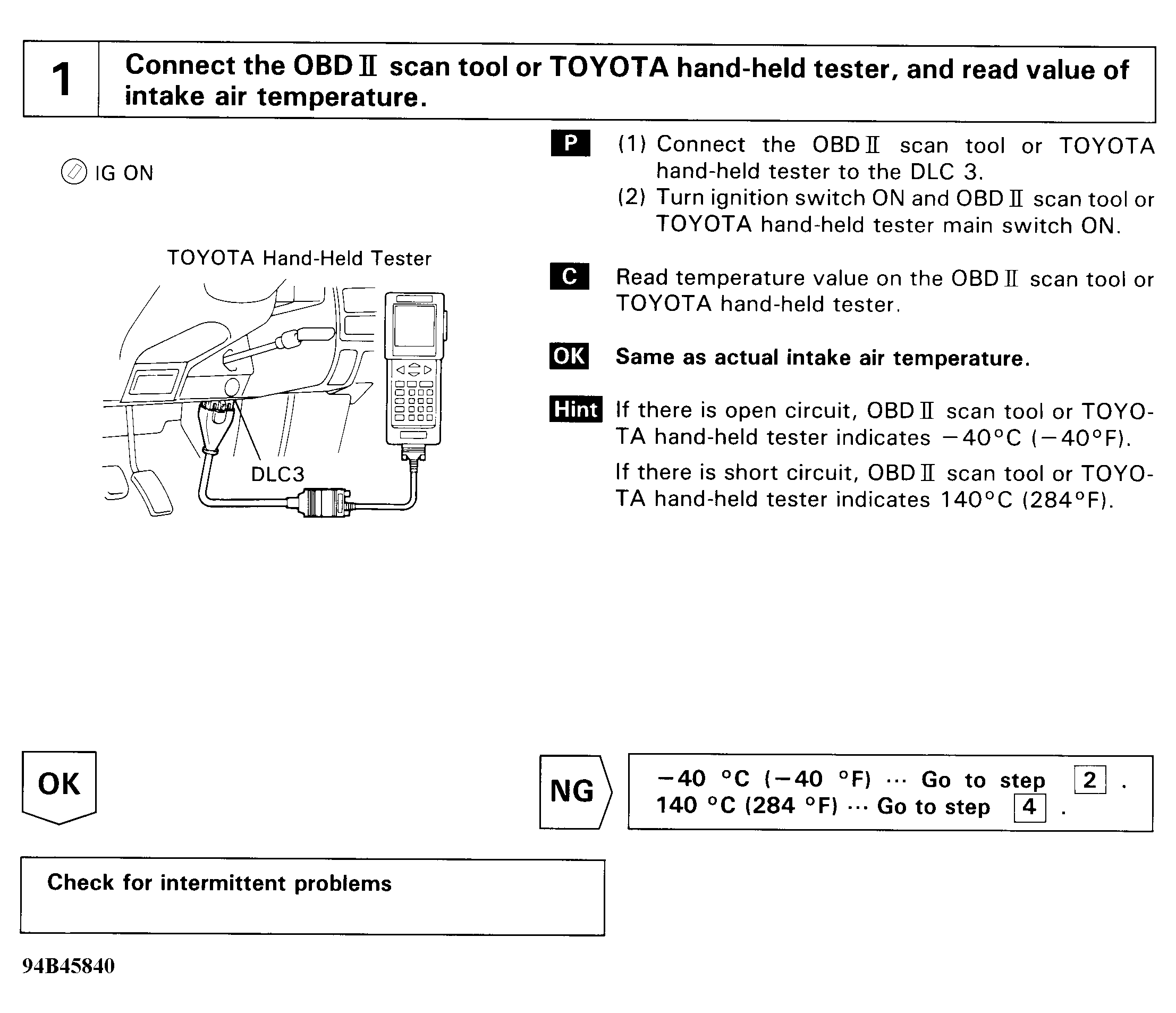

Fig 1: DTC P0110 - Diagnostic Flowchart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

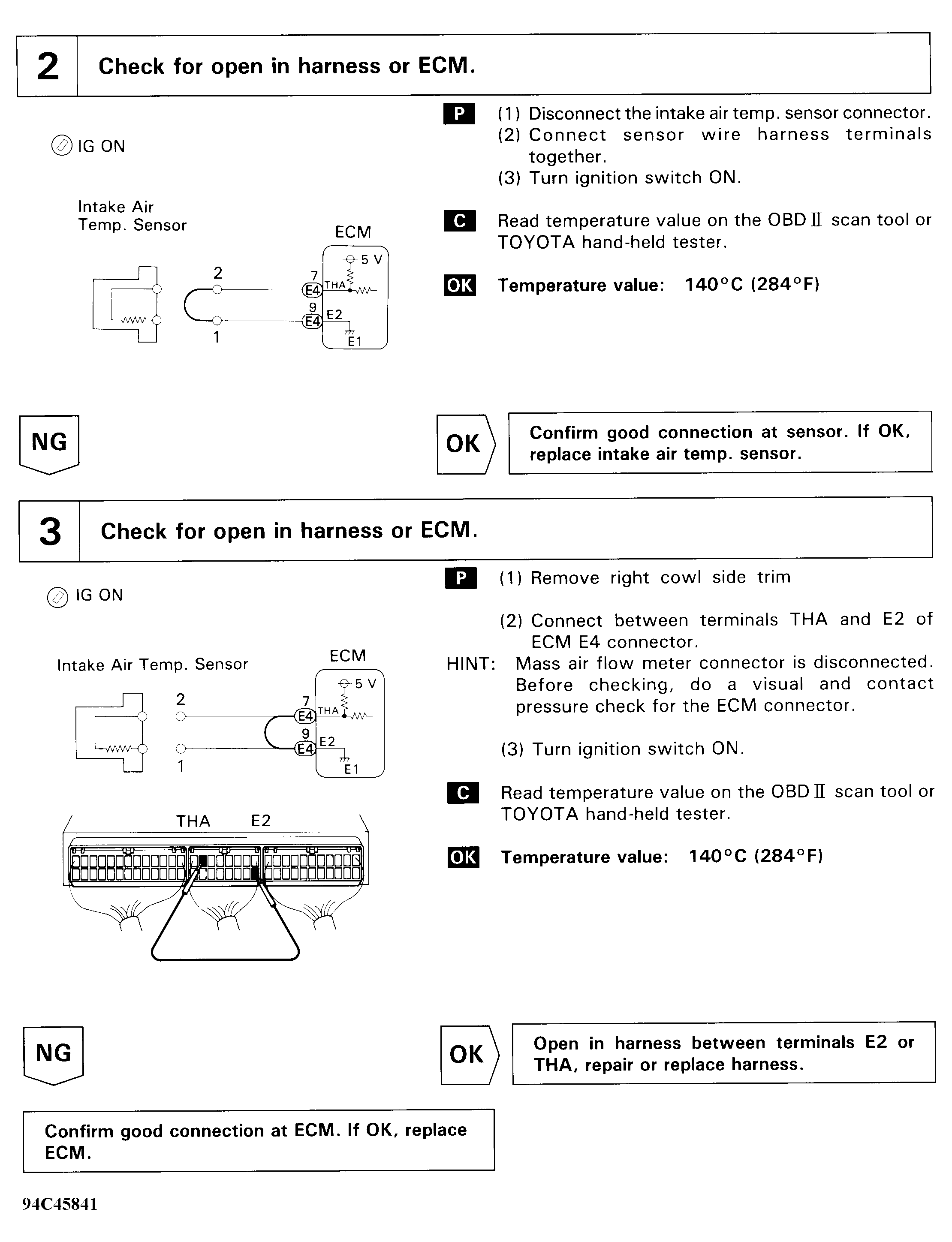

Fig 2: DTC P0110 - Diagnostic Flowchart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

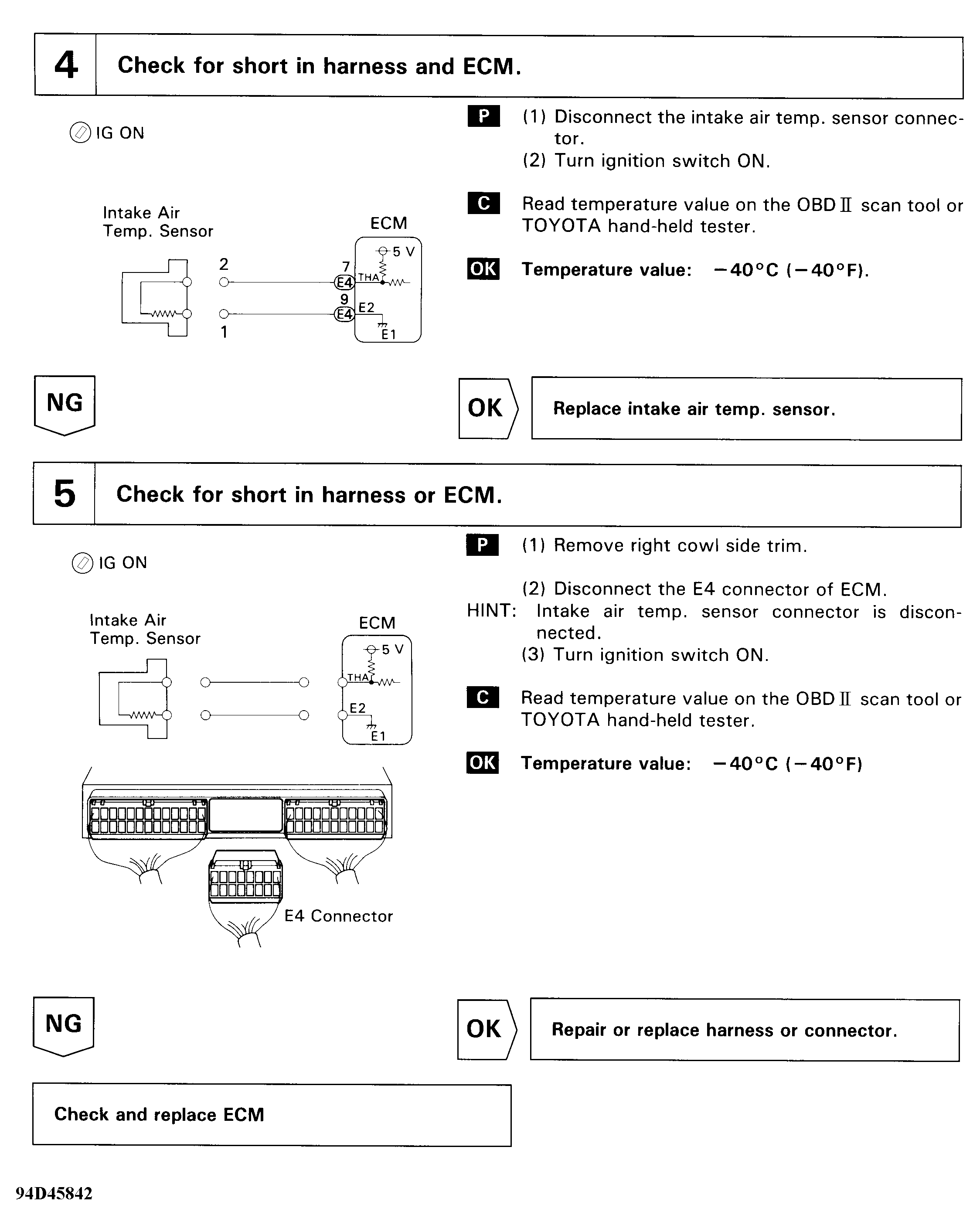

Fig 3: DTC P0110 - Diagnostic Flowchart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
