Clearing Codes

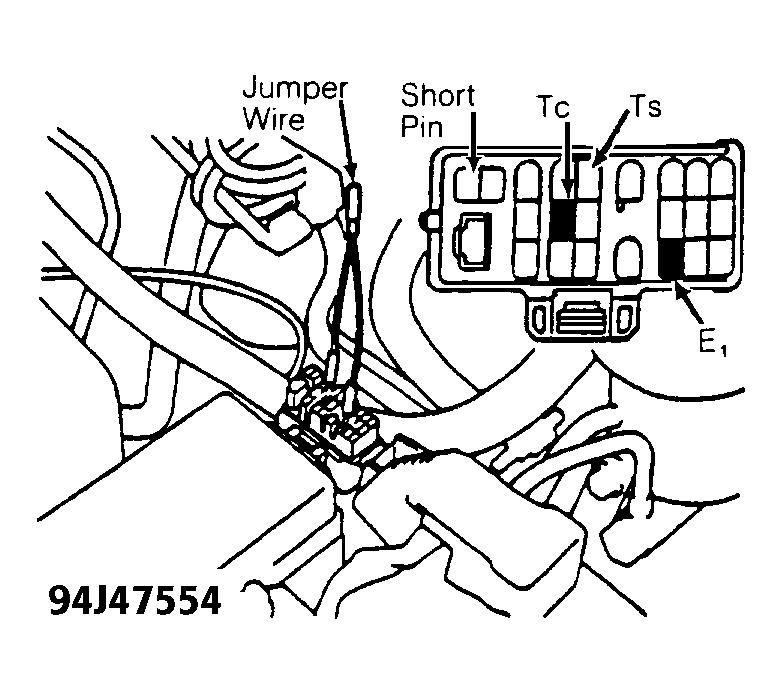

  1. Turn ignition on. Connect jumper wire between DLC terminals Tc and E1. See Figure. With vehicle stopped, press brake pedal 8 or more times within 3 seconds to erase codes.
  2. REAR ANTI-LOCK light should display a normal code (flashes 2 times per second). Remove jumper wire from DLC. Verify REAR ANTI-LOCK light goes out after 3 seconds. Codes will be cleared. Verify REAR ANTI-LOCK light displays normal code.
