DTC 42 - Vehicle Speed Sensor Signal

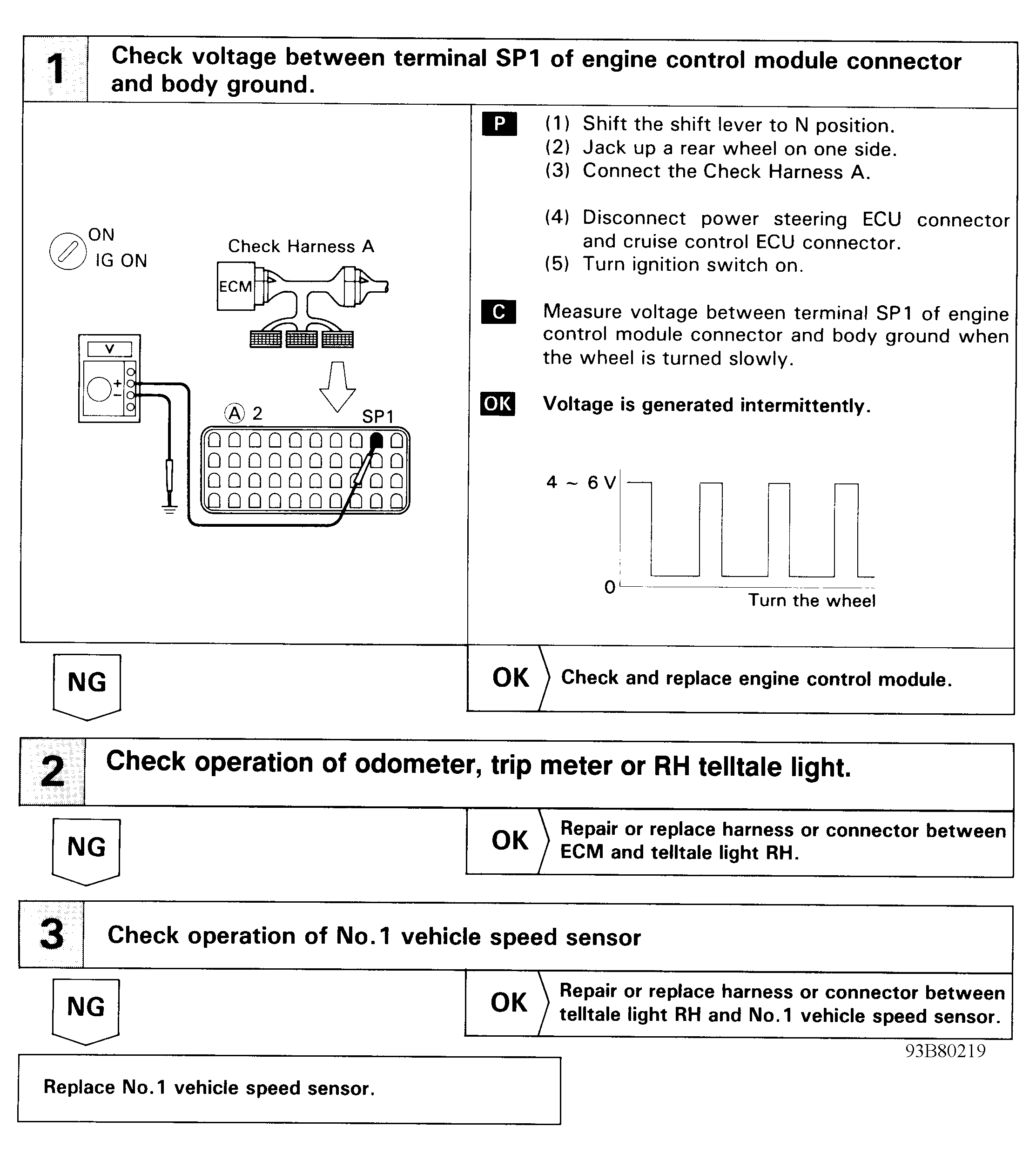

Fig 1: DTC 42 - Diagnostic Flowchart

G93B80219

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
