Home >> Toyota >> 1994 >> Supra 2JZ-GE, Standard >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Tests W/Codes - Turbo >> Trouble Code Charts >> ECM Power Source Circuit Check

ECM Power Source Circuit Check

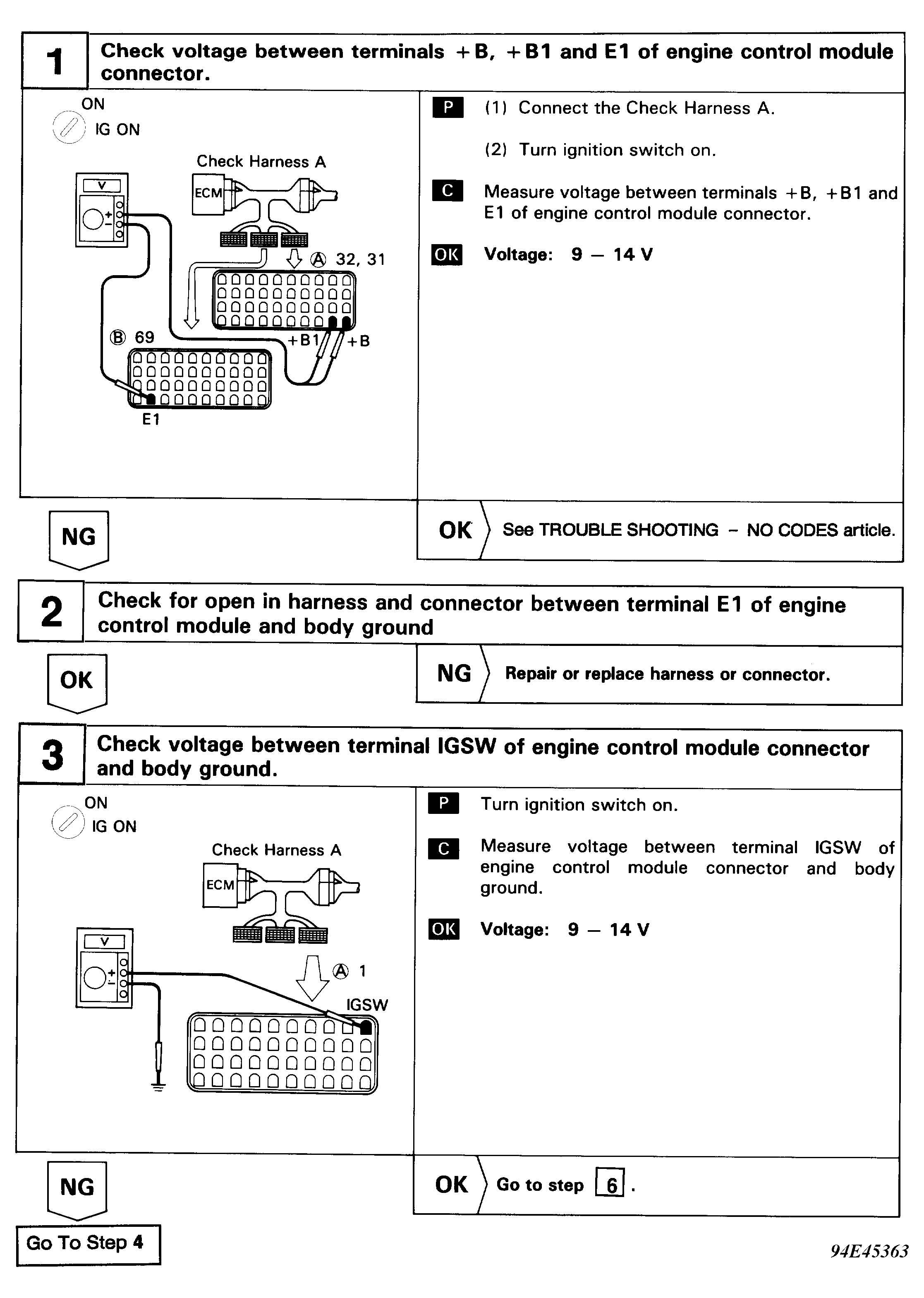

Fig 1: ECM Power Source Circuit Check - Diagnostic Flowchart (1 Of 4)
G94E45363Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

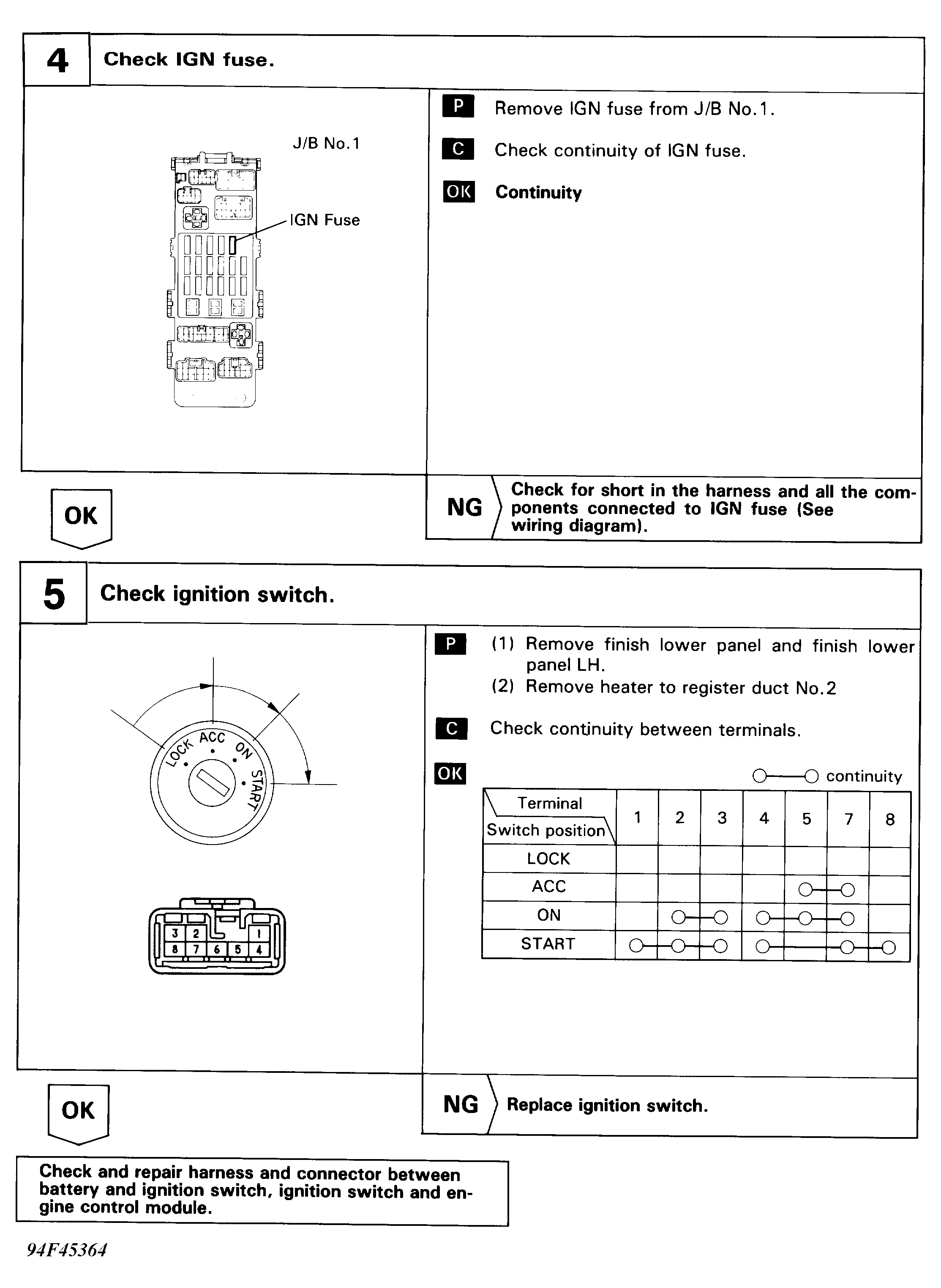

Fig 2: ECM Power Source Circuit Check - Diagnostic Flowchart (2 Of 4)
G94F45364Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

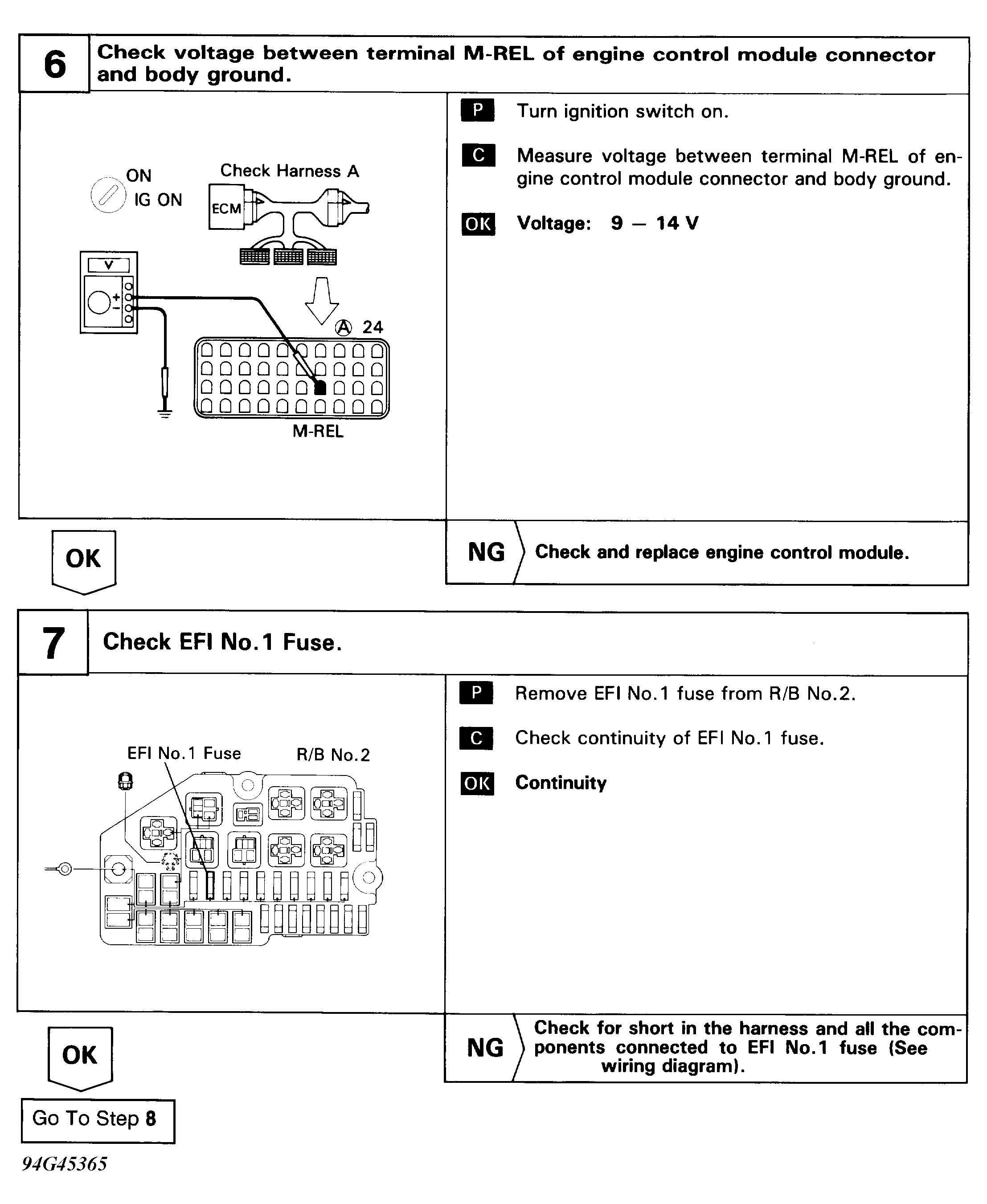

Fig 3: ECM Power Source Circuit Check - Diagnostic Flowchart (3 Of 4)
G94G45365Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

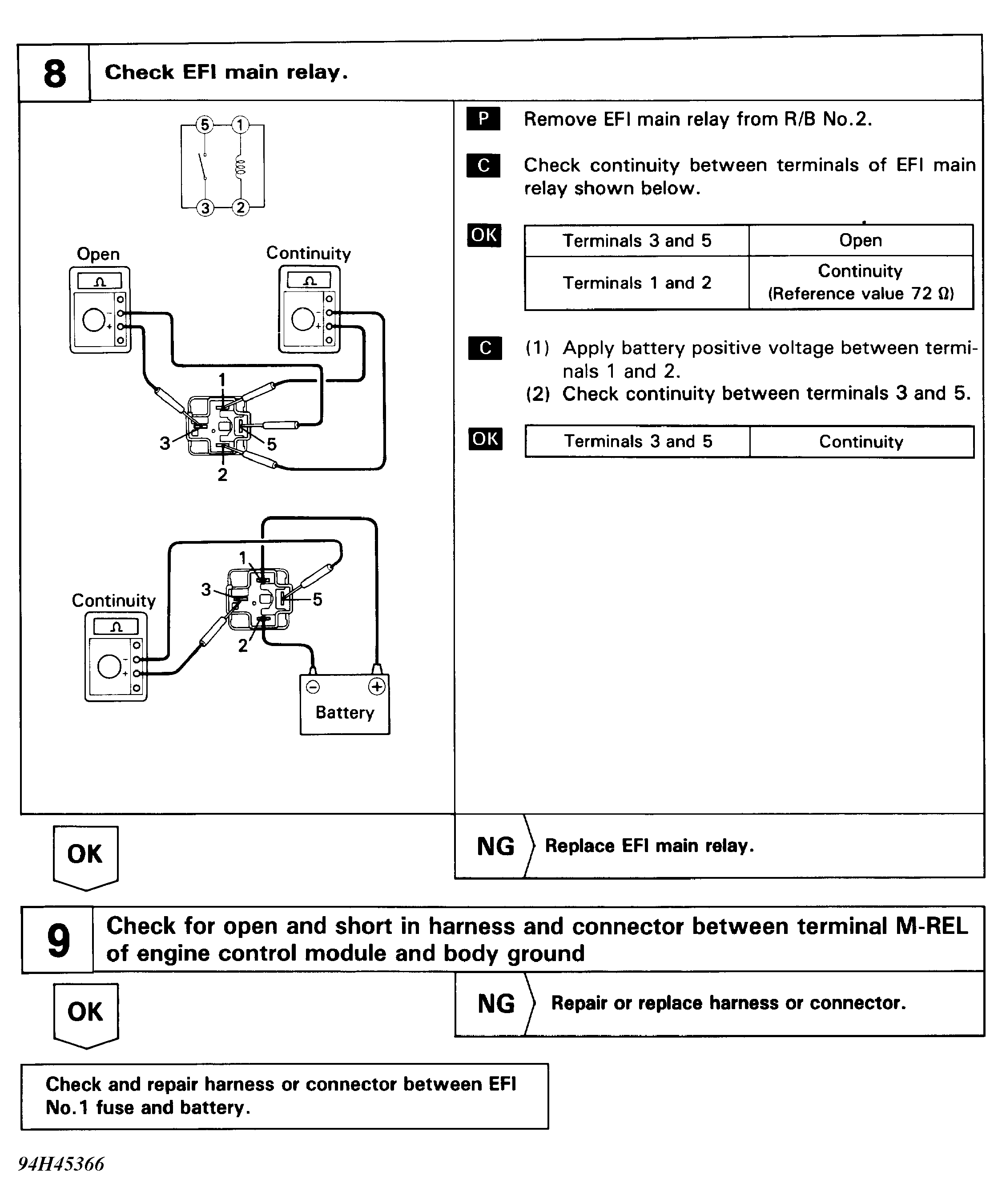

Fig 4: ECM Power Source Circuit Check - Diagnostic Flowchart (4 Of 4)
G94H45366Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
