ECM Power Source Circuit Check

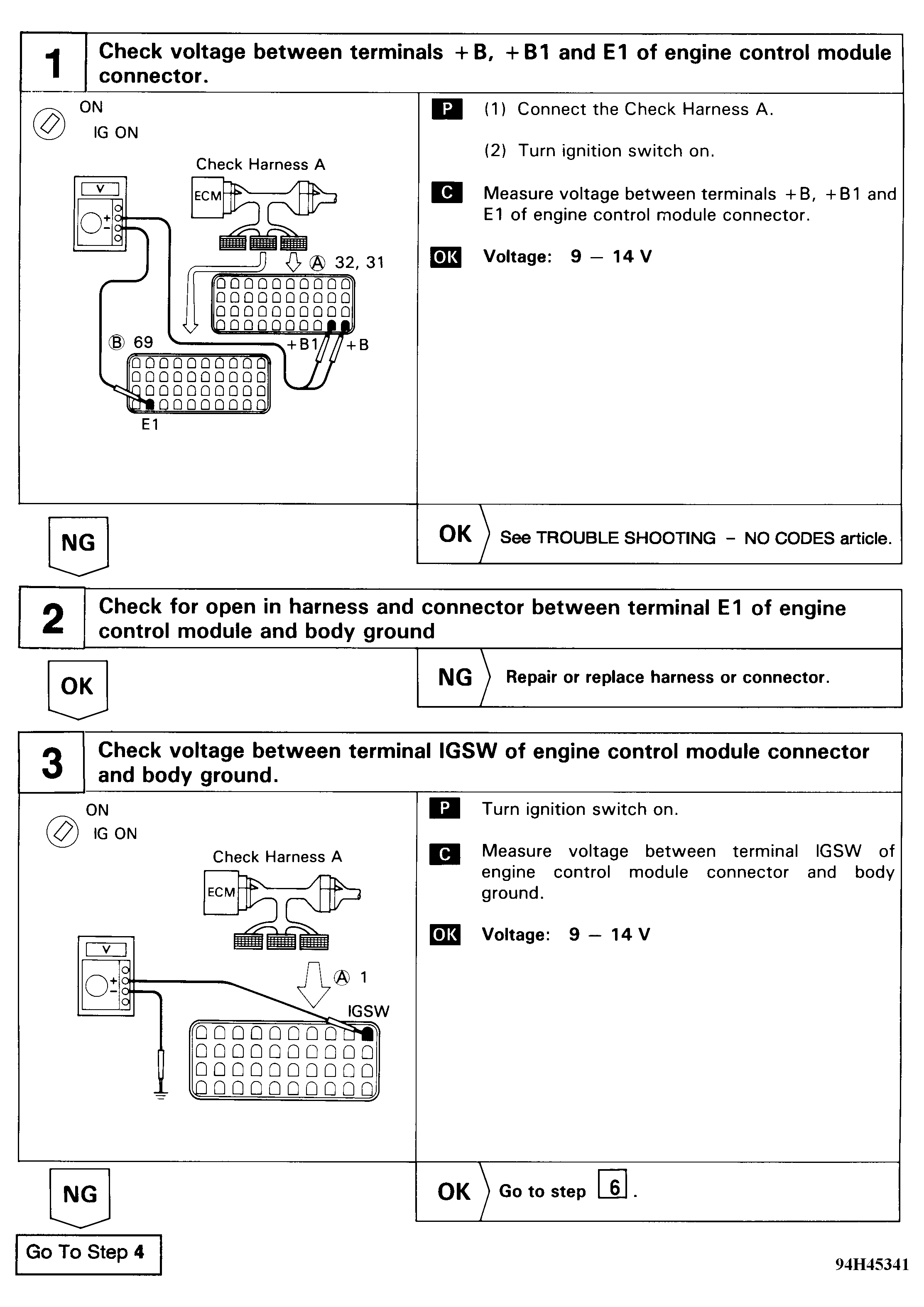

Fig 1: ECM Power Source Circuit Check - Diagnostic Flowchart (1 Of 4)
G94H45341Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

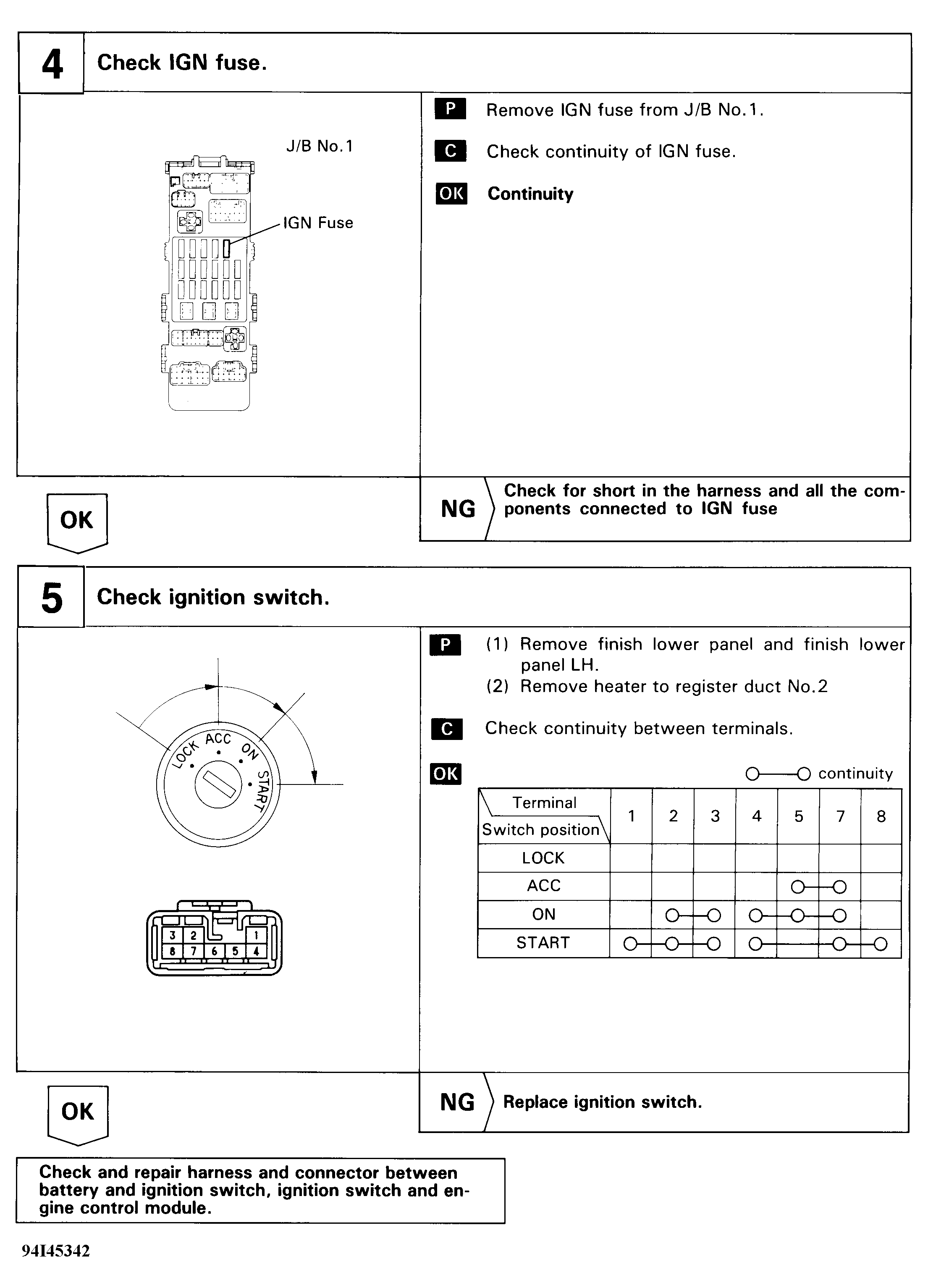

Fig 2: ECM Power Source Circuit Check - Diagnostic Flowchart (2 Of 4)
G94I45342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

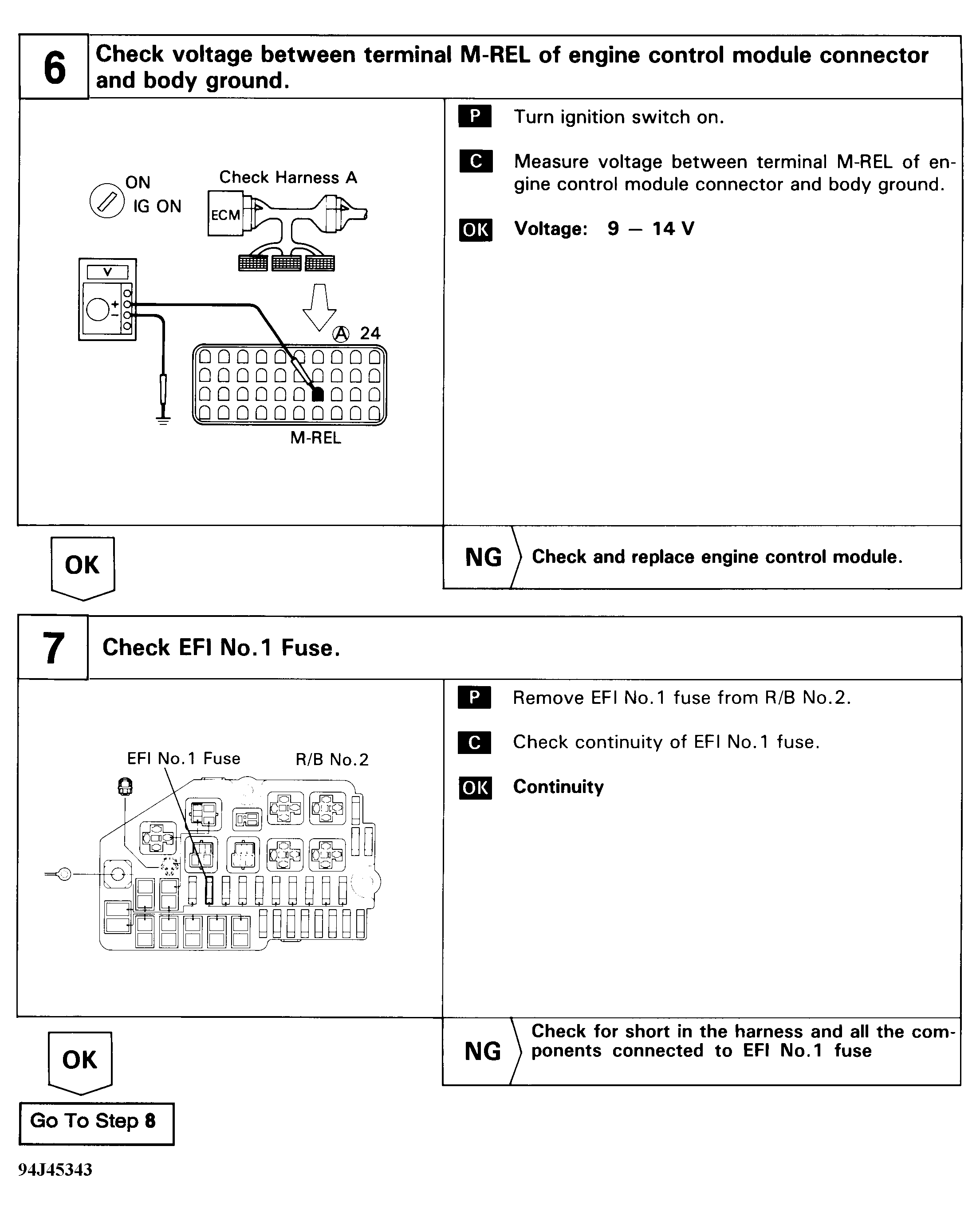

Fig 3: ECM Power Source Circuit Check - Diagnostic Flowchart (3 Of 4)
G94J45343Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

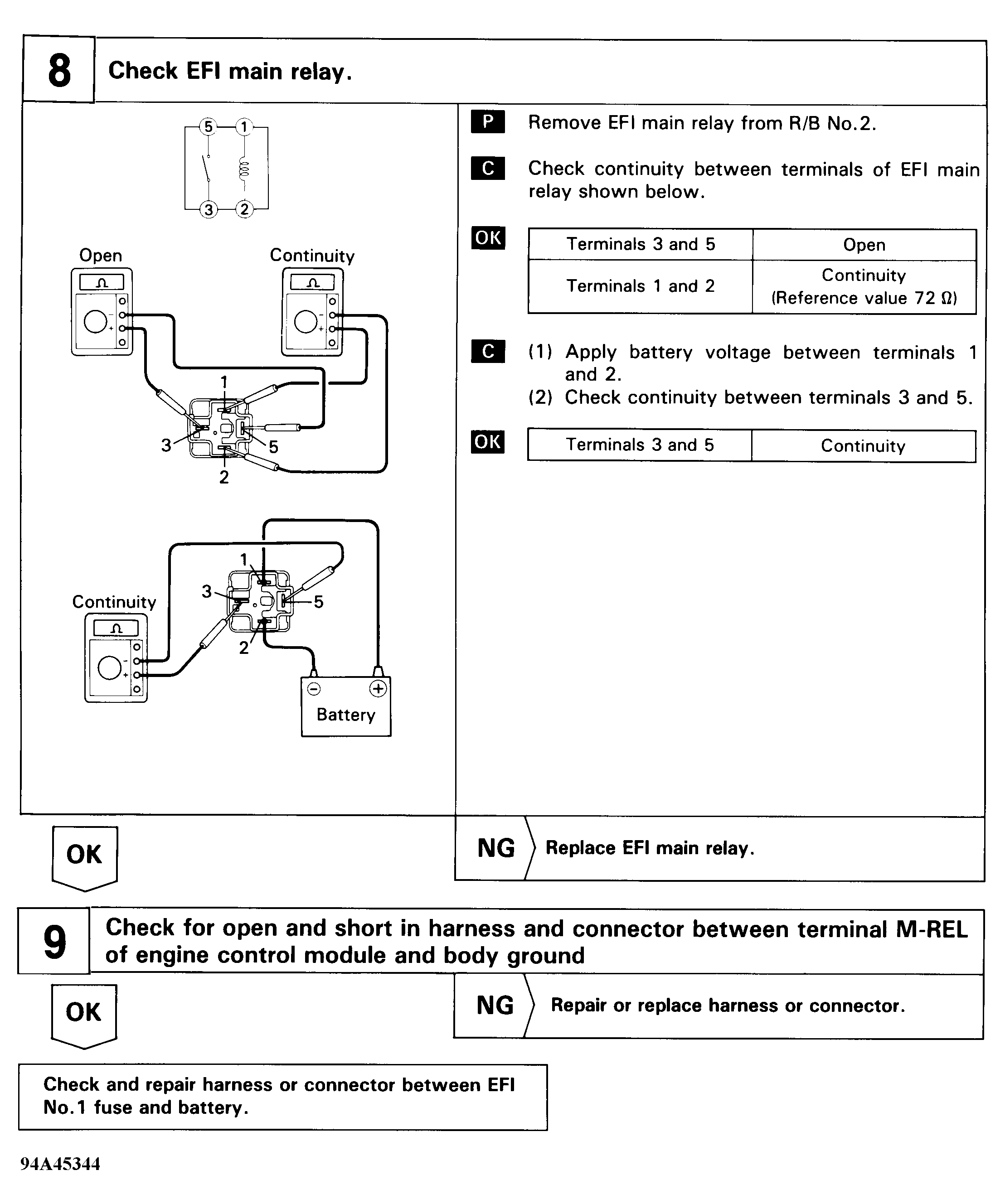

Fig 4: ECM Power Source Circuit Check - Diagnostic Flowchart (4 Of 4)
G94A45344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
