ECM Back-Up Power Source Circuit Check

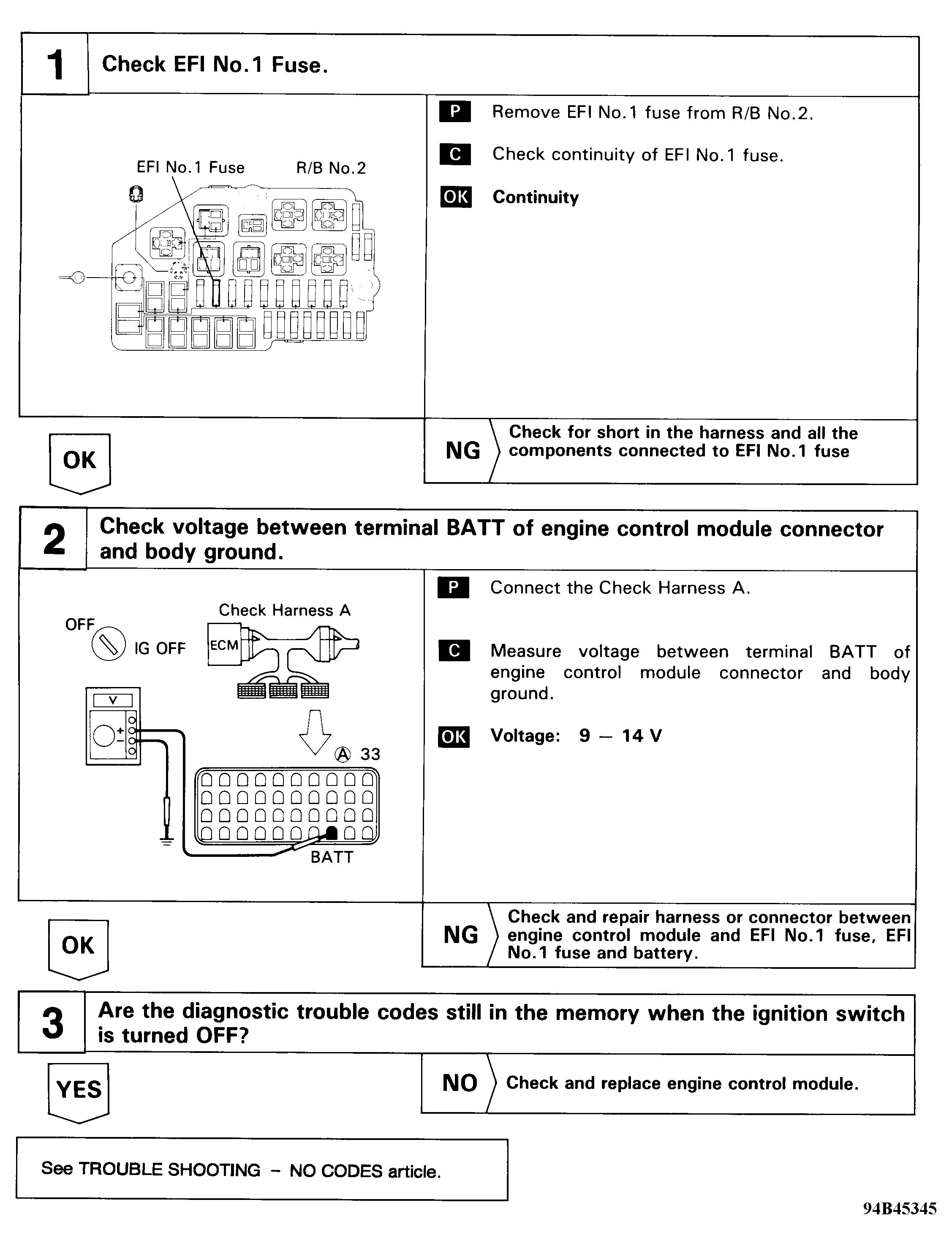

Fig 1: ECM Back-Up Power Source Circuit Check - Diagnostic Flowchart

G94B45345

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
