DTC 41 - Throttle Position Sensor Signal

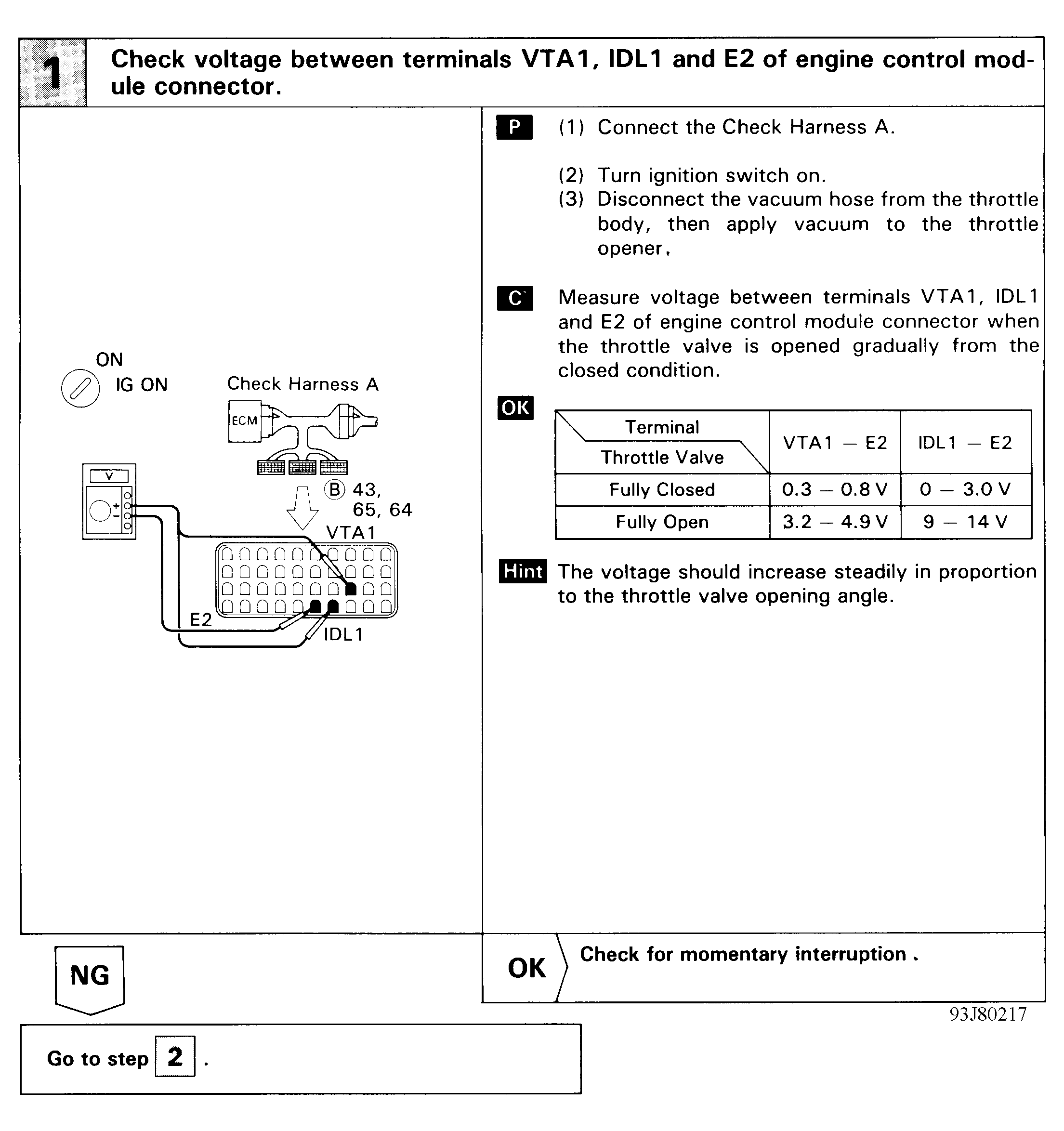

Fig 1: DTC 41 - Diagnostic Flowchart (1 Of 2)
G93J80217Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

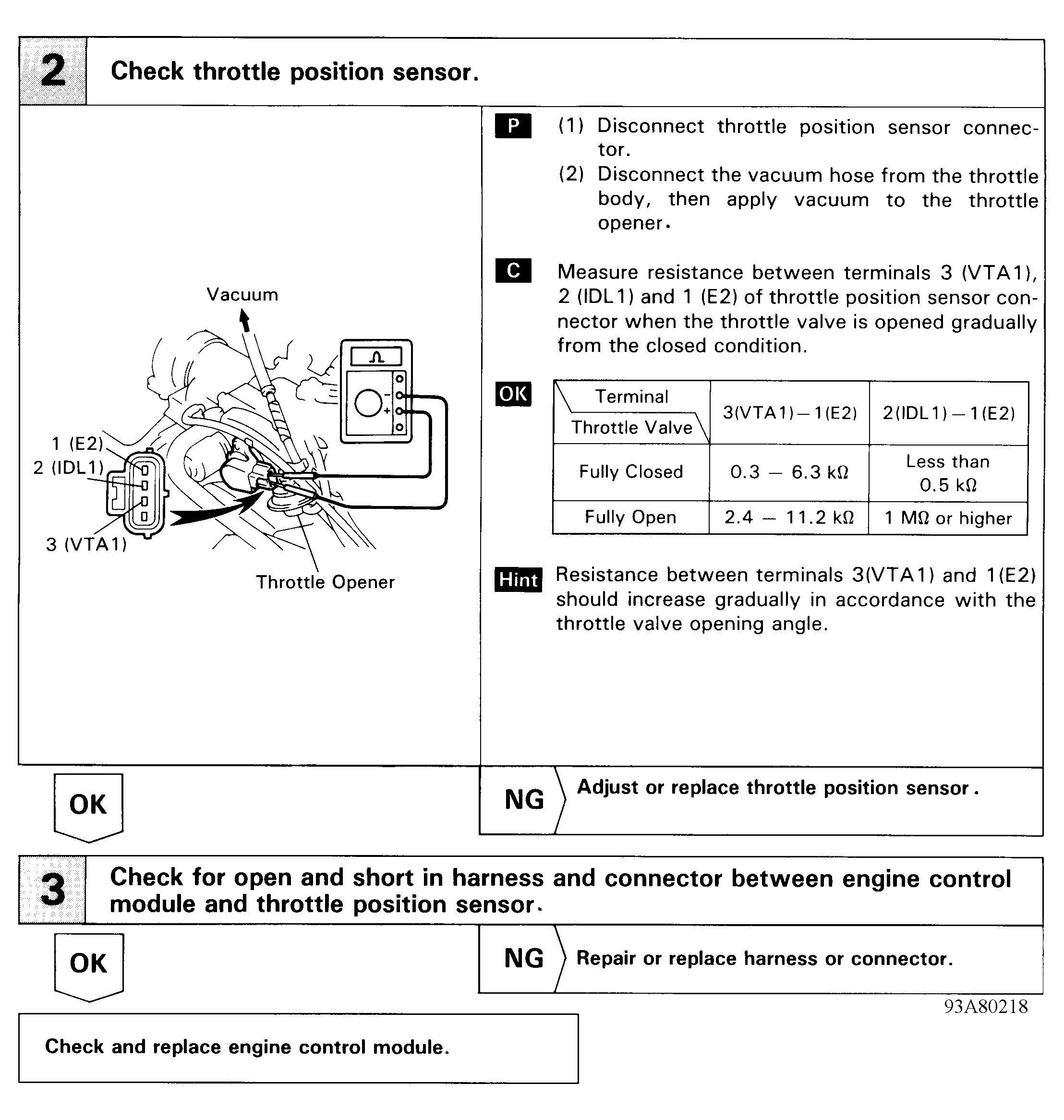

Fig 2: DTC 41 - Diagnostic Flowchart (2 Of 2)
G93A80218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
