Anti-Lock Brake System: Description

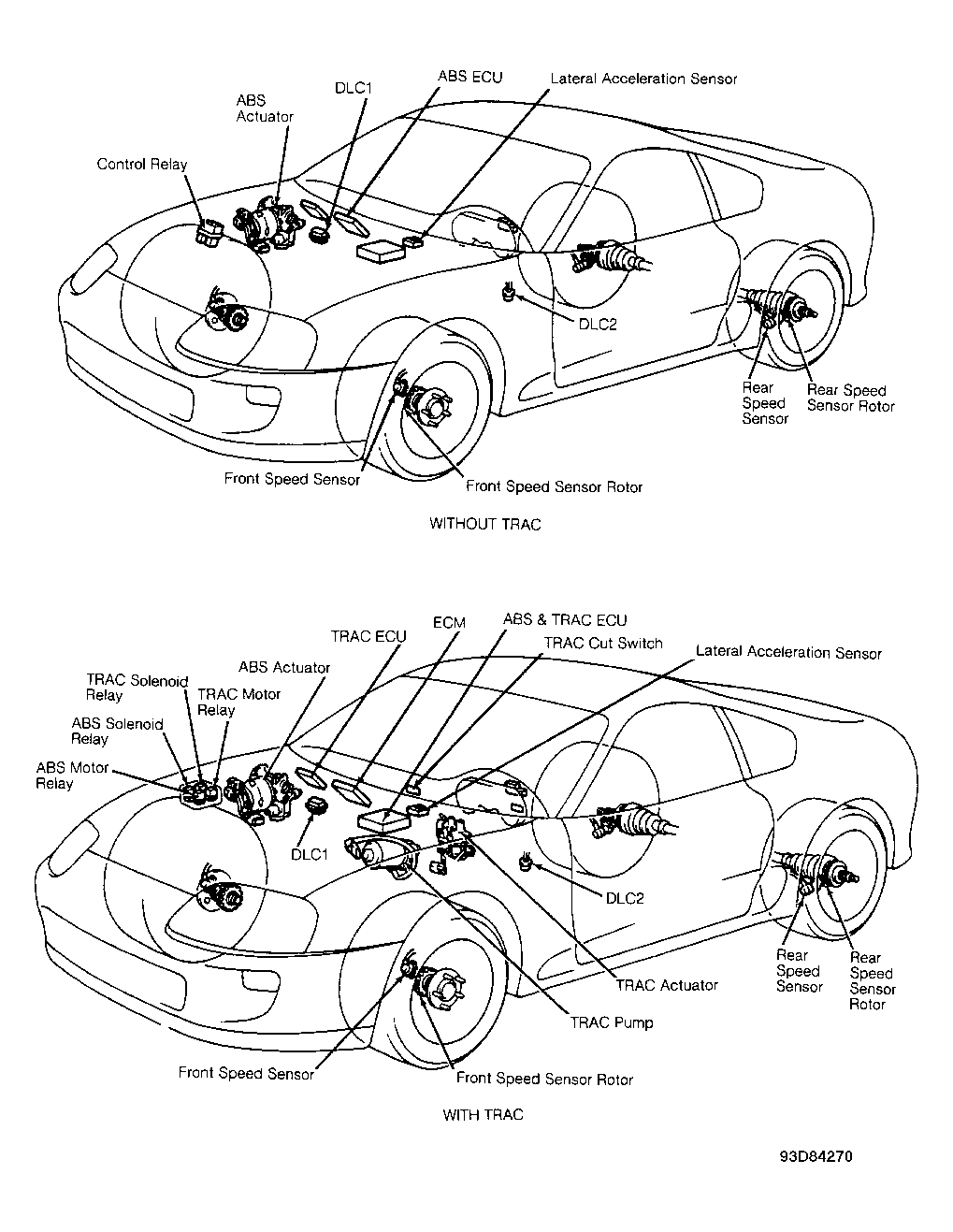

The Anti-Lock Brake System (ABS) consists of hydraulic unit, brake actuator, 4 actuator solenoids, lateral acceleration sensor, pump motor, ABS Electronic Control Unit (ECU), and 4 speed sensors. See Fig 1.
NOTE:
For additional information on brake system, see appropriate BRAKE SYSTEM
article.
