Diagnostic Circuit Check

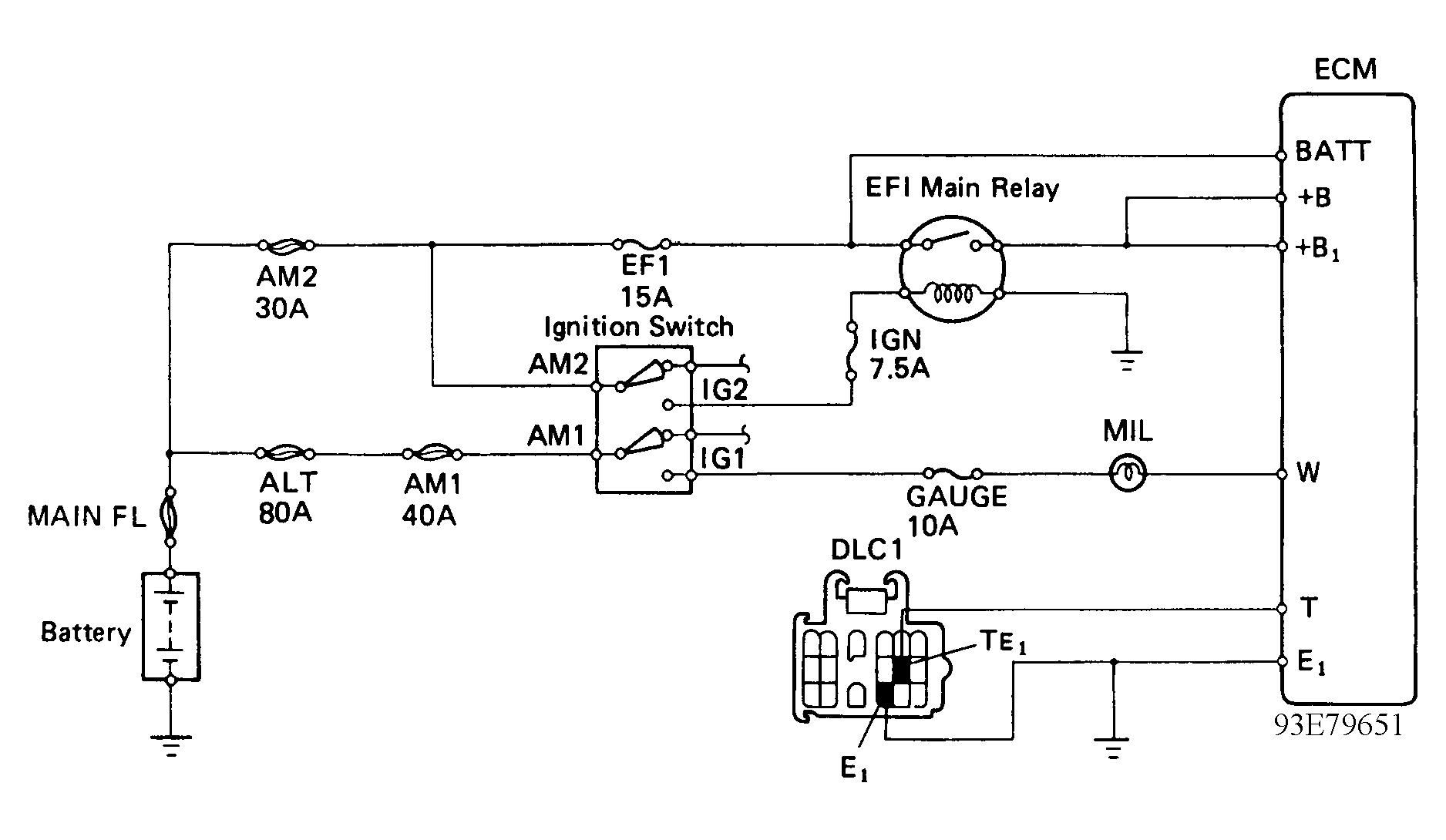

Fig 1: Diagnostic Circuit Check - Schematic
G93E79651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

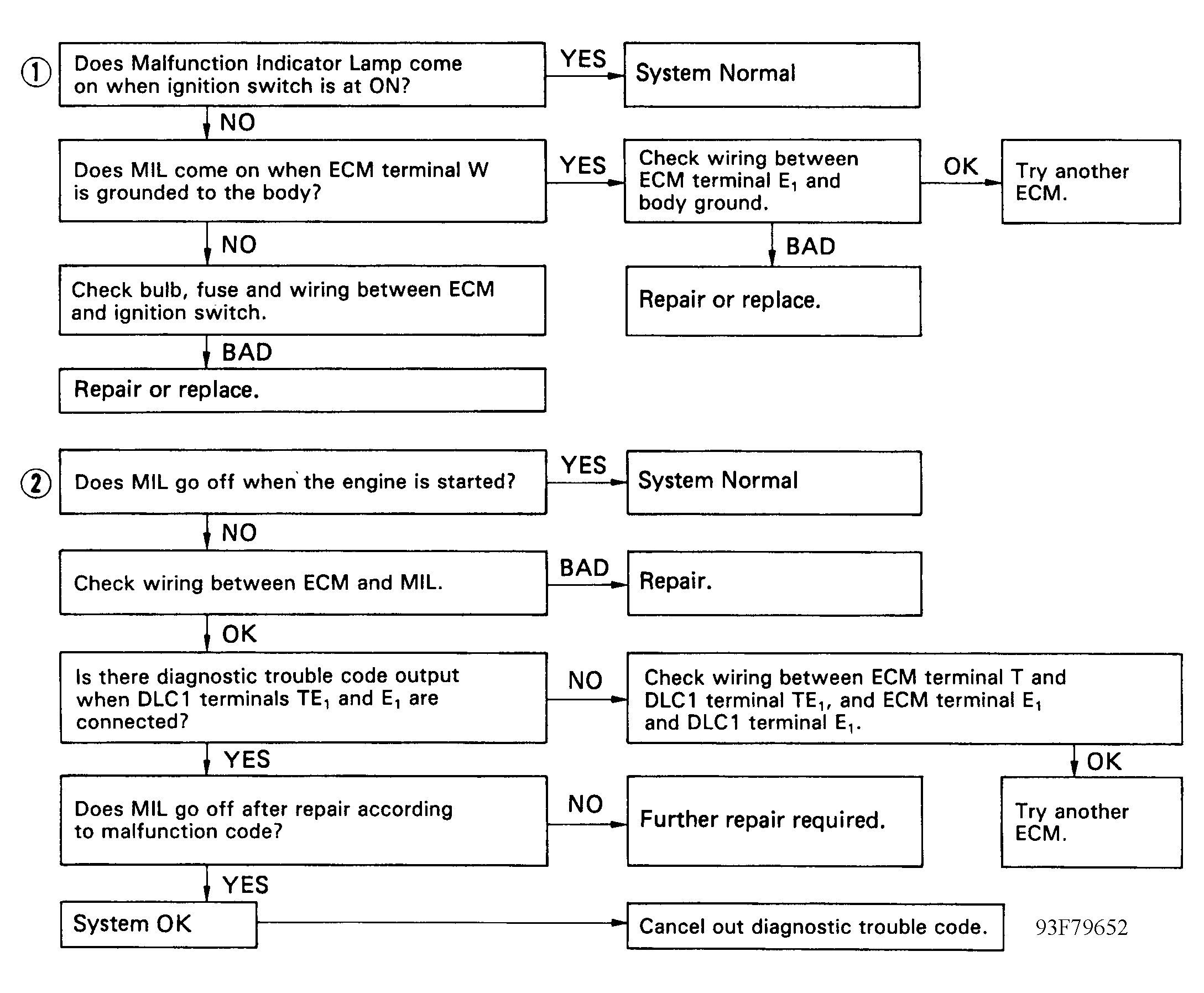

Fig 2: Diagnostic Circuit Check - Diagnostic Flowchart
G93F79652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
