DTC 41 - Throttle Position Sensor Signal

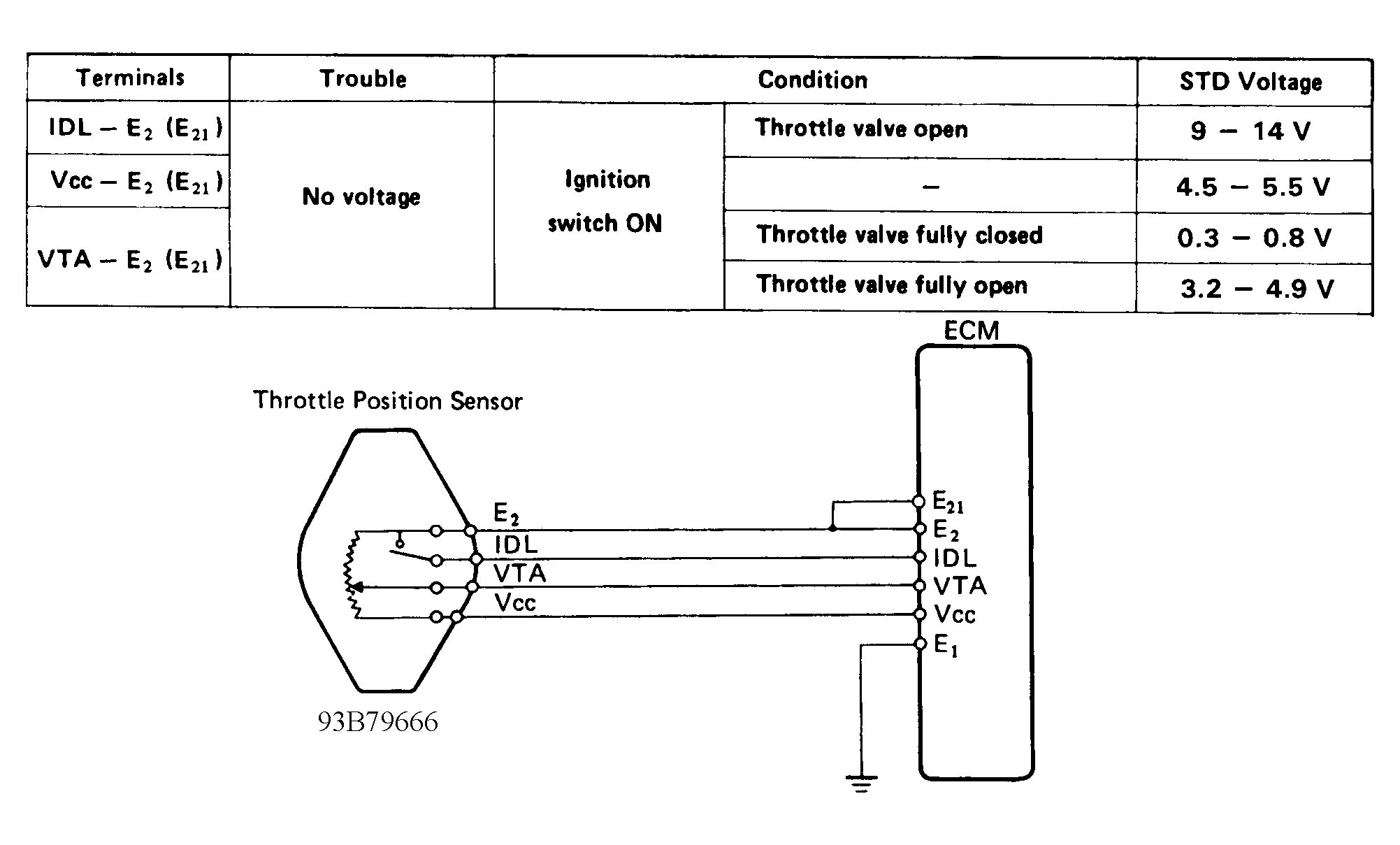

Fig 1: DTC 41 - Schematic

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

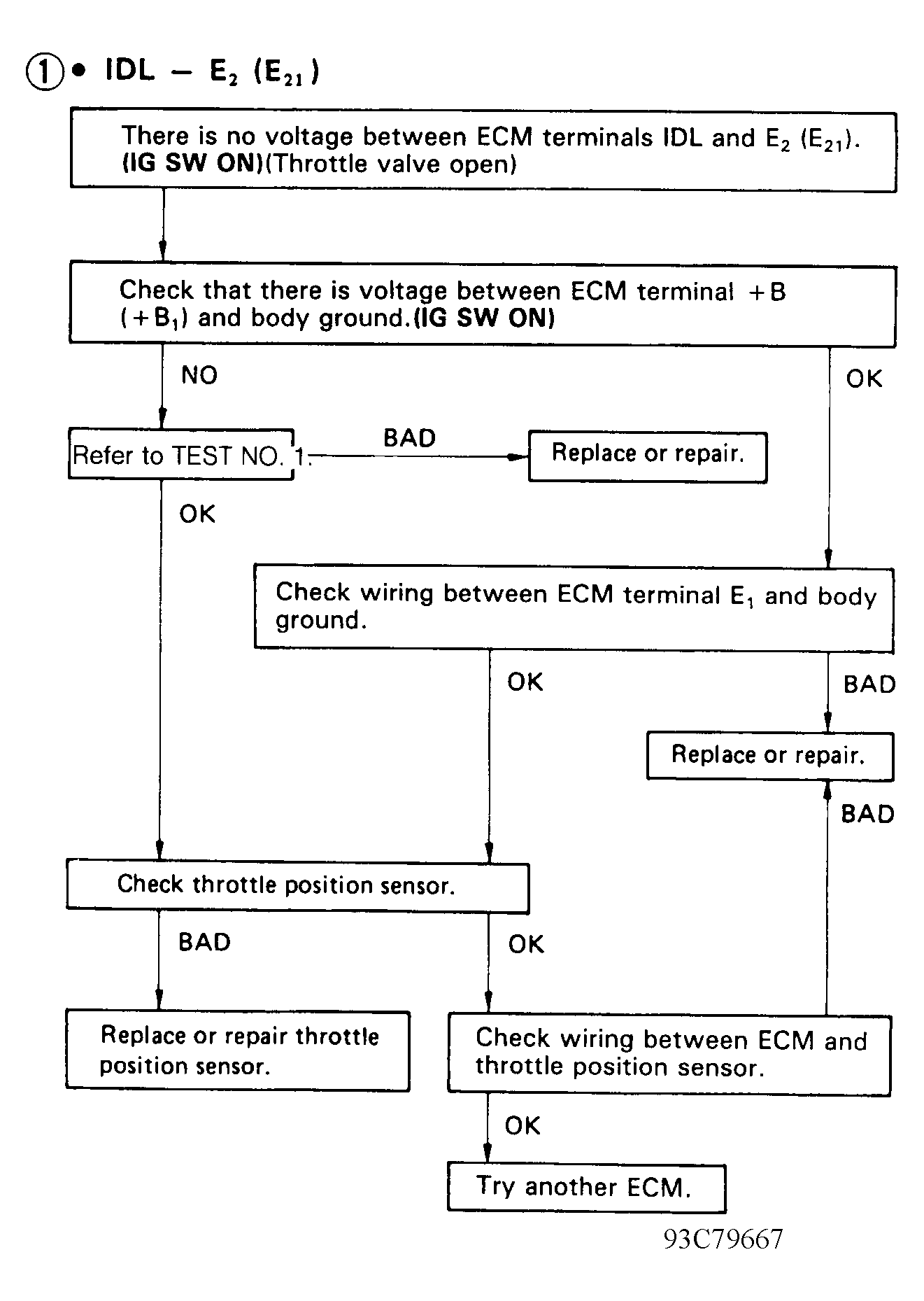

Fig 2: DTC 41 - Diagnostic Flowchart (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

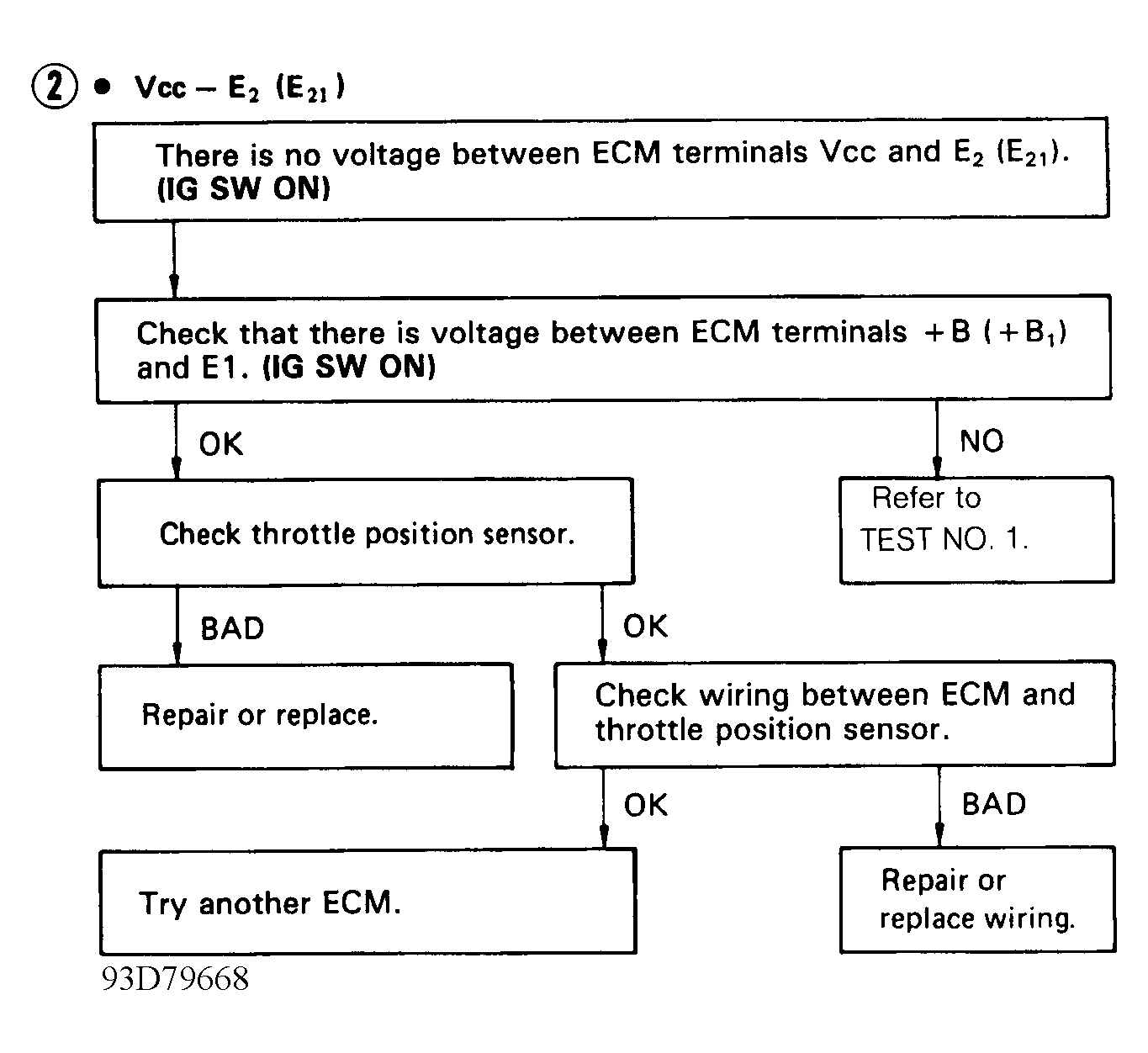

Fig 3: DTC 41 - Diagnostic Flowchart (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

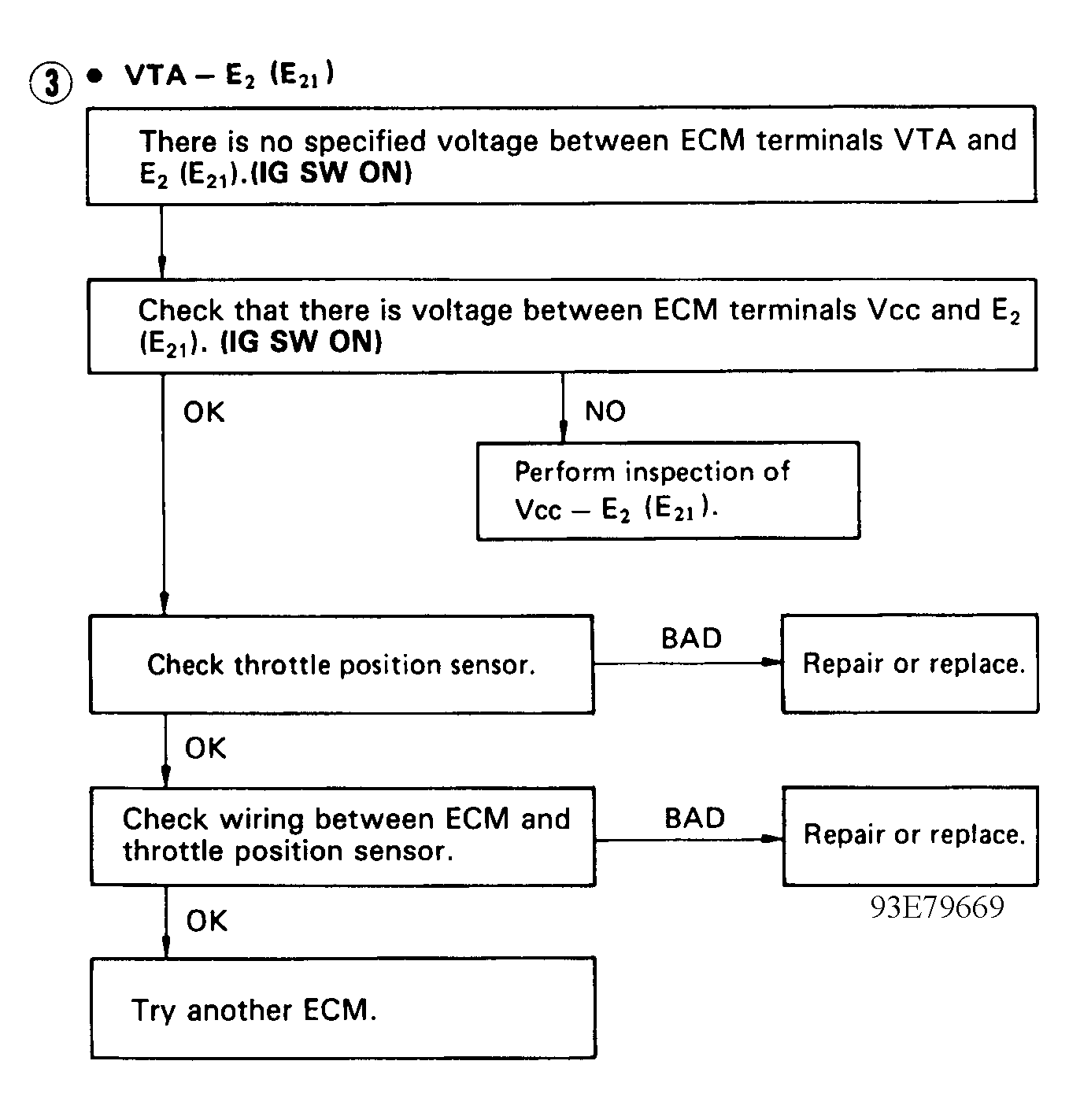

Fig 4: DTC 41 - Diagnostic Flowchart (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
