DTC 71 - EGR System Malfunction

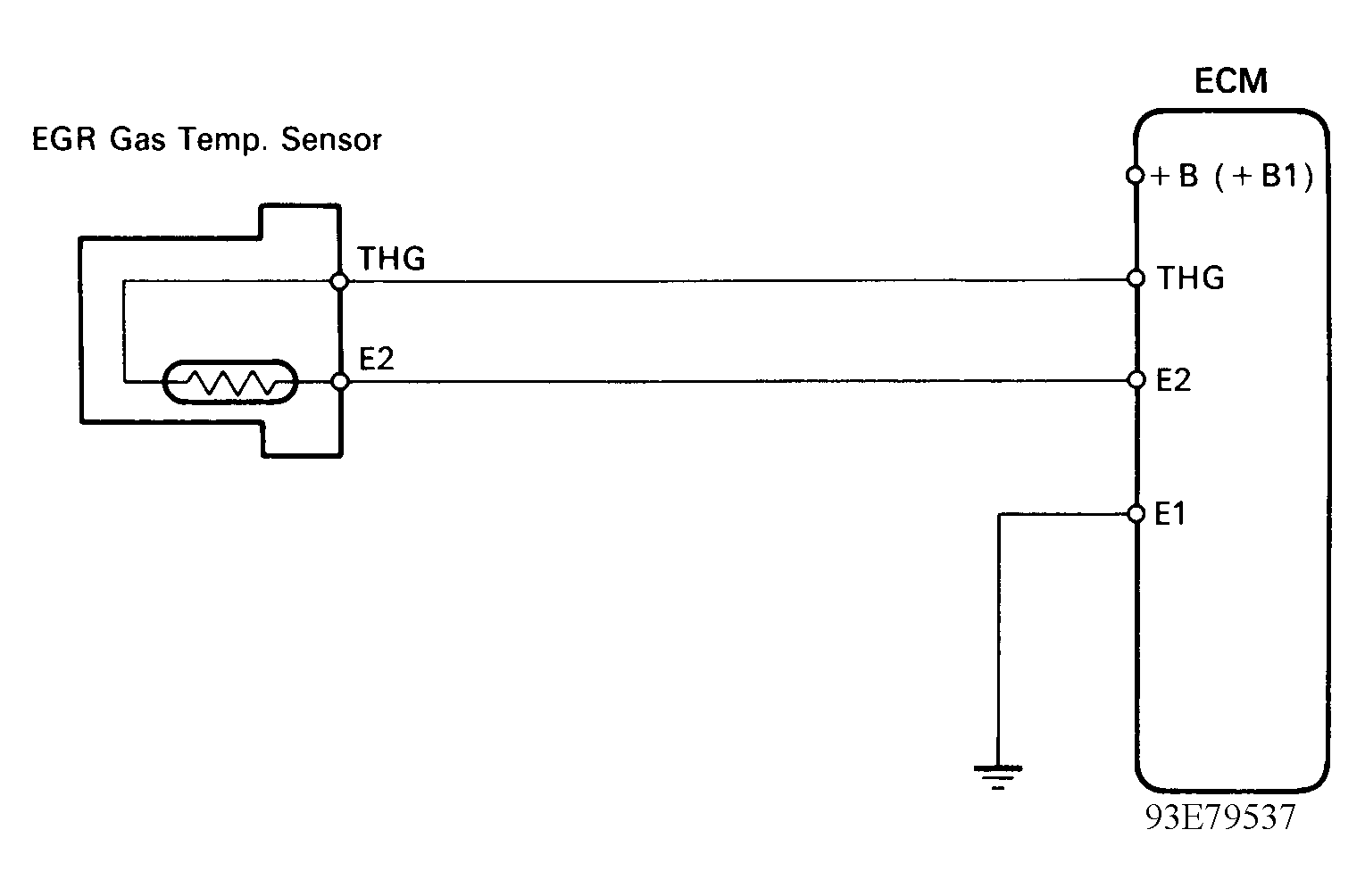

Fig 1: DTC 71 - Schematic
G93E79537Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: DTC 71 - Detection Driving Pattern
G94I44824Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

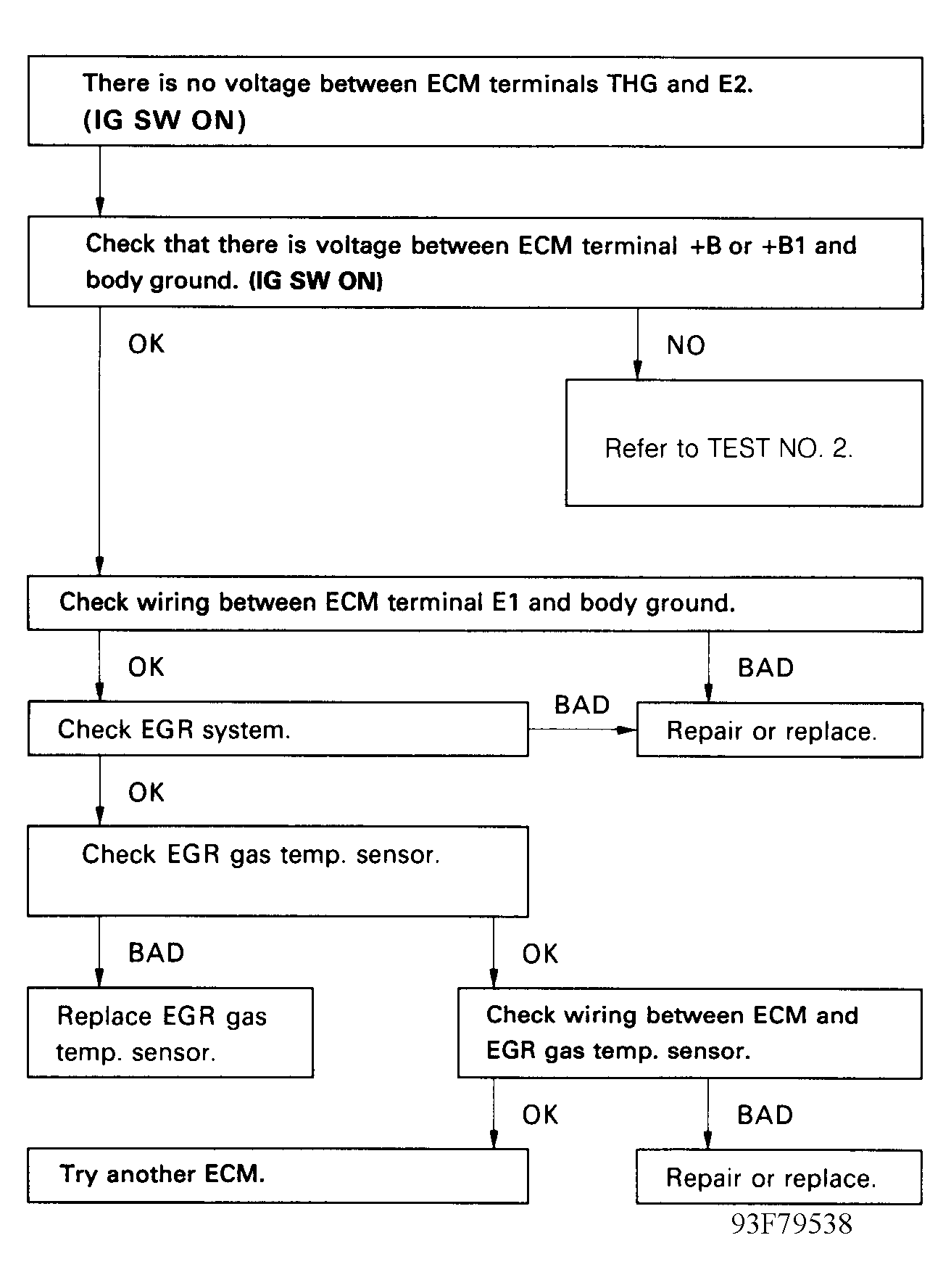

Fig 3: DTC 71 - Diagnostic Flowchart
G93F79538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
