DTC 71 - EGR System Malfunction

Fig 1: DTC 71 - Schematic
G93A79491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

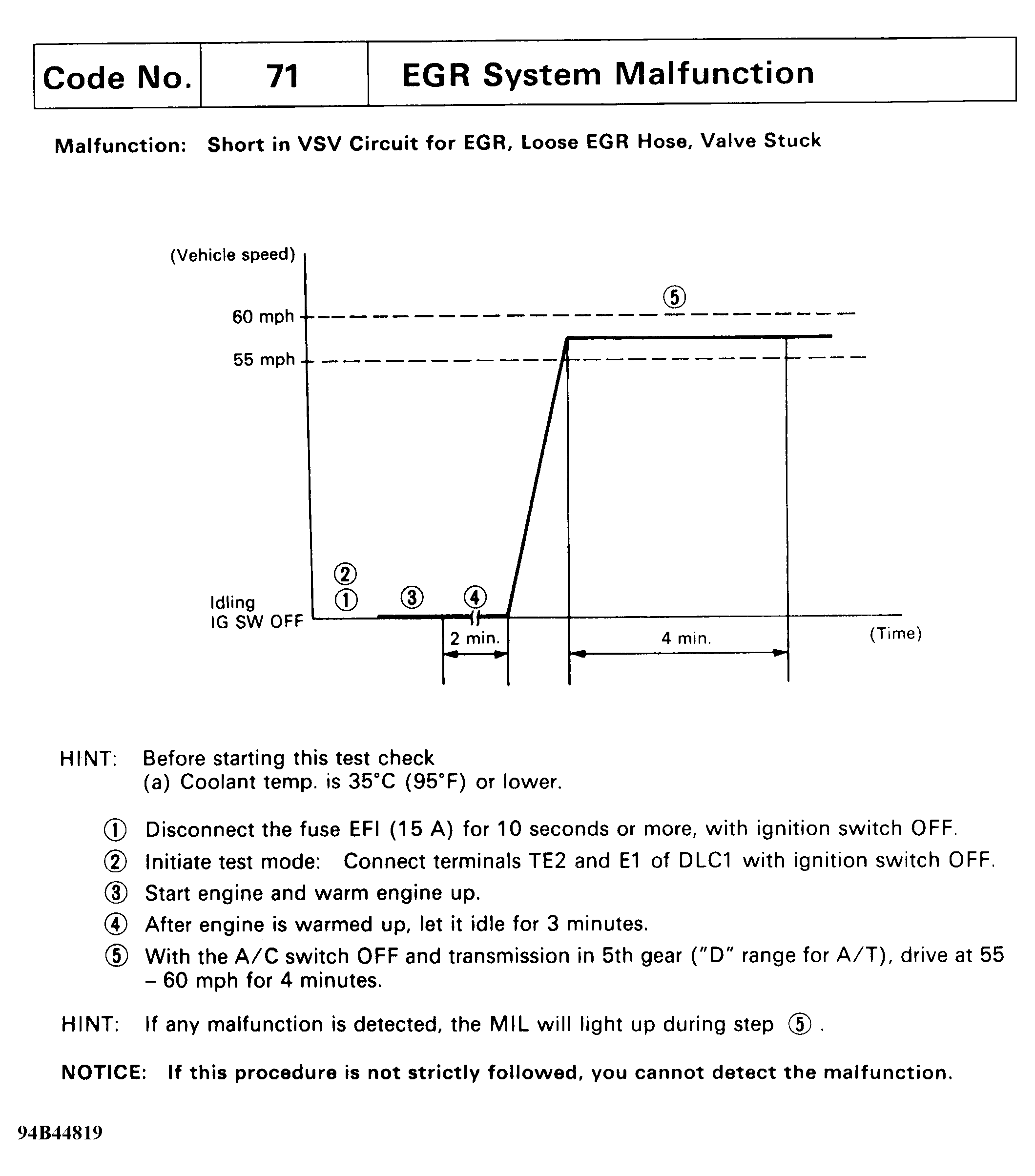

Fig 2: DTC 71 - Detection Driving Pattern
G94B44819Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 3: DTC 71 - Diagnostic Flowchart
G93B79492Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
