DTC 21, 27 - Oxygen Sensor Signal

NOTE: DTC 27 (sub-oxygen sensor) applies to 2.2L California models only.

Fig 1: DTC 21, 27 - Schematic (2.0L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: DTC 21, 27 - Schematic (2.2L)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

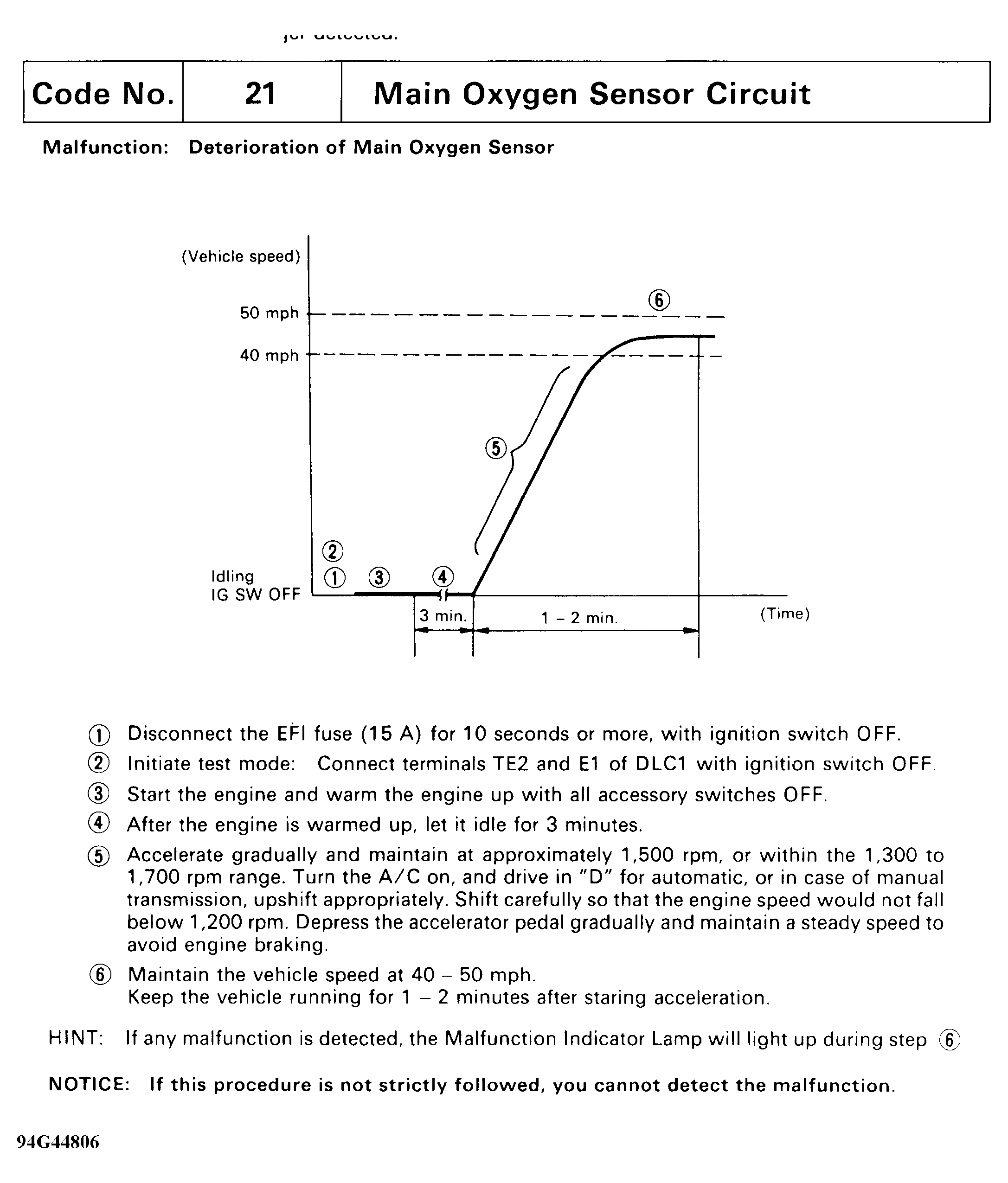

Fig 3: DTC 21, 27 - Detection Driving Pattern (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

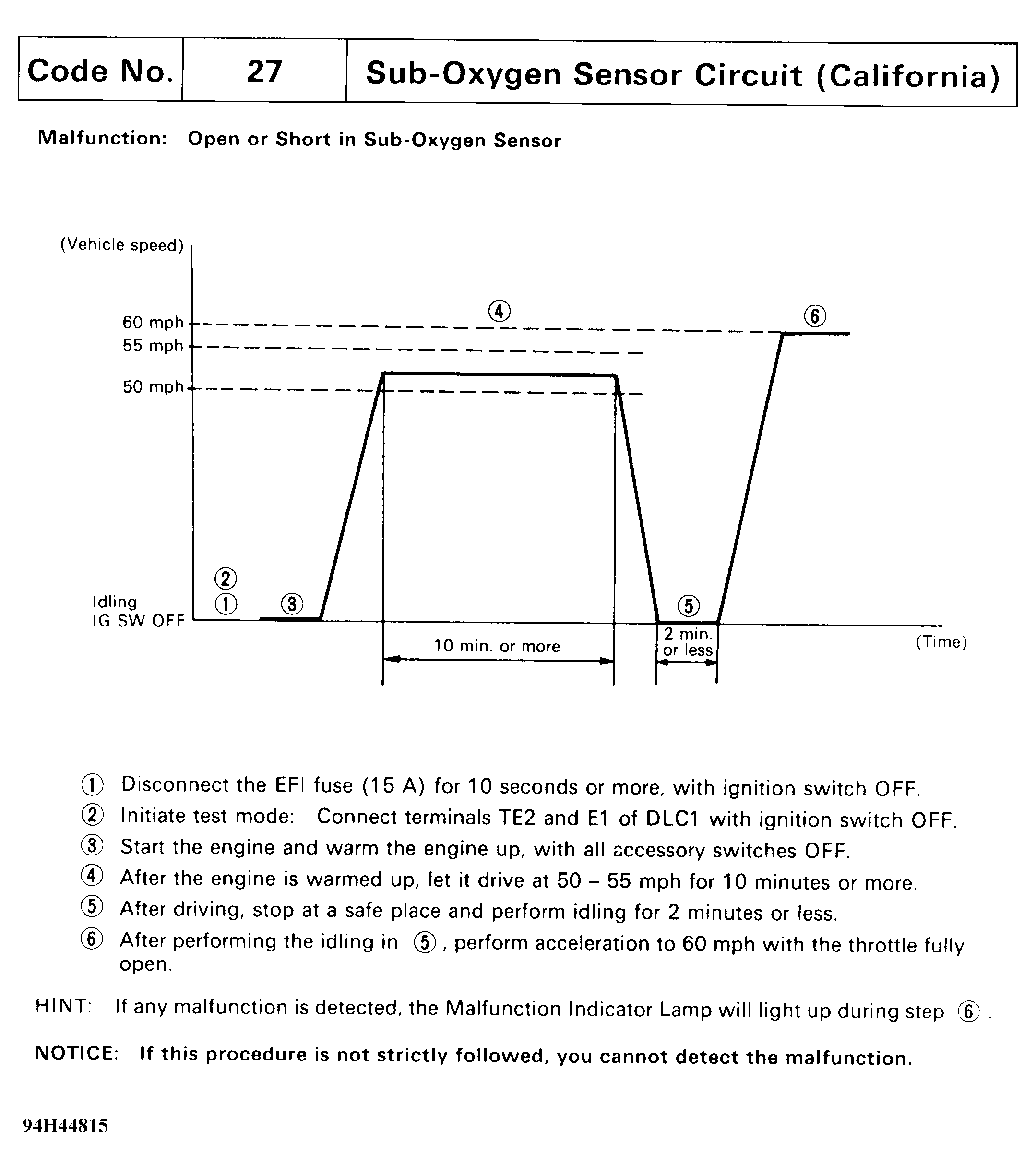

Fig 4: DTC 21, 27 - Detection Driving Pattern (1 Of 2)

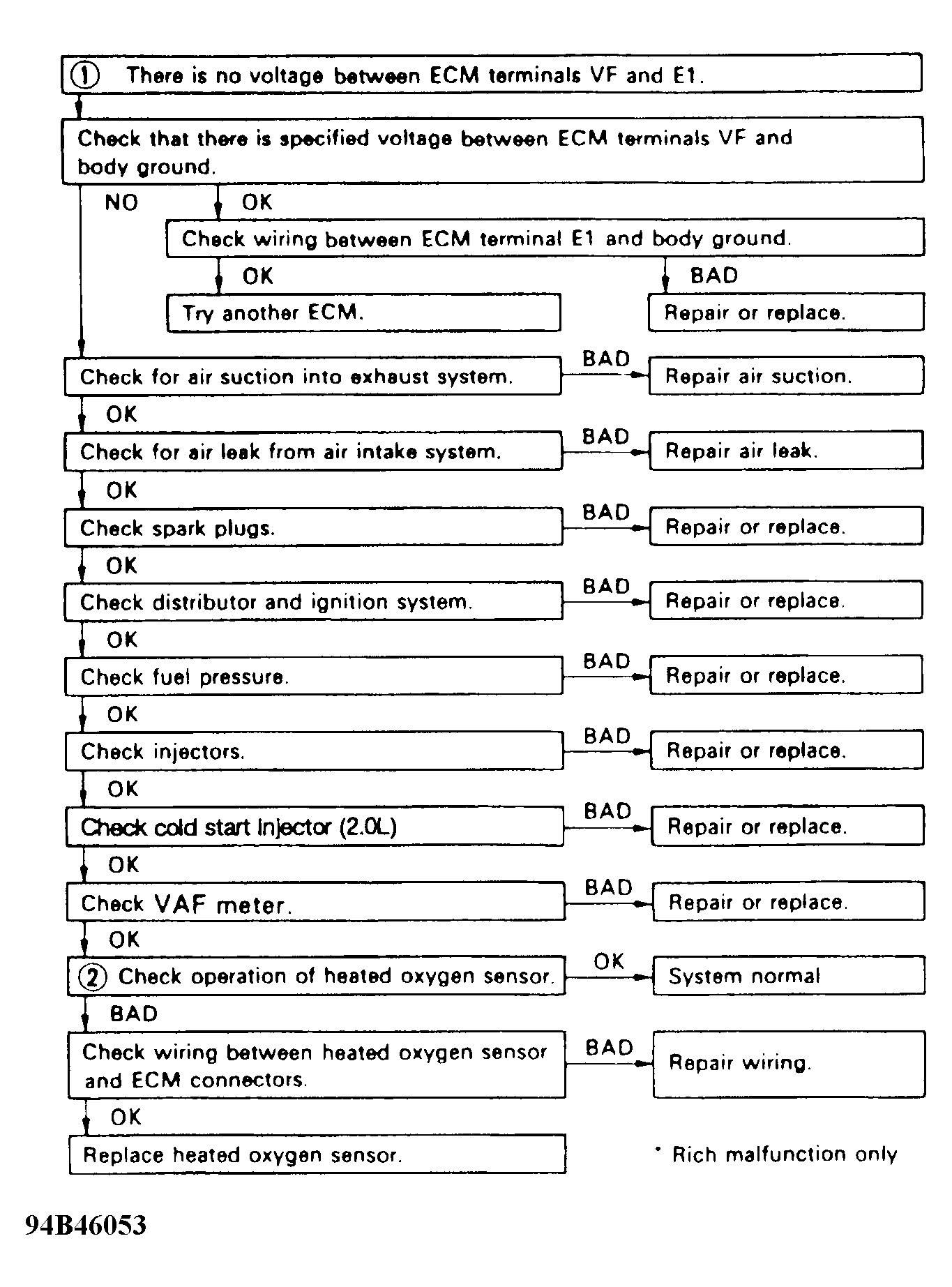

Fig 5: DTC 21, 27 - Diagnostic Flowchart
