Engine Compartment Main Relay Block Relay Identification
Engine Compartment Main Relay Block Relay Identification

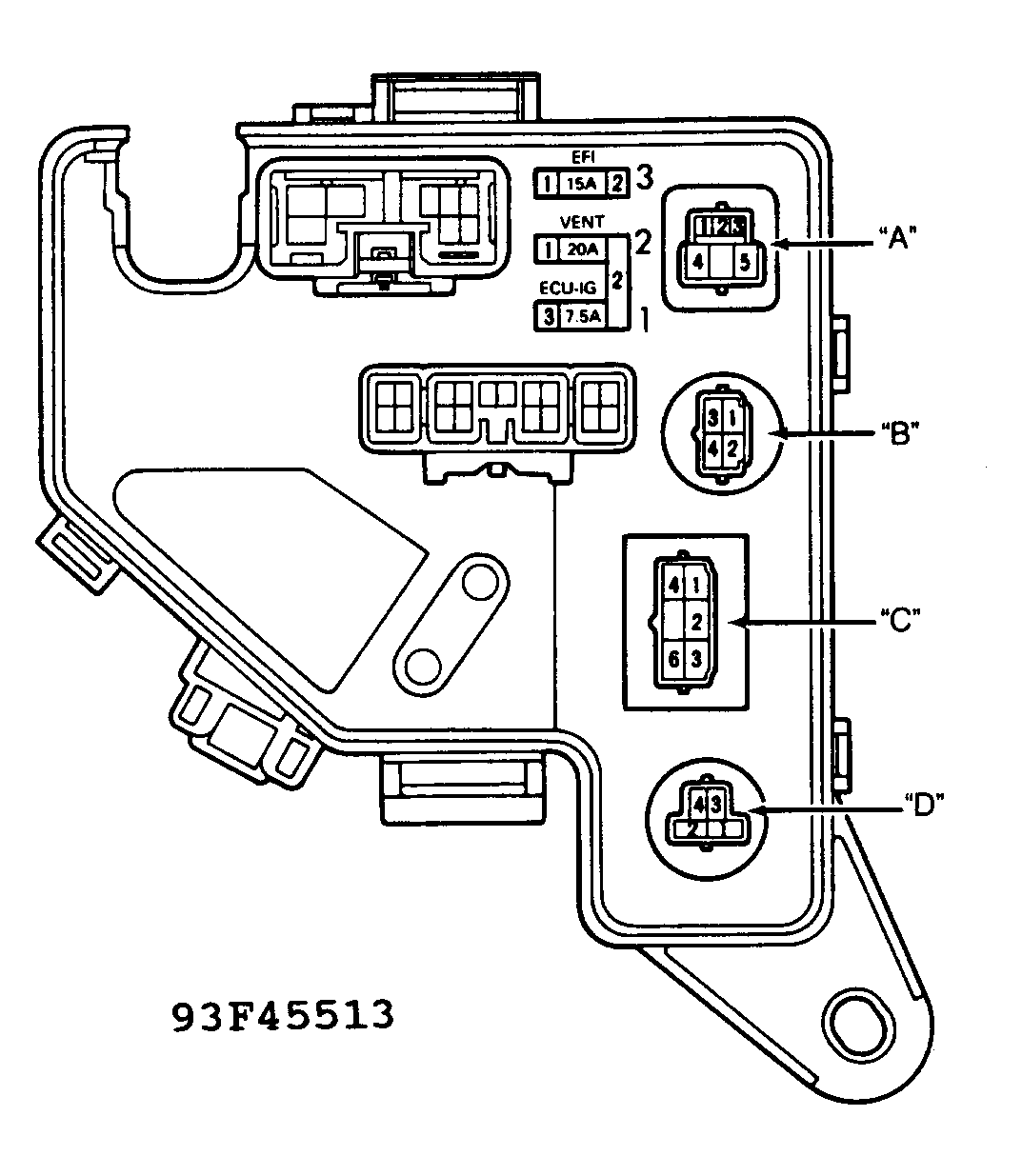

To identify relays, see
Figure
.
A - Ignition Main Relay
B - EFI Main Control
C - Circuit Opening Relay
D - Cooling Fan Relay
