DTC 24 - Intake Air Temperature Sensor Signal

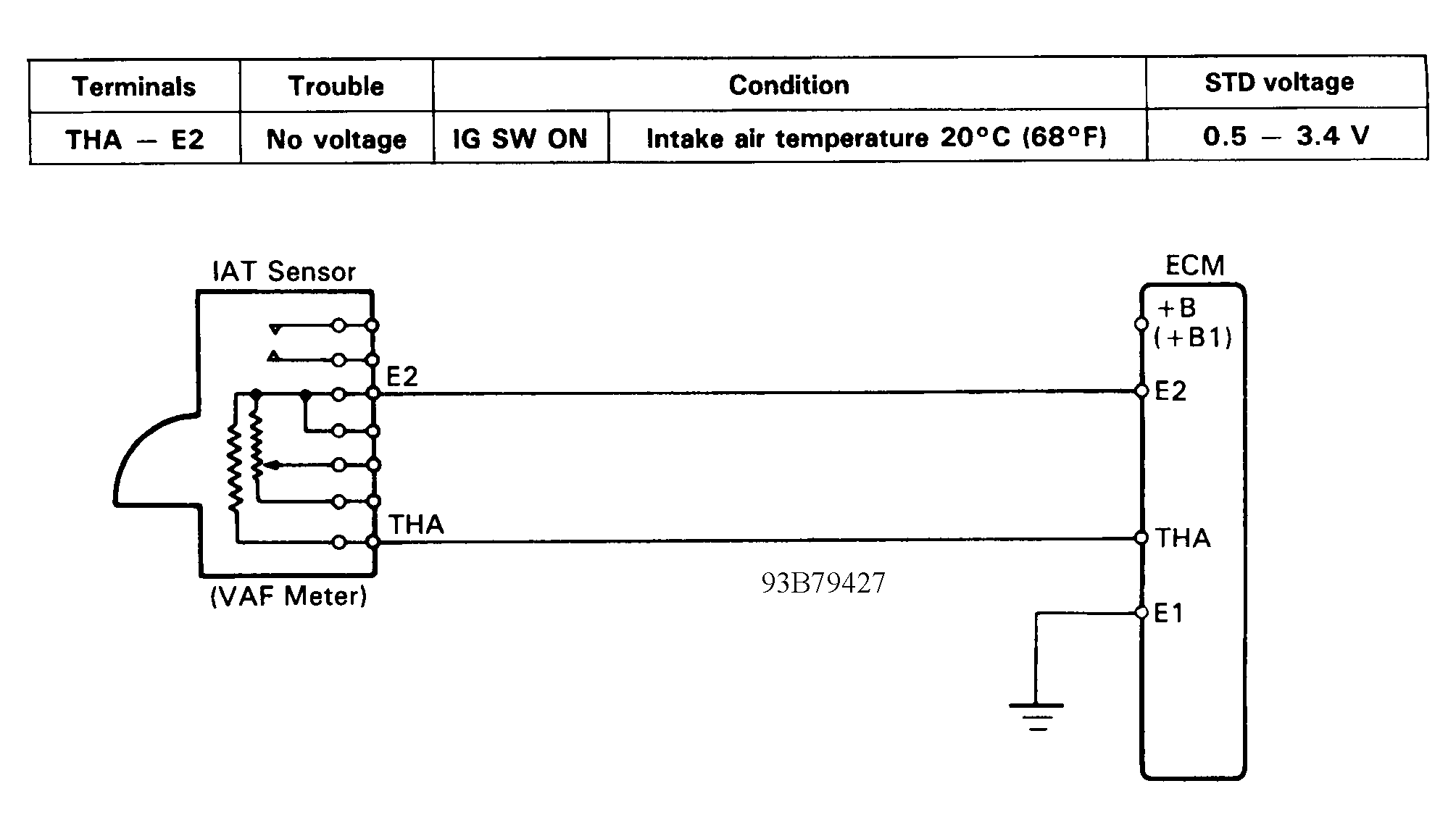

Fig 1: DTC 24 - Schematic
G93B79427Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

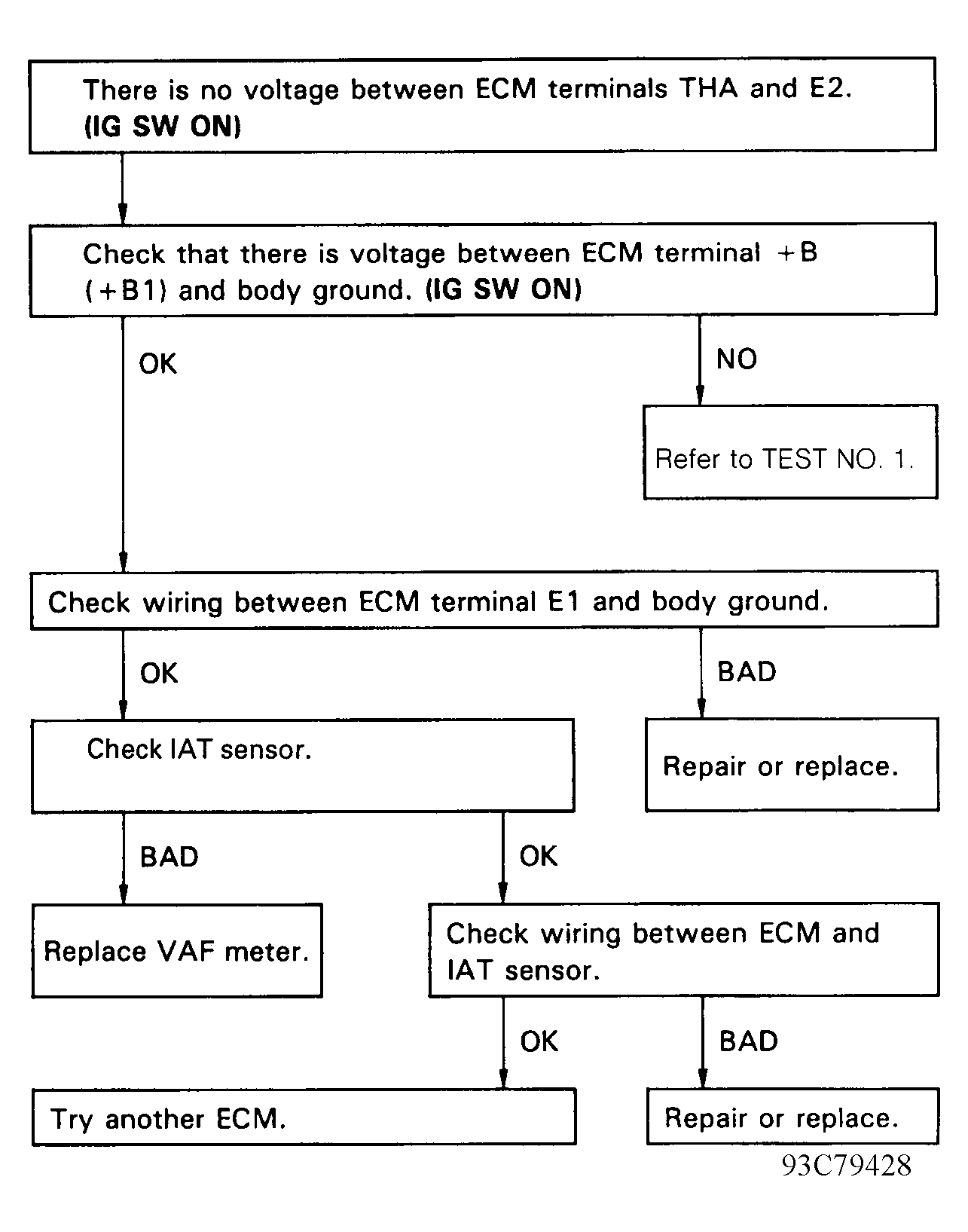

Fig 2: DTC 24 - Diagnostic Flowchart
G93C79428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
