Master Cylinder Push Rod

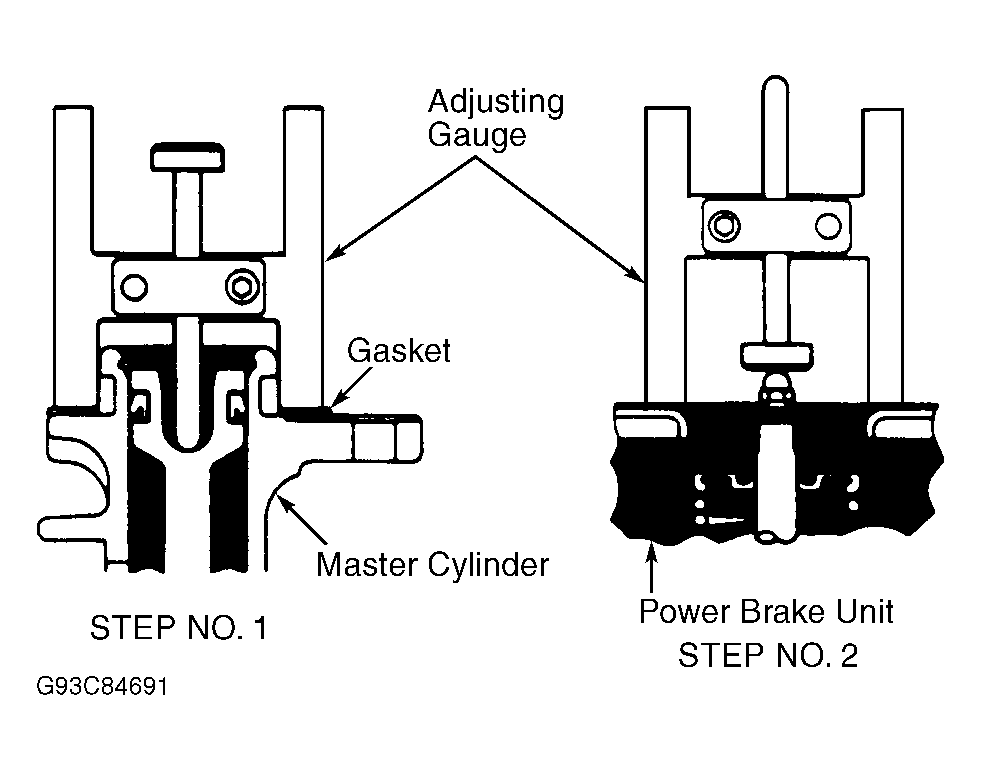

- Install Adjusting Gauge (09737-00010) on master cylinder with master cylinder gasket in place. Lower adjusting gauge pin until pin slightly touches master cylinder piston. See Fig 1 (STEP No. 1). Turn adjusting gauge upside-down and install on power brake unit.
- Measure clearance between power brake unit push rod and adjusting gauge pin head. See Fig 1 (STEP No. 2). Measured clearance should be zero. If clearance is not zero, adjust power brake unit push rod length until push rod lightly touches adjusting gauge pin head.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
