VIN Code Id Explanation

Numbers preceding the explanations in the legend below refer to the sequence of characters as listed on VIN identification label. See VIN example below.

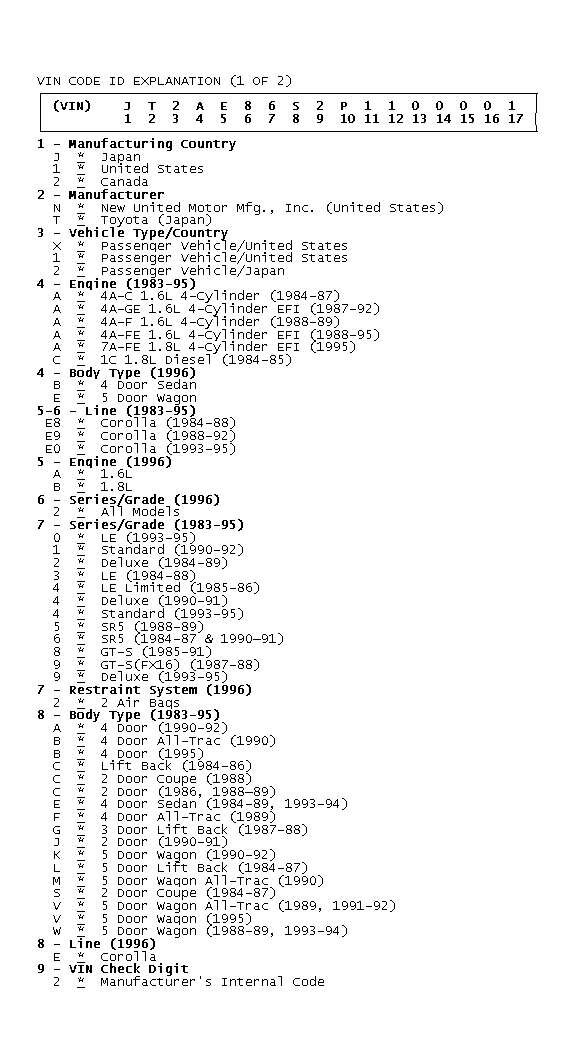

Fig 1: VIN CODE ID EXPLANATION (1 OF 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: VIN CODE ID EXPLANATION (2 OF 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
