ECM P0WER Source Circuit Check: Notes

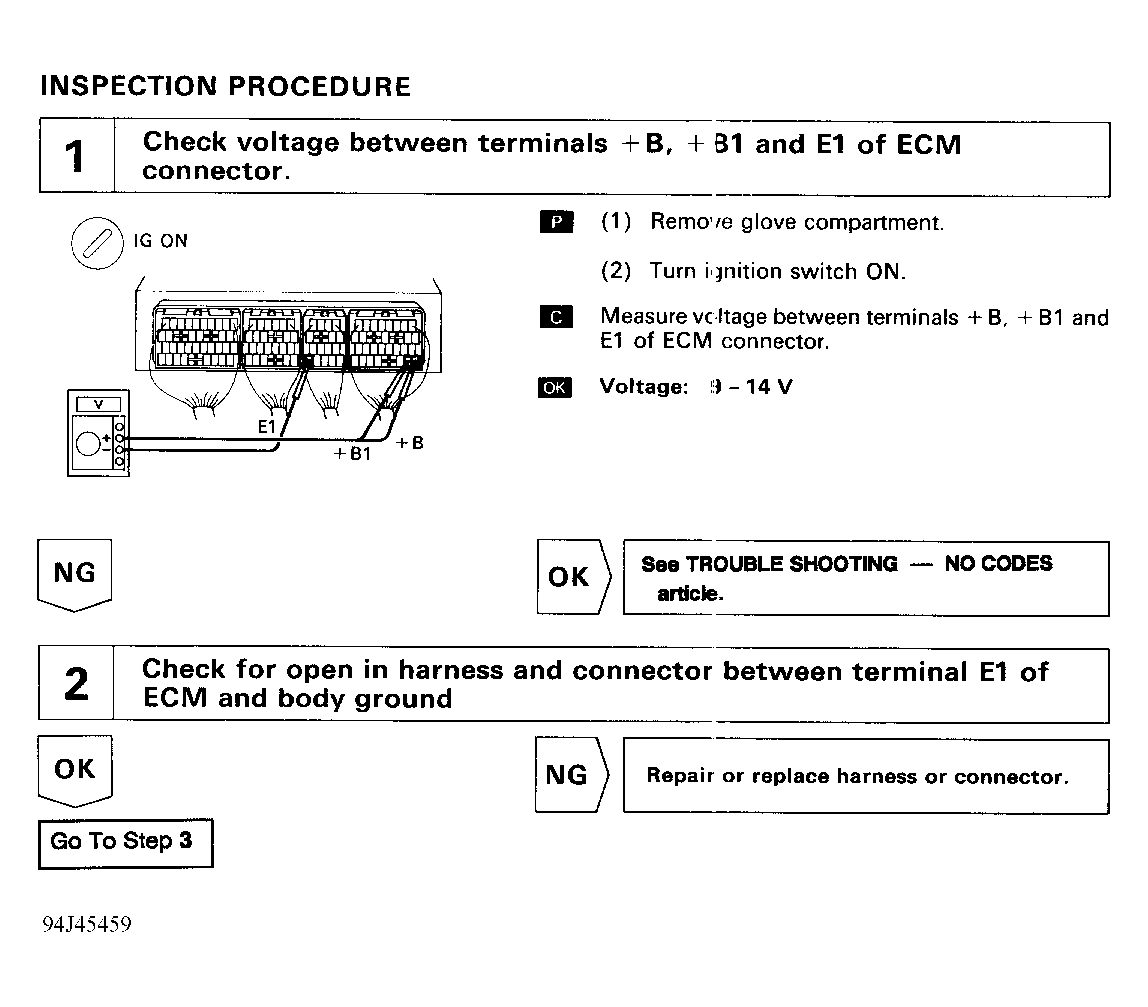

Fig 1: ECM Power Source Circuit Check - Diagnostic Flowchart (1 Of 3)
G94J45459Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

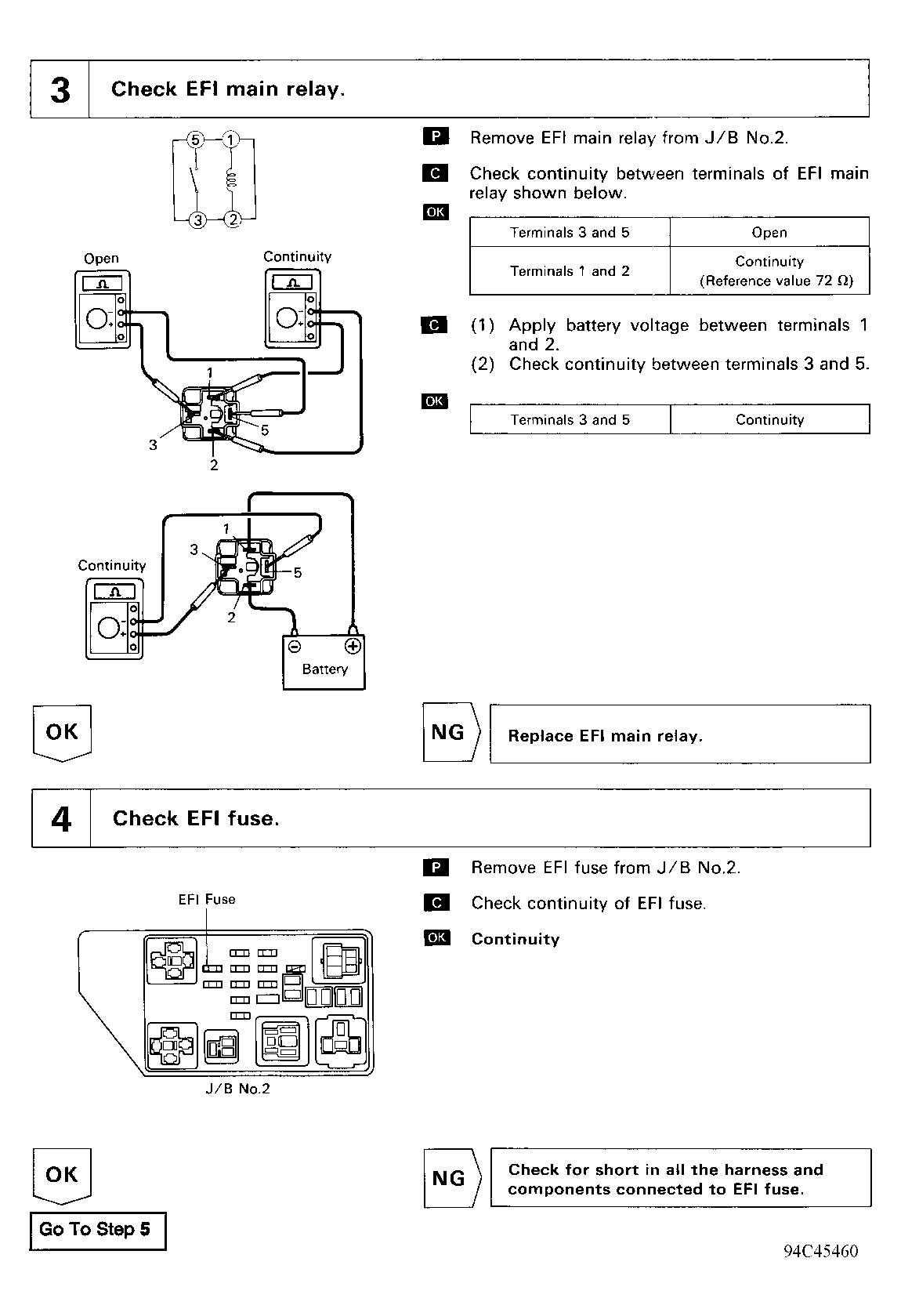

Fig 2: ECM Power Source Circuit Check - Diagnostic Flowchart (2 Of 3)
G94C45460Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

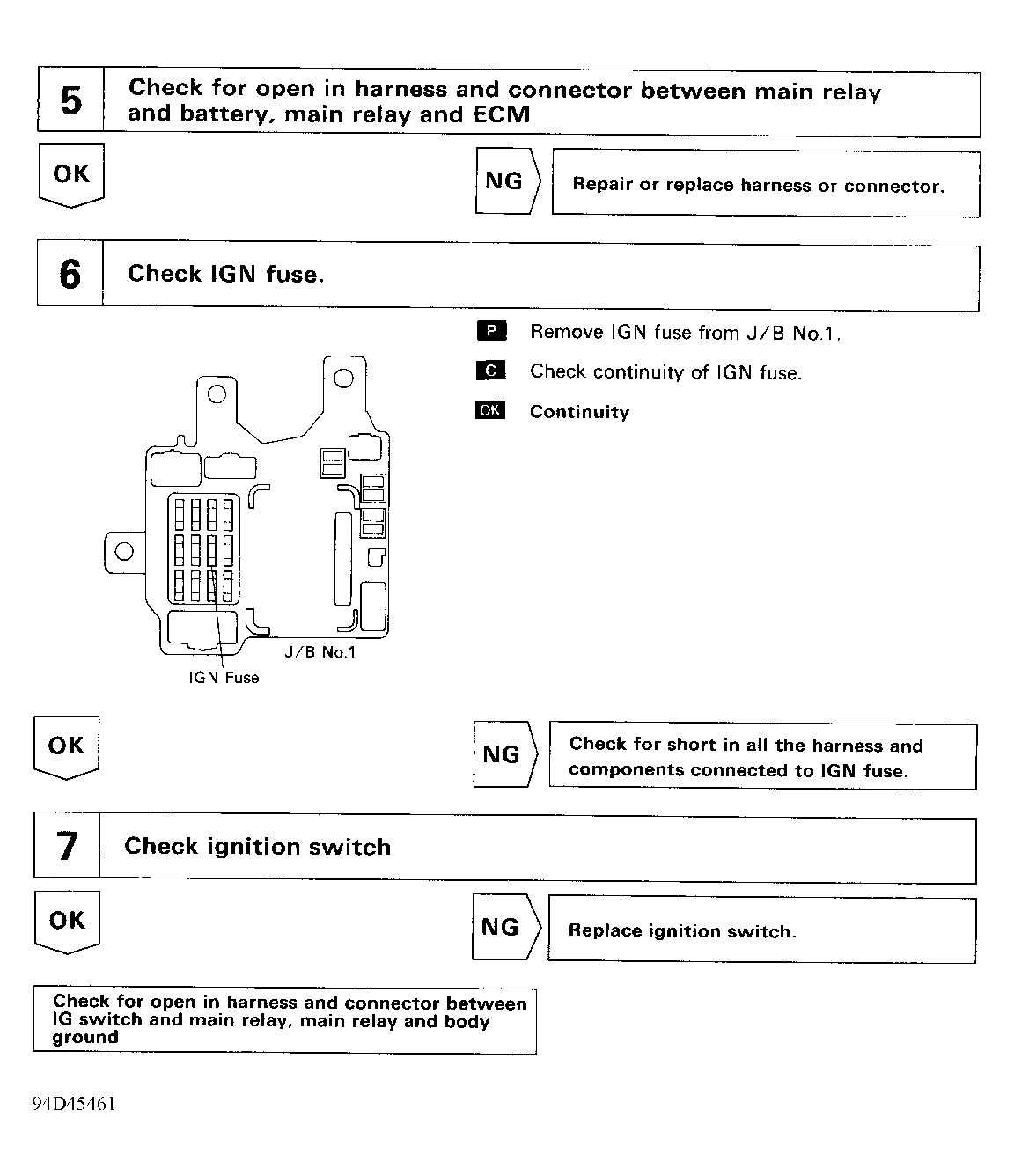

Fig 3: ECM Power Source Circuit Check - Diagnostic Flowchart (3 Of 3)
G94D45461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
