ECM Back-Up Power Source Circuit Check

Battery positive voltage is supplied to BATT terminal of ECM even when ignition switch is turned off for use by the diagnostic trouble code memory, air/fuel ratio adaptive control value memory, etc.

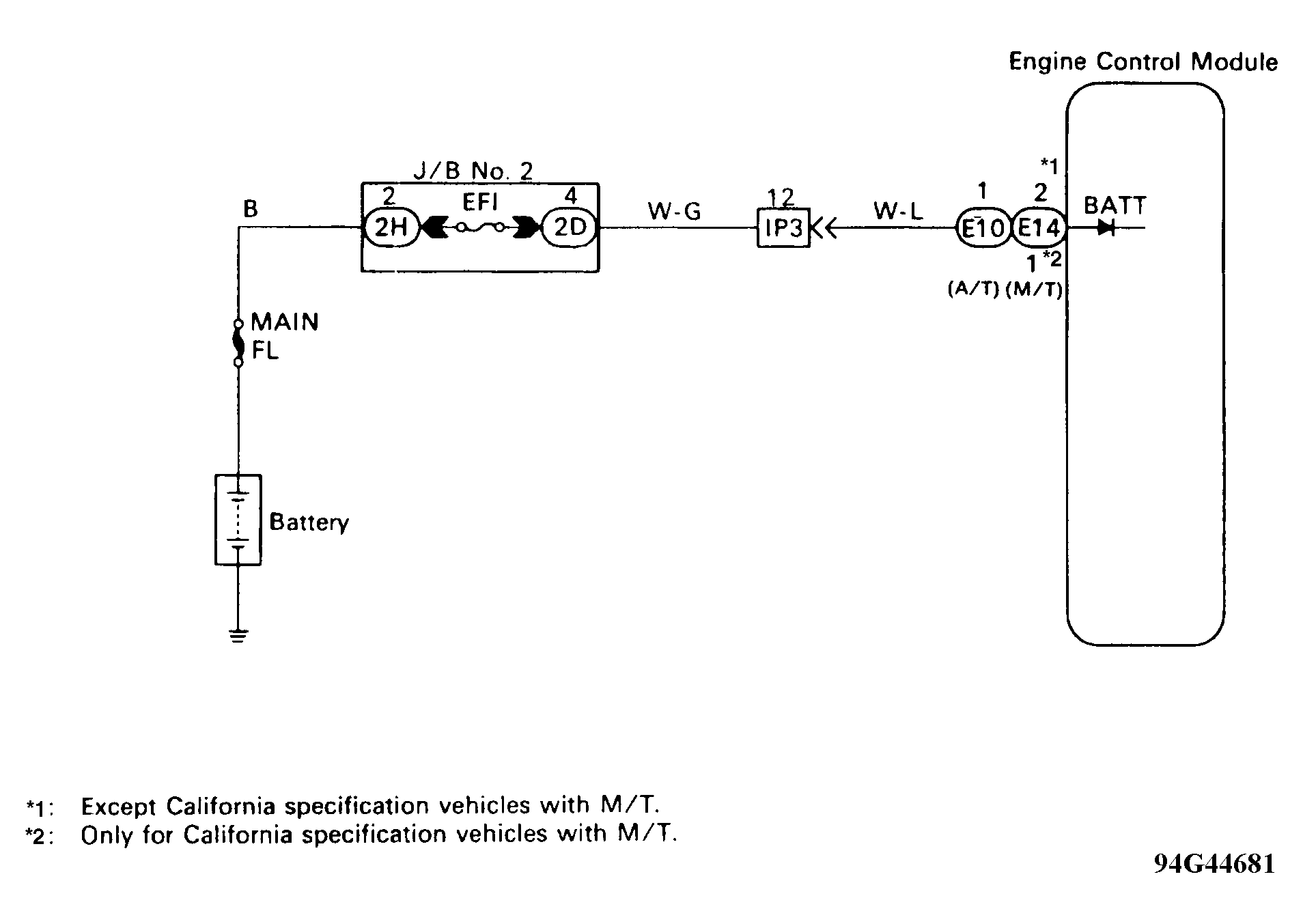

Fig 1: ECM Back-Up Power Source Circuit Check - Schematic
G94G44681Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

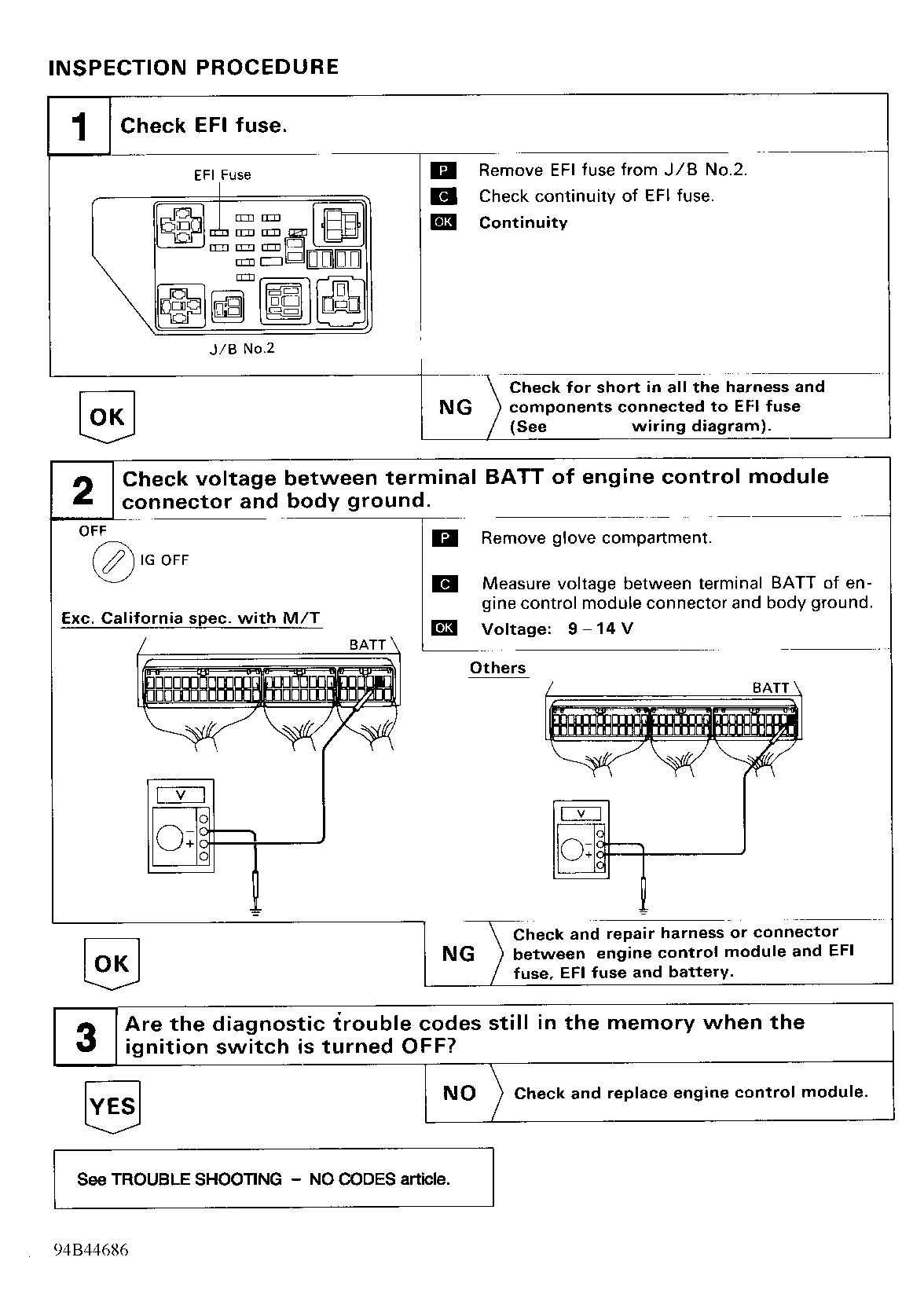

Fig 2: ECM Back-Up Power Source Circuit Check - Diagnostic Flowchart
G94B44686Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
