Diagnostic Circuit Check

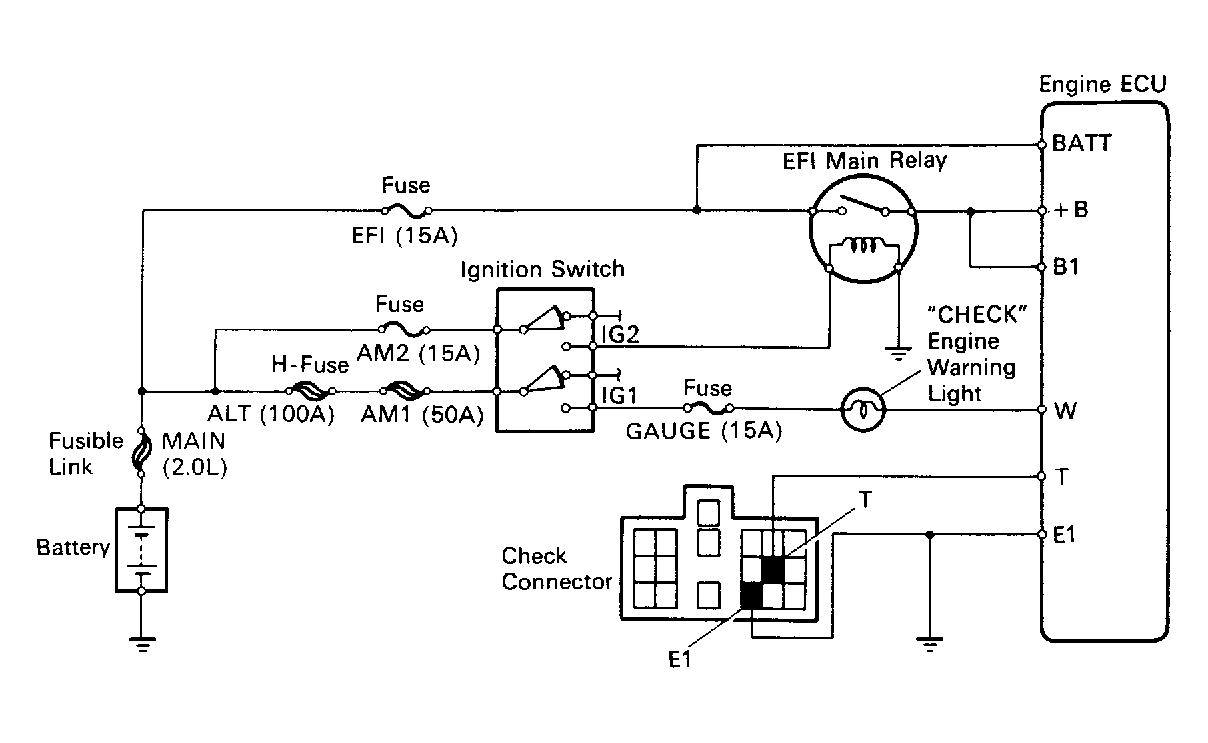

Fig 1: Diagnostic Circuit Check Schematic
G91G18149Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

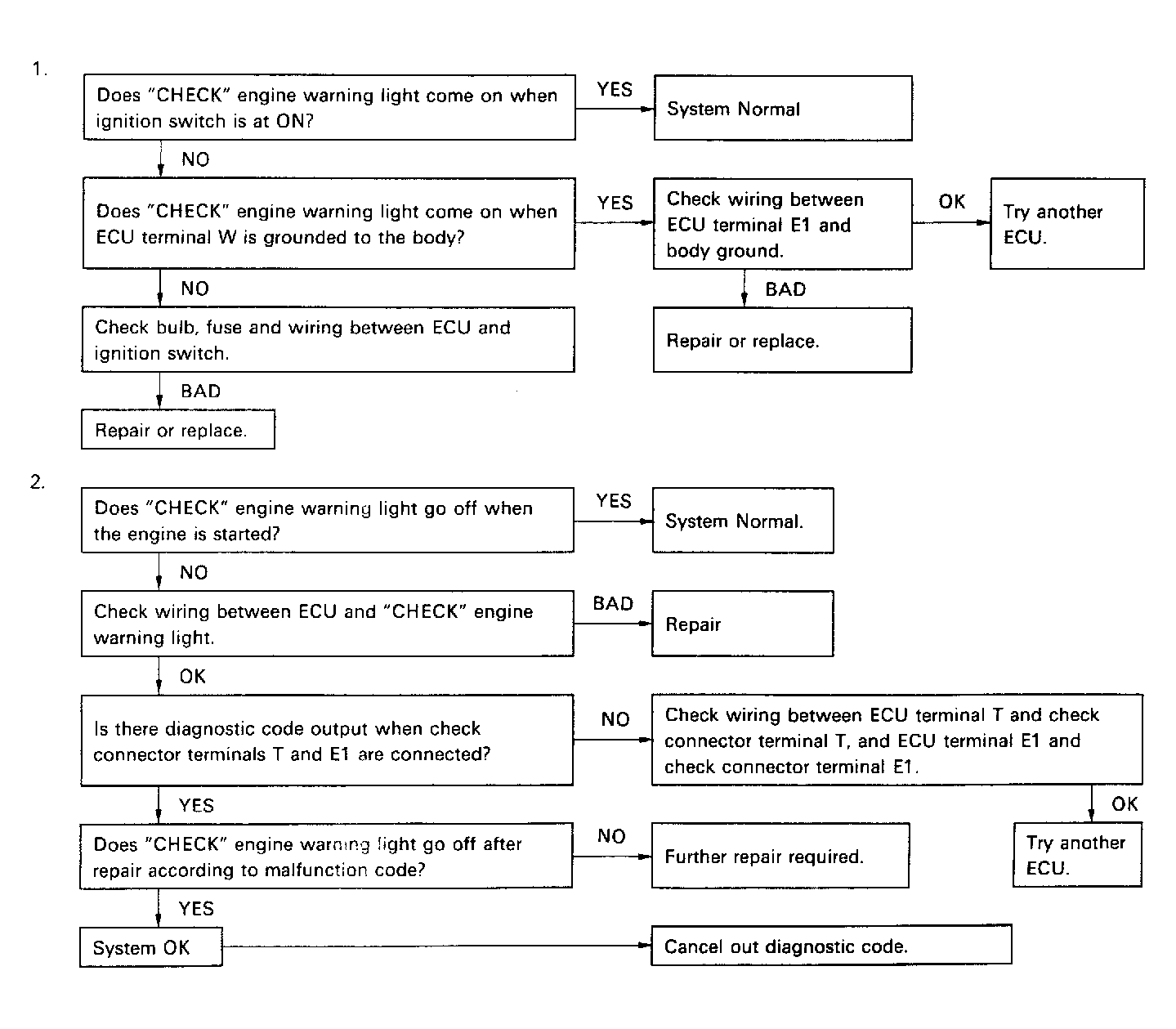

Fig 2: Diagnostic Circuit Check Flow Chart
G91A18150Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
