Diagnostic Circuit Check

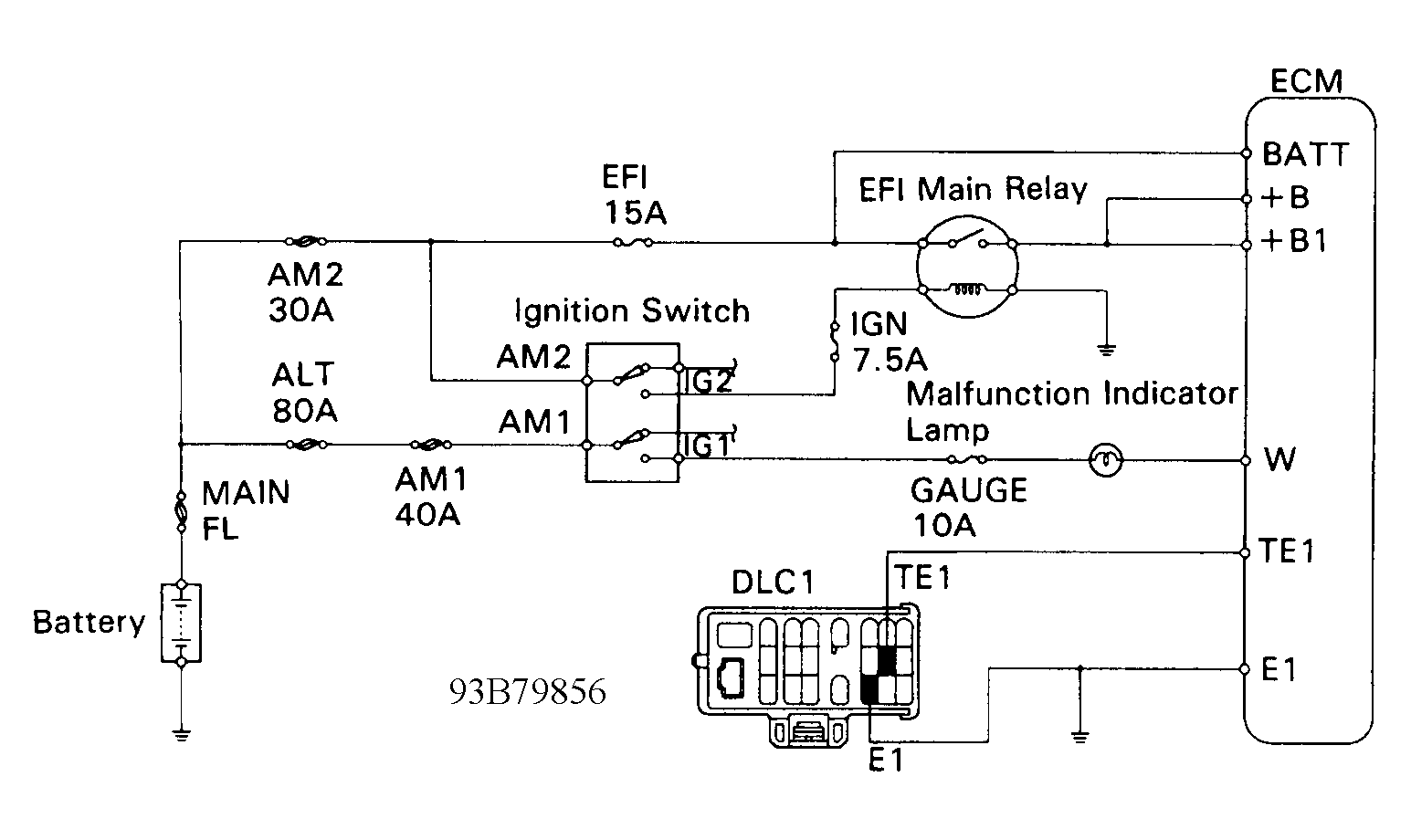

Fig 1: Diagnostic Circuit Check - Schematic
G93B79856Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

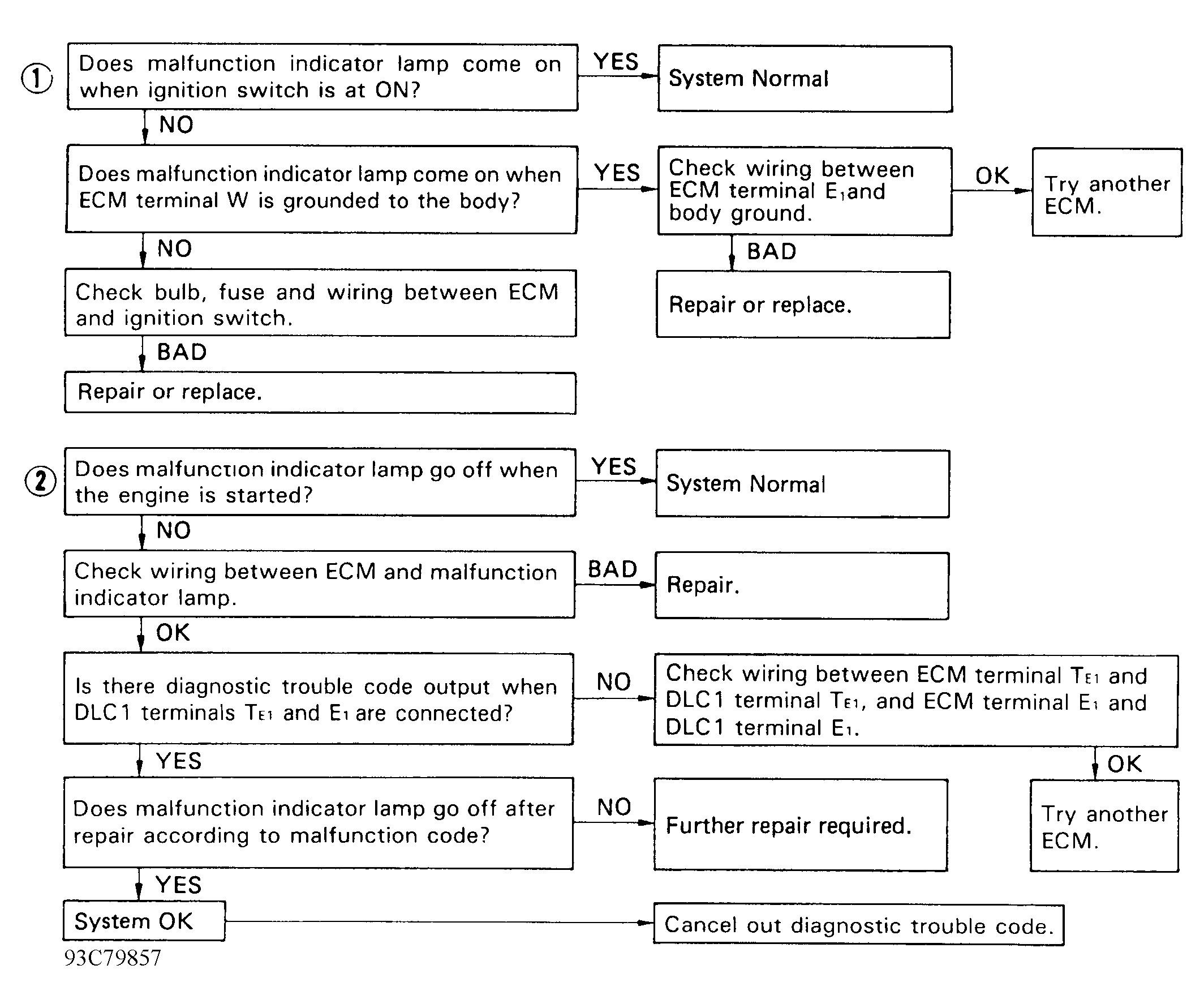

Fig 2: Diagnostic Circuit Check - Diagnostic Flowchart
G93C79857Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
