DTC 71 - EGR System Malfunction

Fig 1: DTC 71 - Schematic
G93I79879Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

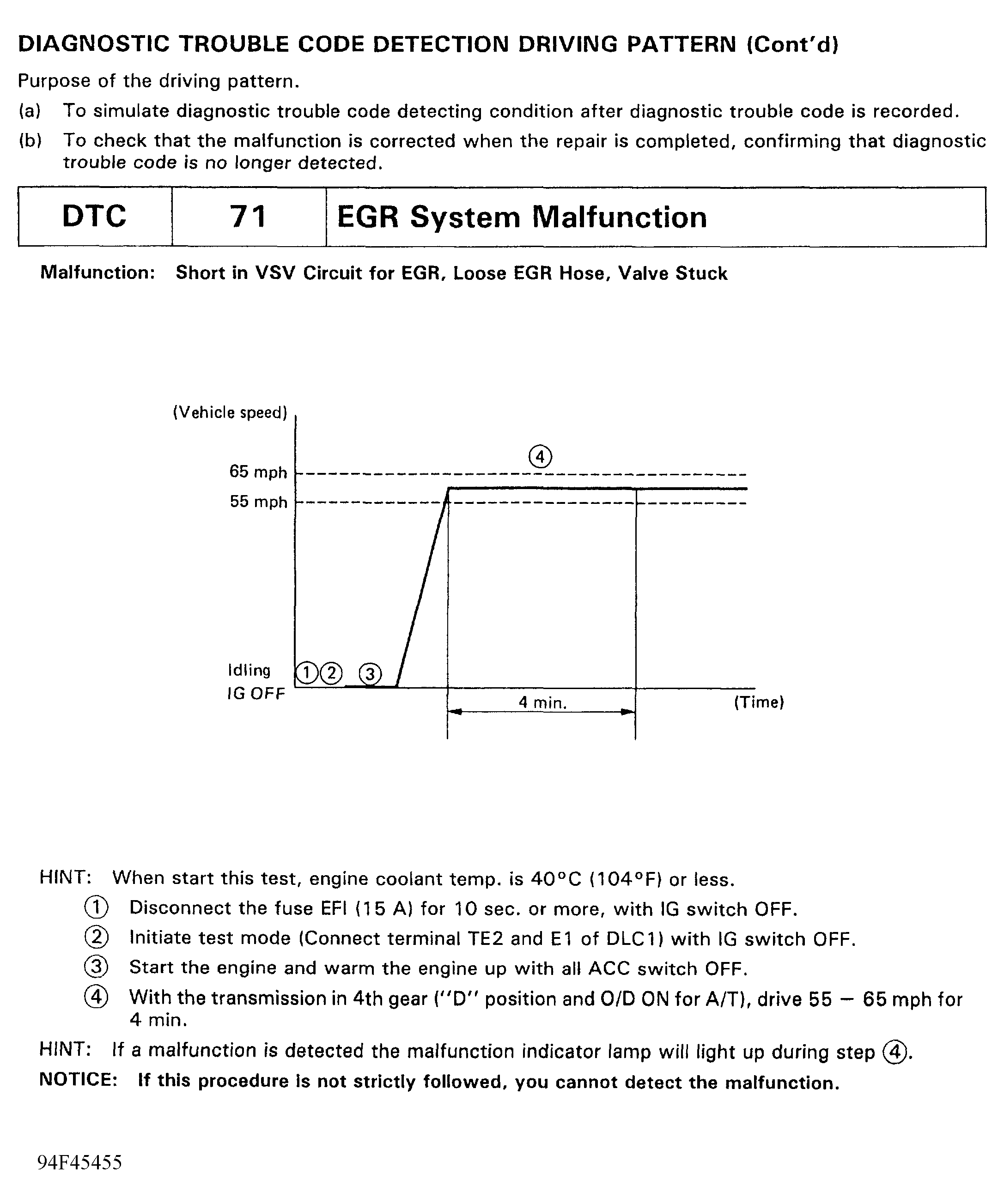

Fig 2: DTC 71 - Driving Detection Pattern
G94F45455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

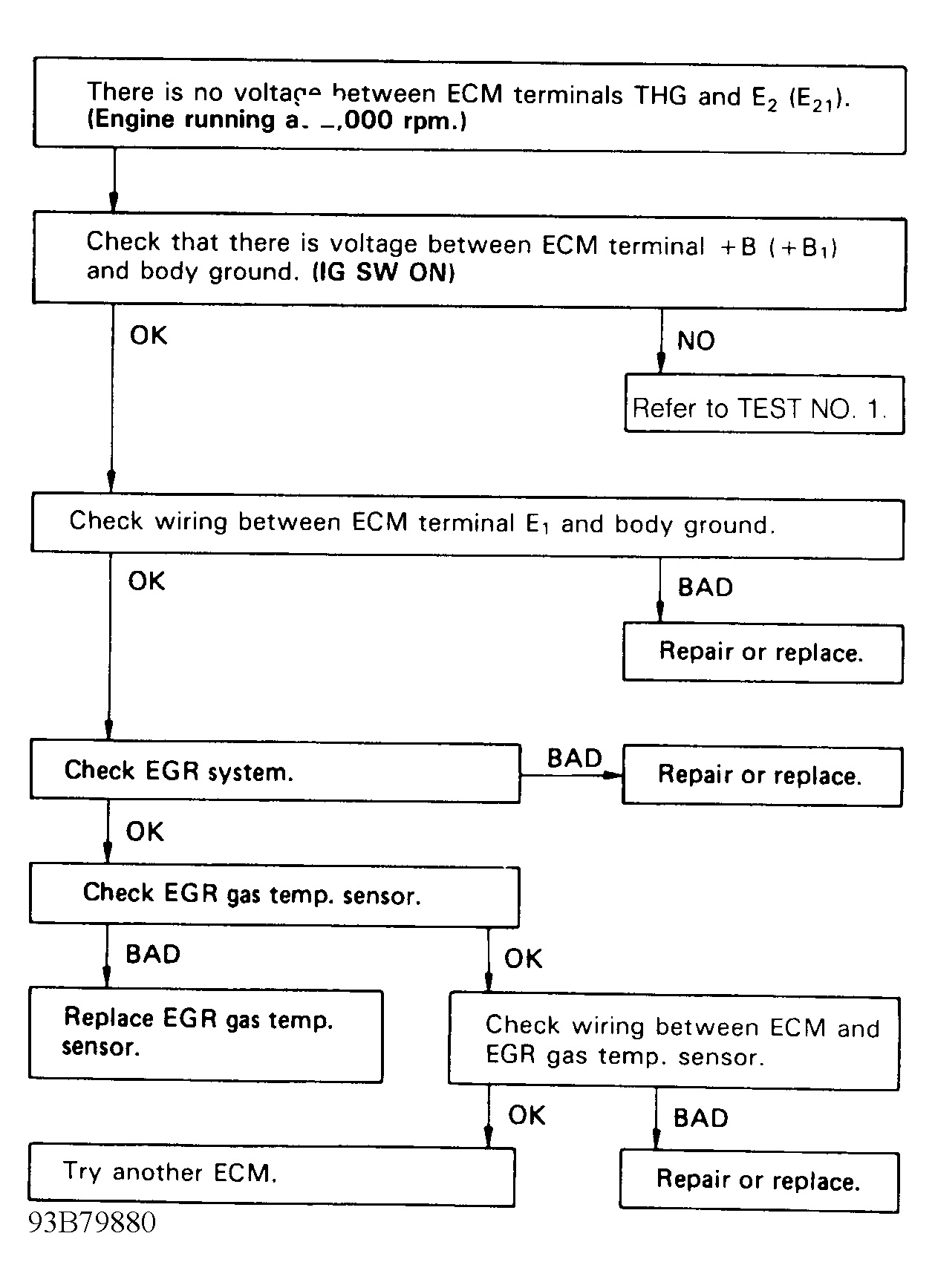

Fig 3: DTC 71 - Diagnostic Flowchart
G93B79880Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
